Pioneer® Quantum Ultra™ 24,000 BTU 20 SEER2 230V Floor/Ceiling/Low-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set

SKU UYT024GLSI24RL-10
Authorized Dealer Official
100% Authentic Guarantee
In stock, ready to ship

Fast shipping icon FREE EXPRESS SHIPPING: Process orders in 1 business day

Returns icon STRESS FREE RETURNS: 2 Year Returns

VIP icon PREMIUM QUALITY: Top Tier Products, Even Better Customer Care

Warranty icon 5 YEAR WARRANTY: We Believe In Our Products & Our Team

Professional installation icon PROFESSIONAL INSTALLATION: Get connected with certified, licensed installers in your area - Request installer quotes

Save $926.00
Original Price $3,099.00
Current Price $2,173.00

Notify me when back in stock

Estimated Shipping Widget will be displayed here!

Sticky Add to Cart Button
Summary

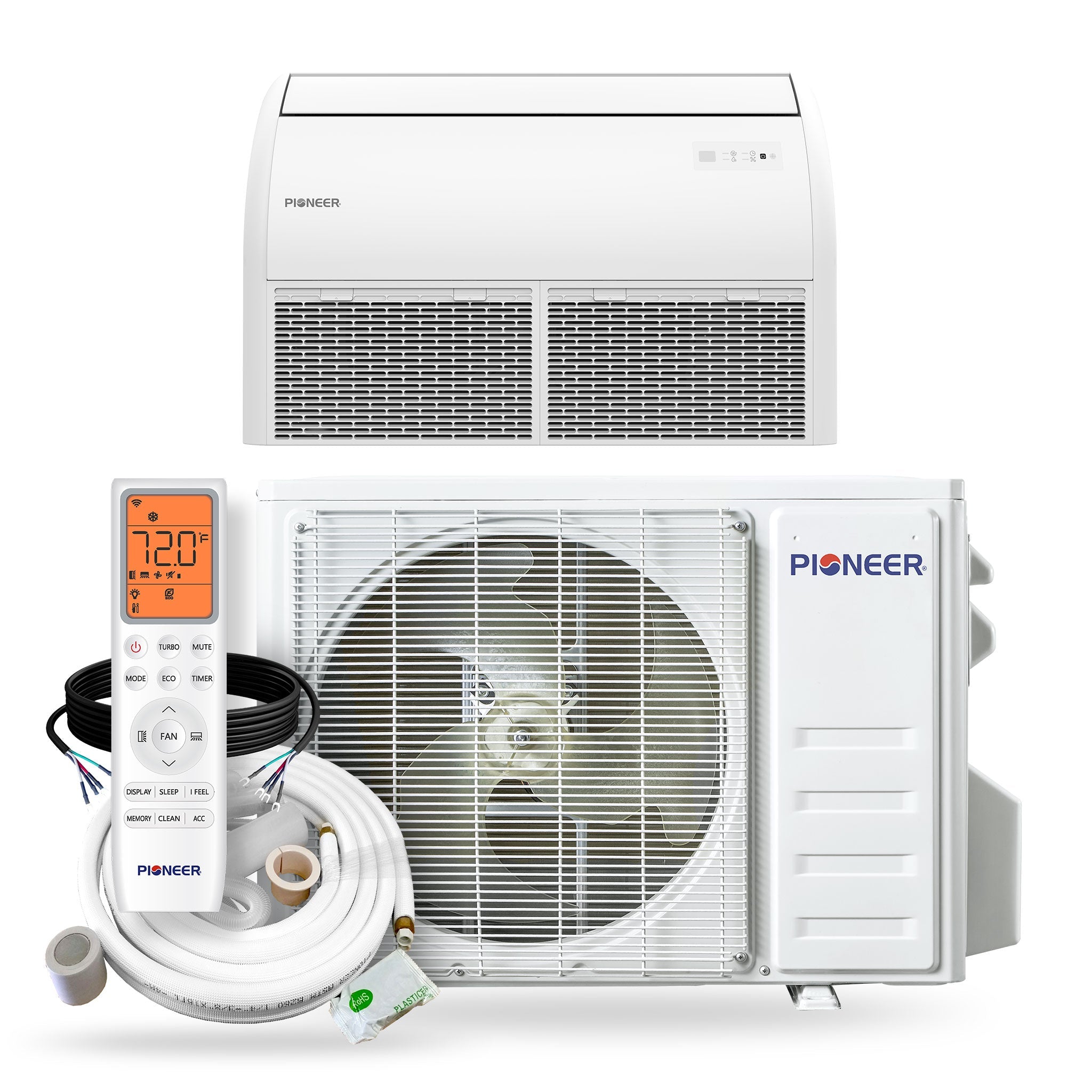

  • High Efficiency Quantum Ultra Floor/Ceiling/Low-Wall Ductless Split Heat Pump System
  • Cooling capacity: 22,200 BTU/H with 20.0 SEER2 / 11.7 EER2 efficiency
  • Heating capacity: 24,400 BTU/H with 9.5 HSPF2 / 3.0 COP2 efficiency
  • Voltage: 208/230V, 60Hz, 1Ph
  • Floor/Ceiling/Low-Wall Mounted Ductless Air Conditioning & Heating System
  • Variable-Speed DC Inverter Driven Performance
  • Factory-Precharged with Environmentally Friendly R454b Refrigerant
  • Standard Ambient Range Operation (As low as 5°F in Heating / As high as 131°F in Cooling)
Features
  • Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
  • Dual-Drainage Ports
  • Washable, Reusable Air Filters
  • Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers

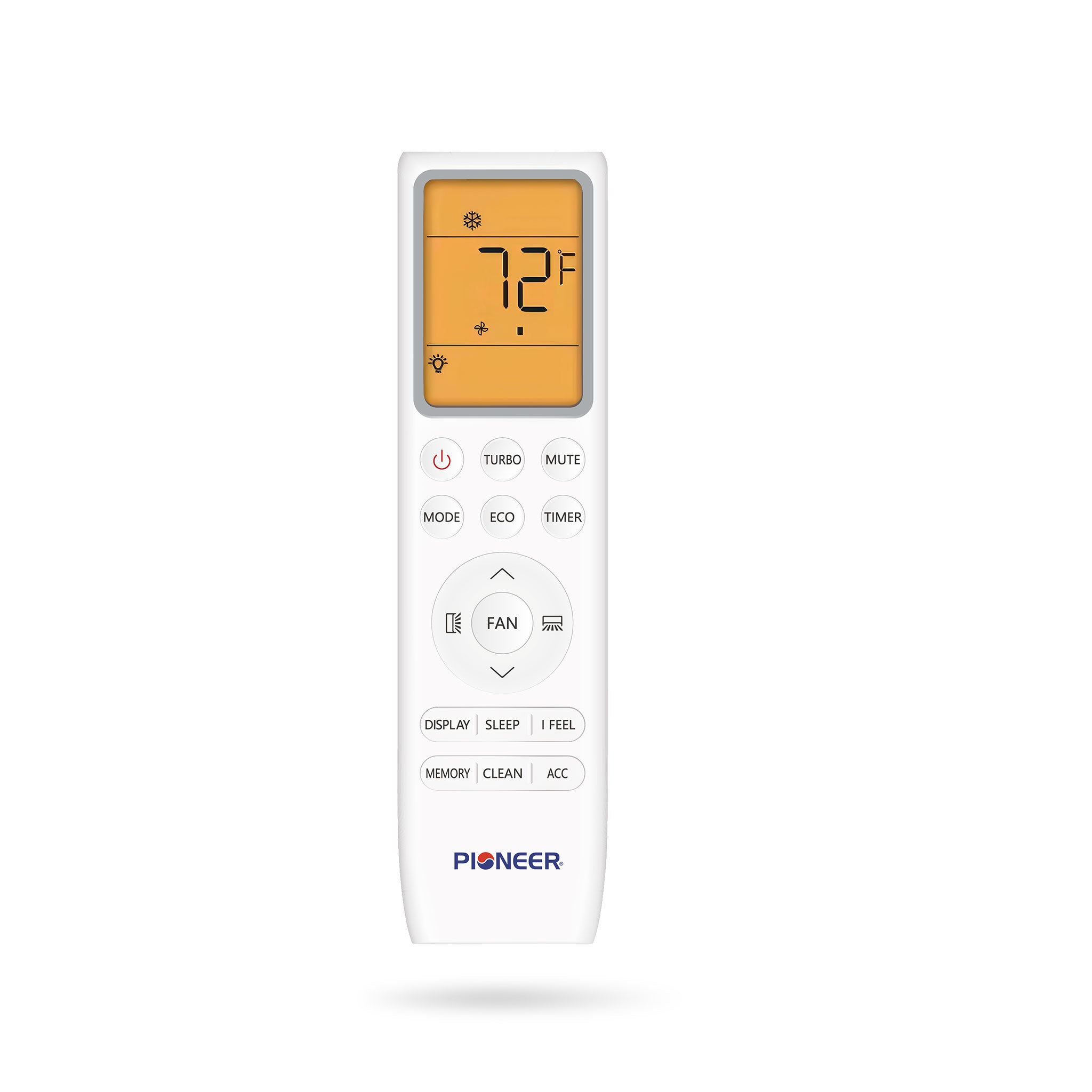

  • Functional Remote with:
    • ECO and SLEEP Modes, for Energy-Conservation
    • Timer On/Off Control
    • TURBO, for Times of High-Demand
    • Self-Clean Cycle
    • MEMORY, to Recall Favorite Settings
    • IFEEL, to Detect and Adjust to Local Temperature
Technical Information & Performance

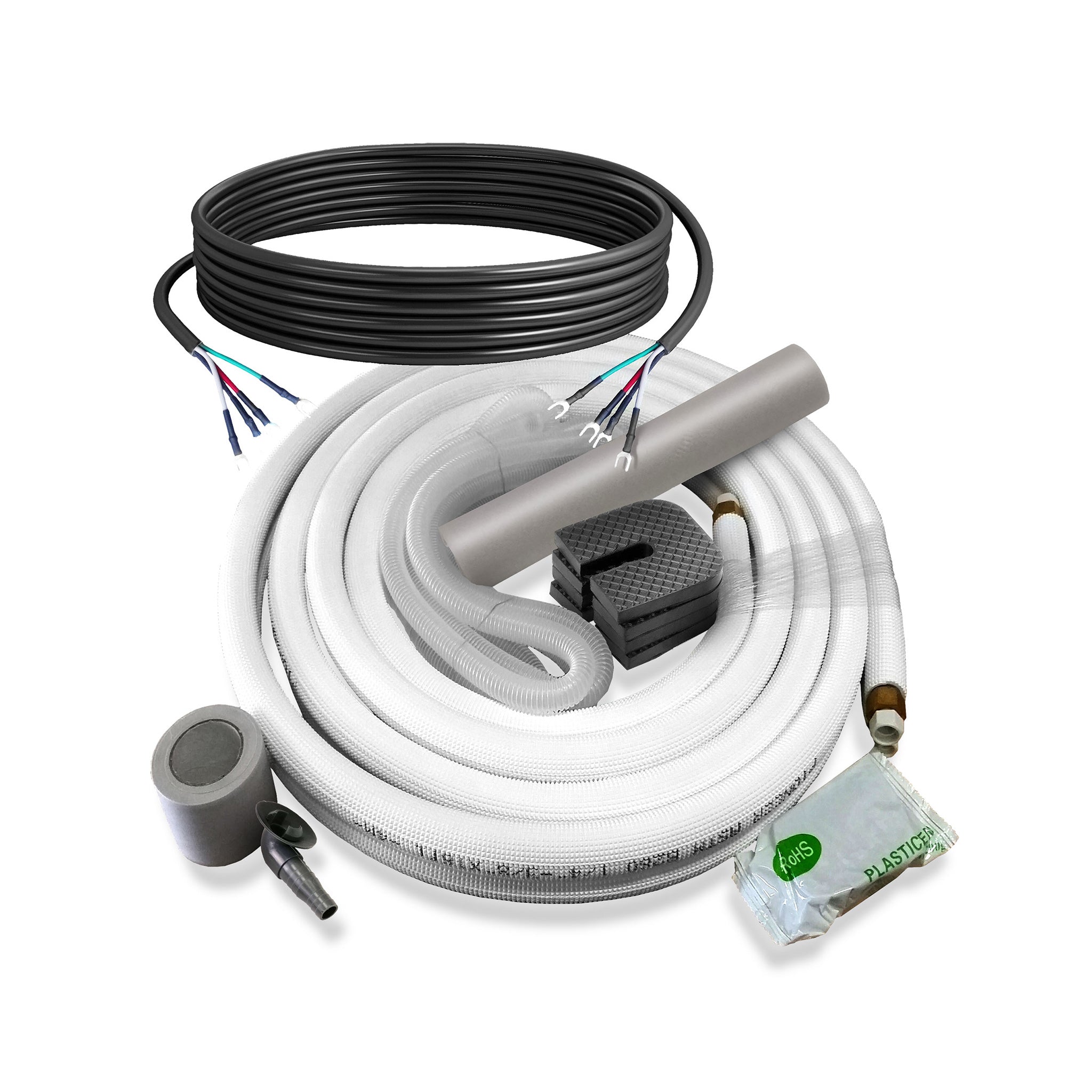

  • System Kit
    • Power Supply: 208~230V, 60Hz, 1Ph
    • Cooling Rated Capacity: 22,200 BTU/h
    • Cooling Capacity Range: 6,010~24,610 BTU/h
    • Cooling SEER2: 20.0 BTU/W.h
    • Cooling EER2: 11.7 BTU/W.h
    • Heating Rated Capacity: 24,400 BTU/h
    • Heating Capacity Range: 4,750~28,640 BTU/h
    • Heating HSPF2 (Region IV): 9.5 / 8.5 BTU/W.h
    • Heating C.O.P.2 (47°F/5°F): 3.0 / 2.0 W/W
    • Refrigerant Type: R454b
    • Suitable Area: 750~1,000 Sq.F
    • AHRI Reference: 217048767

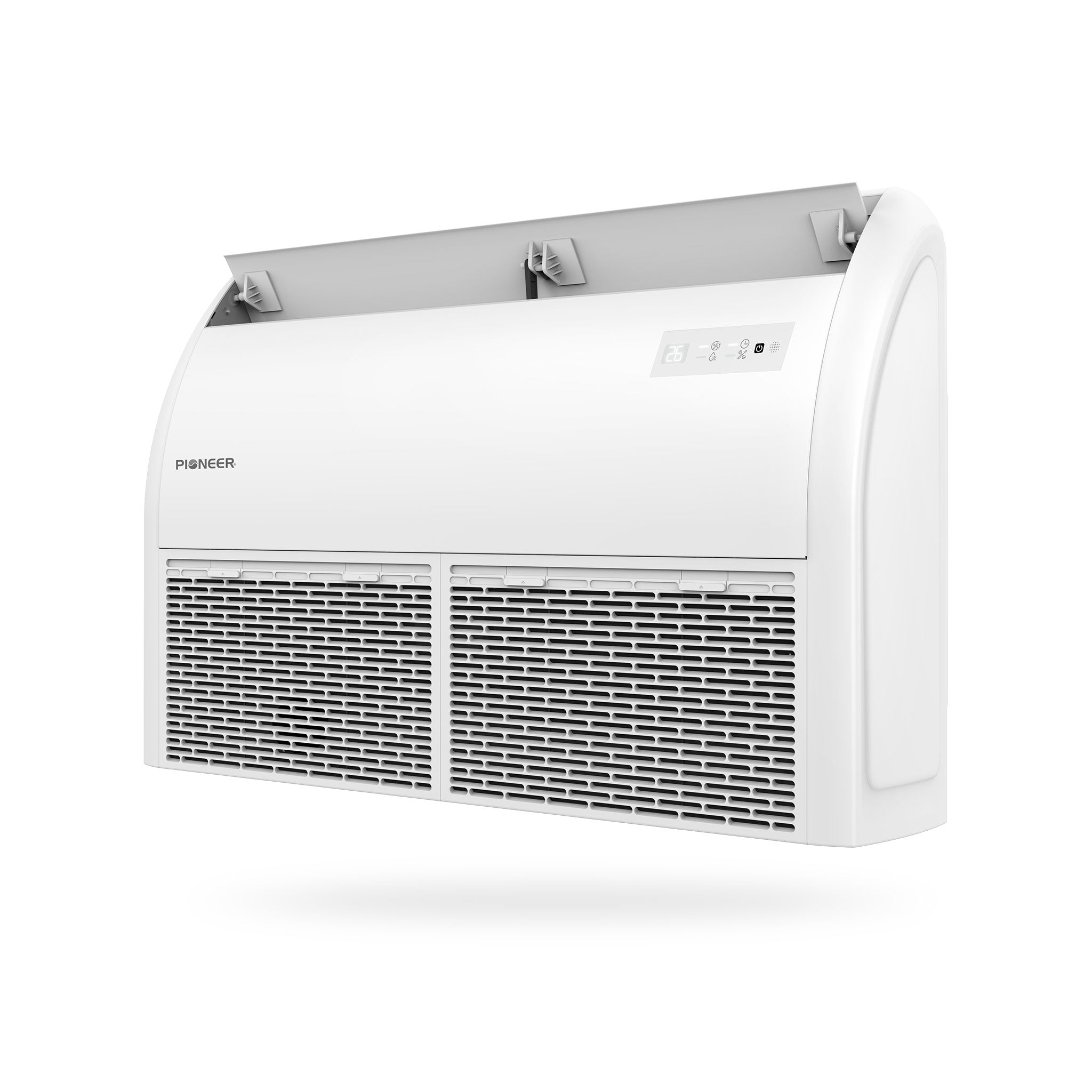

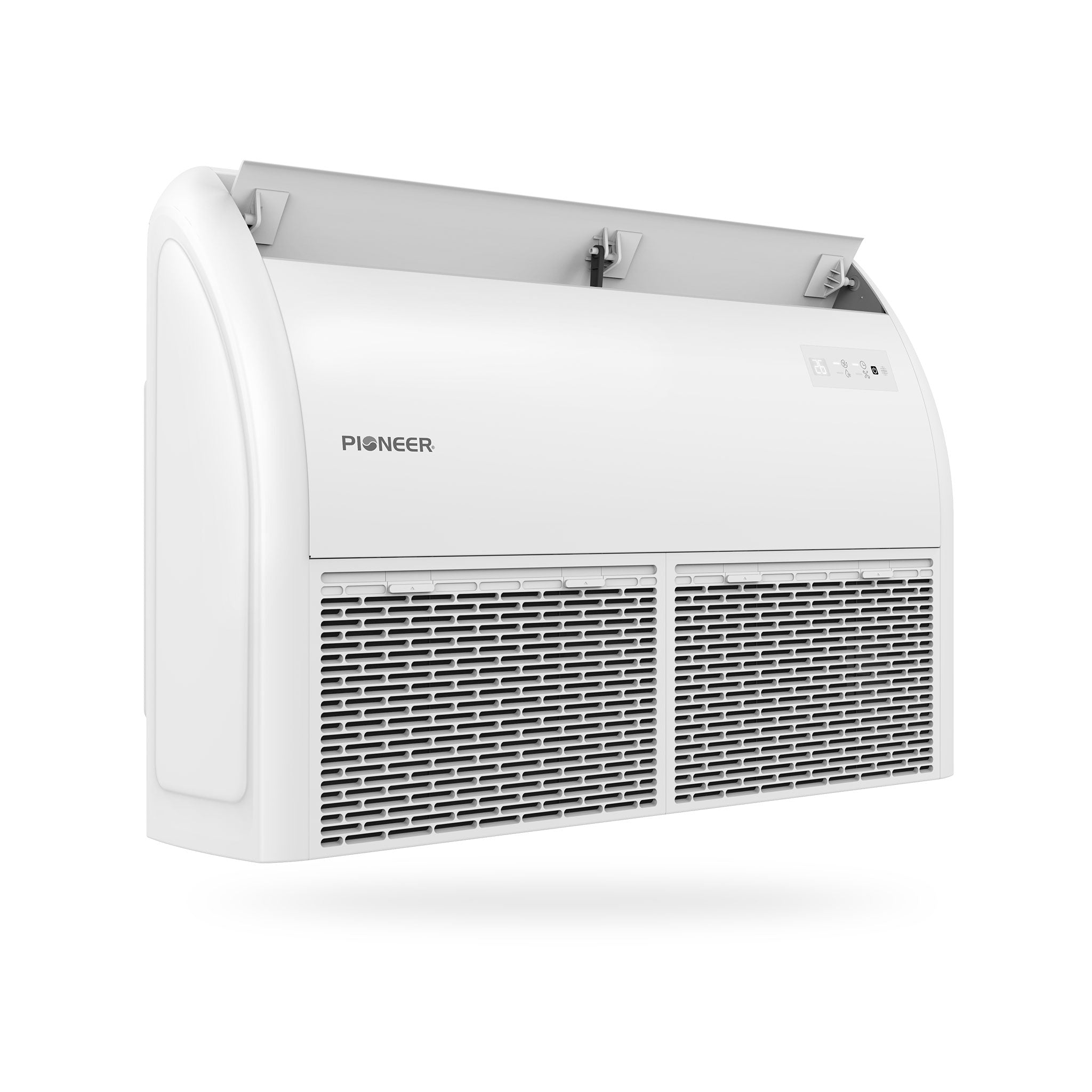

  • Indoor Unit
    • Part Number: UT024GLSILSFHG
    • Air Flow (Turbo/Hi/Med/Lo/Mute): 647/588/517/470/412 CFM
    • Sound Level (Turbo/Hi/Med/Lo/Mute): 53/52/48/44/40 dB(A)
    • Product Dimensions (WDH): 41"-1/2 x 26"-1/2 x 9"-1/4 Inches
    • Carton Dimensions (WDH): 44"-1/2 x 26"-1/2 x 12" Inches
    • Net / Gross Weight: 57.3 / 68.3 lbs.

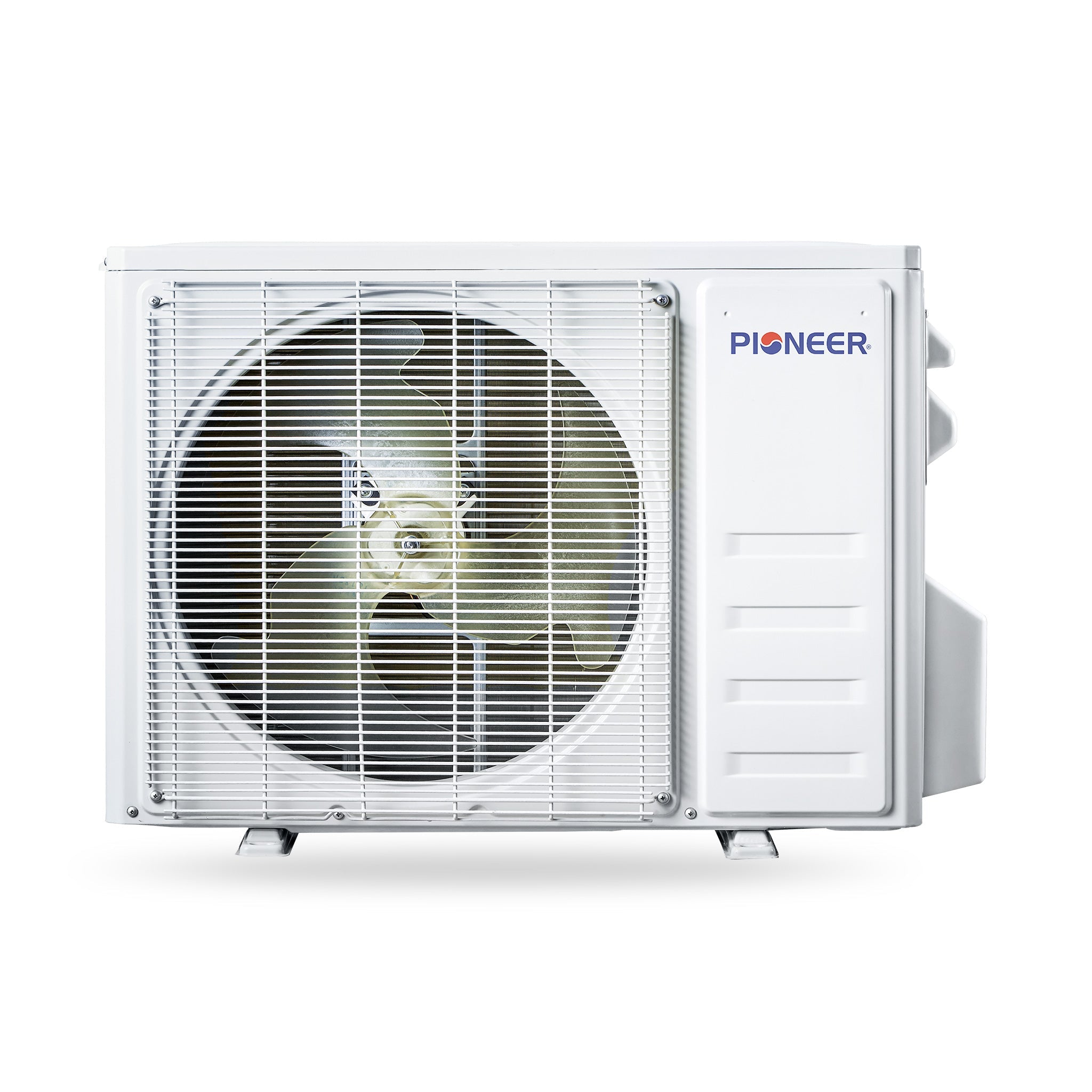

  • Outdoor Unit
    • Part Number: YN024GLSI24RPG
    • Breaker Needed: 25A (double-pole)
    • Sound Level: 54 dB(A)
    • Net Dimensions (WDH): 38"-1/2 x 16"-5/8 x 31"-5/8 Inches
    • Carton Dimensions (WDH): 40"-1/4 x 18"-7/8 x 31"-7/8 Inches
    • Net / Gross Weight: 104.7 / 119.0 lbs.
Dimension Chart
41½ 26½ 38½ 16⅝ 31⅝ ¾
Shipping and Return

We offer Free Express Shipping on all of our products. Handling times are 1-2 business days and Delivery takes roughly 3-14 Business days

For more Shipping information visit here

We offer a 2 Year (730 Day) return for our products.

For more Return information visit here

COVERAGE AREA

HIVE WARRANTY

HVAC Hive Warranty Information:

HVAC Hive is an authorized dealer for every product on our website. Every HVAC system and component comes with its original manufacturer's warranty, guaranteeing you receive a functional, quality product.

Our 5-Year Parts & Labor Warranty Promise: We go beyond the standard coverage. If a manufacturer's warranty doesn't cover your product for a full 5 years, HVAC Hive will extend both parts and labor warranty to complete the 5-year coverage period.

Example: If your manufacturer covers 2 years parts & labor, we'll cover an additional 3 years — giving you a full 5 years of parts and labor protection.

Warranty Coverage Includes:

  • Parts replacement for manufacturing defects
  • Labor costs for covered repairs
  • System malfunctions and component failures

Warranty Details:

  • Residential, light commercial, and full commercial warranties vary based on your usage
  • Specific warranty terms and coverage periods are listed on each product page
  • Both parts and labor are covered under our extended warranty program

Making a Warranty Claim: Contact our Worker Bee Support team at 1-888-712-2465 or karim@hvachive.com . We'll handle your claim quickly and professionally, covering both parts and labor costs. You can also contact the manufacturer directly if preferred.

Questions? Need help understanding your parts & labor warranty coverage? Our team is here to explain the details and ensure you're fully protected.

Contact US
Request an Installer

Product Overview

  • Zone / ROOM:

    Zone / ROOM: 1 Zone

  • Air Handler BTU:

    Air Handler BTU: 24k

  • Condenser BTU:

    Condenser BTU: 24k

  • Outdoor Operating Temp (Cool/ heat):

    Outdoor Operating Temp (Cool/ heat): Heating -13°F to 75°F & Cooling 5°F to 122°F

  • Warranty

    Warranty 5 year parts & compressor warranty
