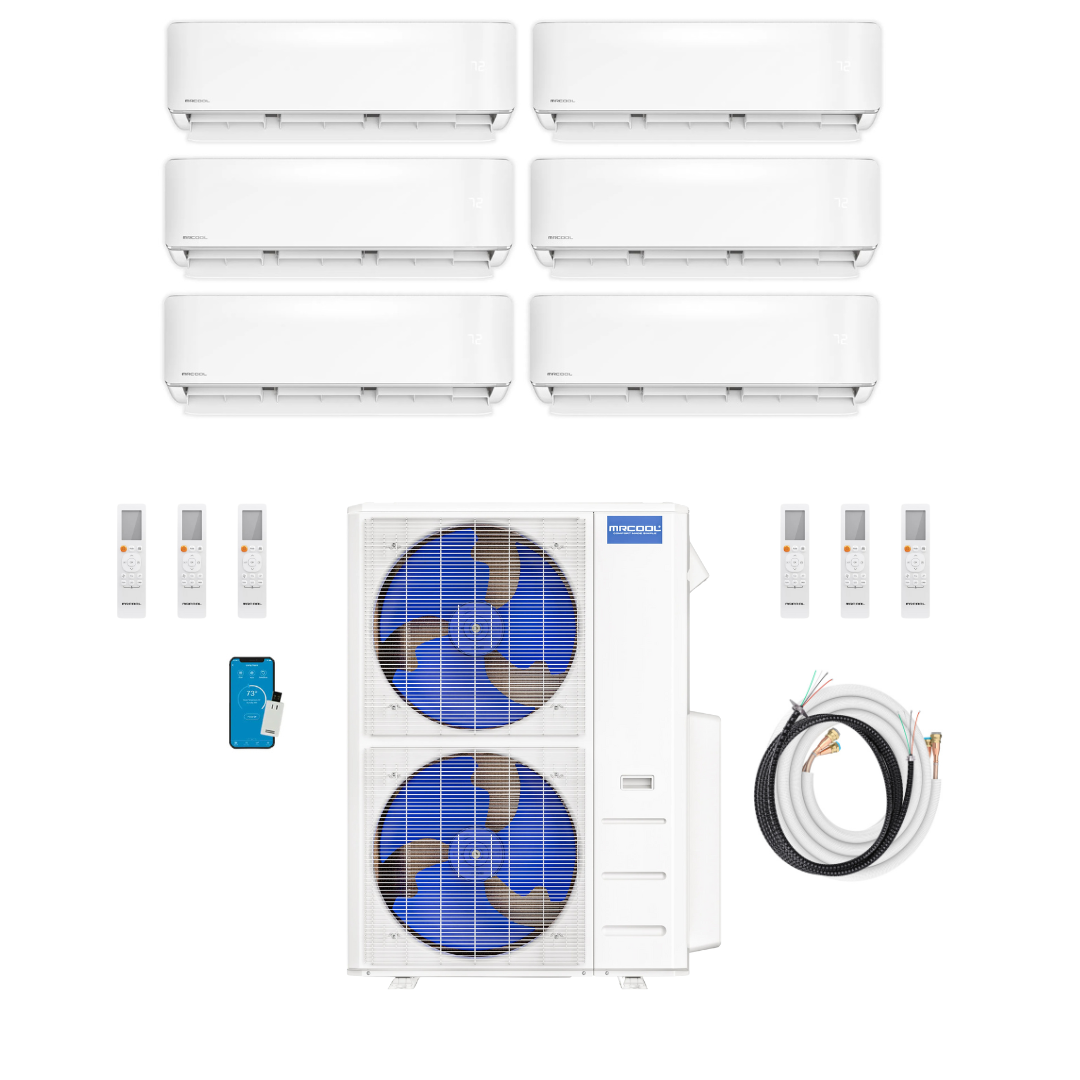

MRCOOL DIY 5th Gen Mini Split - 6-Zone 48,000 BTU Mini Split Condenser 230V with 12K + 12K + 12K + 9K + 9K + 6K Wall Mount Air Handlers DIY5-6Z-48HP-12K12K12K9K9K6K

SKU DIY5-6Z-48HP-12K12K12K9K9K6K
by MRCOOL
Authorized Dealer Official
100% Authentic Guarantee
In stock, ready to ship

Fast shipping icon FREE EXPRESS SHIPPING: Process orders in 1 business day

Returns icon STRESS FREE RETURNS: 2 Year Returns

VIP icon PREMIUM QUALITY: Top Tier Products, Even Better Customer Care

Warranty icon 5 YEAR WARRANTY: We Believe In Our Products & Our Team

Professional installation icon PROFESSIONAL INSTALLATION: Get connected with certified, licensed installers in your area - Request installer quotes

Save $2,127.00
Original Price $8,943.00
Current Price $6,816.00

Notify me when back in stock

Estimated Shipping Widget will be displayed here!

Sticky Add to Cart Button
Description

MRCOOL DIY® 5th Gen 6‑Zone 48,000 BTU Mini Split – Power Through Large Multi‑Room Installs

Some projects are all about variety — big open living spaces, mid‑sized offices, and smaller rooms that all need their own climate control. Instead of juggling multiple systems, you can handle it all with one powerful, efficient outdoor unit. The result? A faster install, fewer headaches, and a client who calls you first for the next job.

The MRCOOL DIY® 5th Gen 48K BTU 6‑Zone Mini Split with three 12K, two 9K, and one 6K wall‑mounted air handler gives you the flexibility to match the right capacity to each space. And with pre‑charged linesets, you’ll be in and out without the extra tools or time-consuming steps.


Why This System Belongs in Your Hive

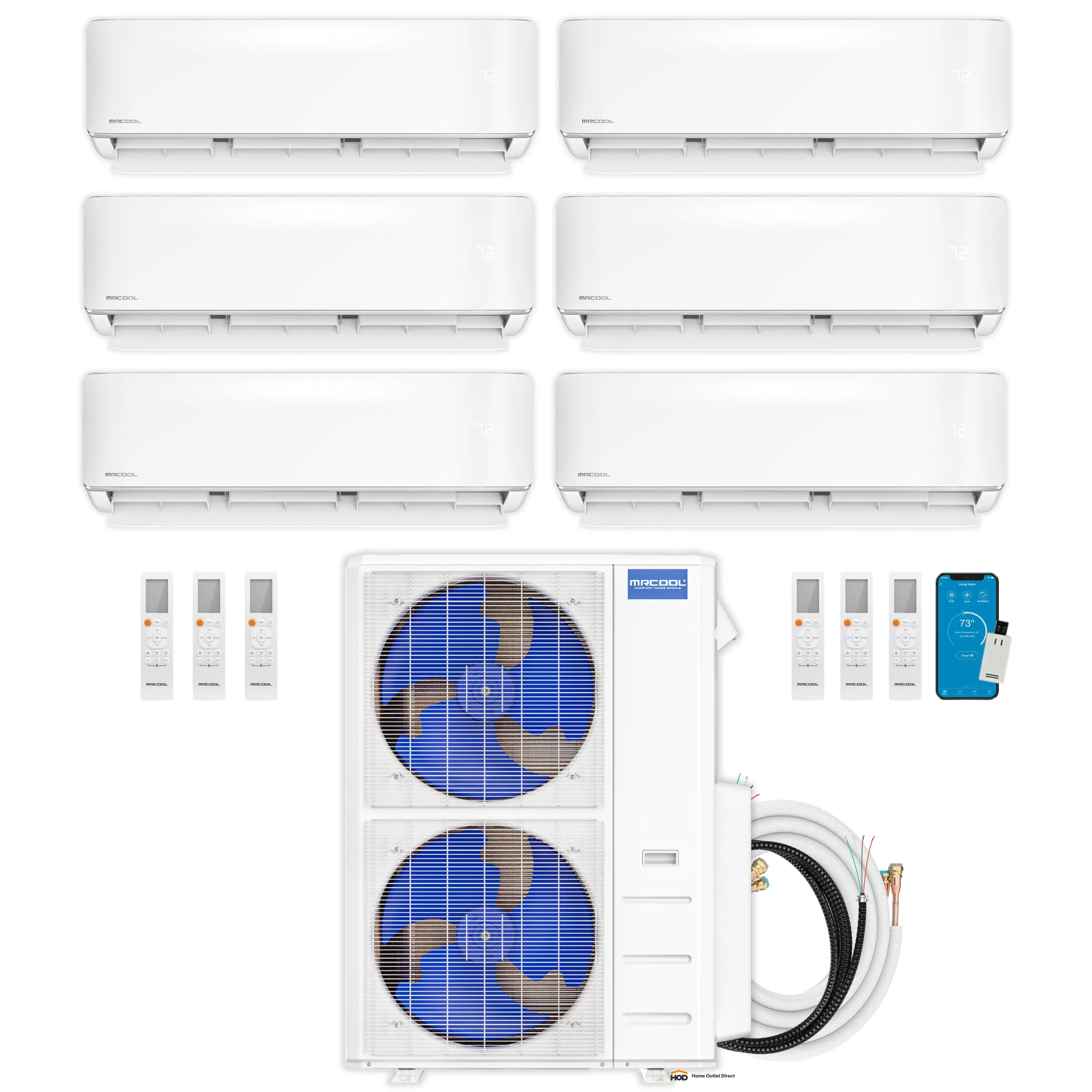

  • Six Zones, One Outdoor Unit — Three 12K, two 9K, and one 6K wall‑mounted air handler for a perfect fit in rooms of all sizes.
  • DIY‑Friendly Install — Pre‑charged R‑454B linesets mean no vacuum pump, no special tools, and less labor.
  • Year‑Round Comfort — Heat pump technology delivers reliable heating and cooling in every season.
  • Energy Efficiency That Wins Clients — High SEER ratings help customers cut energy costs while you boost your reputation.
  • Quiet Performance — Low‑noise operation keeps homes and businesses peaceful.
  • Fast Free Shipping — Get your system on site quickly so you can keep projects moving.

From one worker bee to another: this is the system you want when you need to cover a mix of big and small spaces without slowing down your schedule.

Order today and keep your installs buzzing with Fast Free Shipping from the Hive.



MRCOOL DIY® 5th Gen 48,000 BTU 6-Zone Mini Split Condenser 230v (DIY-MULTI6-48HP230D-O)

Dimensions 16.34" D x 52.48" H x 37.48" W

SEER2

21.8

EER2

12

HSPF2-4

10

HSPF2-5

7.8

Tonnage

4

Cooling Capacity (BTU)

43000

Heating Capacity (BTU)

48000

Voltage (V)

208/230

Phase

1

Cycle

60

Max Fuse Breaker (A)

45

Min Circuit Ampacity (A)

40

Color

White

Zone Capacity

6

Refrigerant Type

R-454B

Refrigerant Volume (OZ)

148.15

Decibel Rating (DBA)

64

Inverter

DC

Line Set Length

25

Max Lineset Length (FT)

221.4

Liquid LIne Size

1/4

Suctio Line Size

(3/8 X4) (1/2 X2)

Compressor Motor Type

Rotary

Auxiliary Heater Included

No

Auxiliary Heater Available

No

Fan Only Option

Yes

Quiet Mode

Yes

Auto Cool

Yes

WIFI Compatibility

Yes

APP Compatibility

Yes

Works with IOS

Yes

Works with Android

Yes

UL Listed

Yes

ETL Listed

Yes

Energy Star Certified

Yes

AHRI Certified

Yes

Registered Warranty

Extended Limited Lifetime*

Base Parts Warranty

5

Base Compressor Warranty

7

Has Batteries

Yes

Contains Electronics

Yes

Contans Chemicals

Yes

Contains Aerosol

Yes

Contains Compressed Gas

Yes

Proposition 65 Warning

Yes



Manuals & Guides

Brochure
Install Manual
Remote Manual
Accessory Manual
Warranty Doc
AHRI Cert
Energy Guide

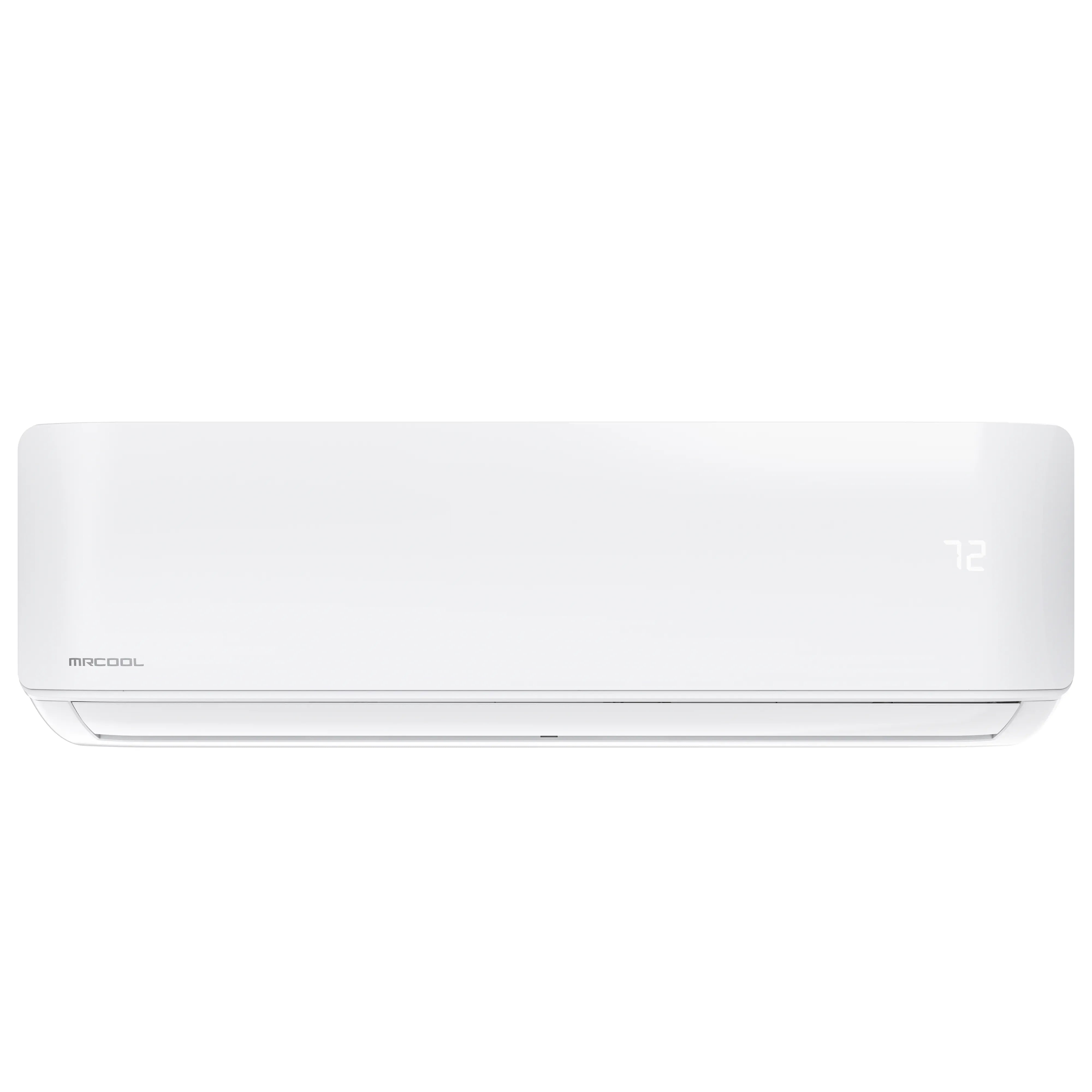

MRCOOL DIY® 5th Gen 12,000 BTU Multi-Zone Mini Split Air Handler 230V (DIY-12-HP-WMAH-230D25-O) X3

Product Specs

Dimensions 7.44" D x 11.63" H x 31.57" W

Voltage (V)

208/230

Phase

1

Cycle

60

Mount Type

Wall

Color

White

Max Coverage Area

550 sqft

Oscillation

Yes

Filter Type

Reusable

Auxiliary Heater Included

No

Auxiliary Heater Available

No

Fan Only Option

Yes

Quiet Mode

Yes

Auto Cool

Yes

WIFI Compatibility

Yes

APP Compatibility

Yes

Works with IOS

Yes

Works with Android

Yes

Remote Control Included

Yes

UL Listed

Yes

ETL Listed

Yes

AHRI Certified

Yes

Registered Warranty

Extended Limited Lifetime*

Base Parts Warranty

5

Base Compressor Warranty

7

Has Batteries

Yes

Contains Electronics

Yes

Contains Chemicals

Yes

Contains Aerosol

Yes

Contains Compressed Gas

Yes

Proposition 65 Warning

Yes



Manuals & Guides

Brochure
Install Manual
Remote Manual
Accessory Manual
Warranty Doc



MRCOOL DIY® 5th Gen 9,000 BTU Multi-Zone Mini Split Air Handler 230V (DIY-09-HP-WMAH-230D25-O) X2

Product Specs

Dimensions 7.44" D x 11.69" H x 31.57" W

Voltage (V)

208/230

Phase

1

Cycle

60

Mount Type

Wall

Color

White

Max Coverage Area

400 sqft

Oscillation

Yes

Filter Type

Reusable

Auxiliary Heater Included

No

Auxiliary Heater Available

No

Fan Only Option

Yes

Quiet Mode

Yes

Auto Cool

Yes

WIFI Compatibility

Yes

APP Compatibility

Yes

Works with IOS

Yes

Works with Android

Yes

Remote Control Included

Yes

UL Listed

Yes

ETL Listed

Yes

AHRI Certified

Yes

Registered Warranty

Extended Limited Lifetime*

Base Parts Warranty

5

Base Compressor Warranty

7

Has Batteries

Yes

Contains Electronics

Yes

Contains Chemicals

Yes

Contains Aerosol

Yes

Contains Compressed Gas

Yes

Proposition 65 Warning

Yes



Manuals & Guides

Brochure
Install Manual
Remote Manual
Accessory Manual
Warranty Doc



MRCOOL DIY® 5th Gen 6,000 BTU Multi-Zone Mini Split Air Handler 230V (DIY-06-HP-WMAH-230D25-O)

Product Specs

Dimensions 7.44" D x 11.69" H x 31.57" W

Voltage (V)

208/230

Phase

1

Cycle

60

Mount Type

Wall

Color

White

Max Coverage Area

200 sqft

Oscillation

Yes

Filter Type

Reusable

Auxiliary Heater Included

No

Auxiliary Heater Available

No

Fan Only Option

Yes

Quiet Mode

Yes

Auto Cool

Yes

WIFI Compatibility

Yes

APP Compatibility

Yes

Works with IOS

Yes

Works with Android

Yes

Remote Control Included

Yes

UL Listed

Yes

ETL Listed

Yes

AHRI Certified

Yes

Registered Warranty

Extended Limited Lifetime*

Base Parts Warranty

5

Base Compressor Warranty

7

Has Batteries

Yes

Contains Electronics

Yes

Contains Chemicals

Yes

Contains Aerosol

Yes

Contains Compressed Gas

Yes

Proposition 65 Warning

Yes



Manuals & Guides

Brochure
Install Manual
Remote Manual
Accessory Manual
Warranty Doc



MRCOOL® Remote Control for 5th Gen DIY and Advantage Series Mini Split Systems X6

Dimensions 2" W x 6" L x 1" H
Works with MRCOOL DIY 5th Generation Mini Splits
Restricted States GU;PR;VI
Color White
Shipping and Return

We offer Free Express Shipping on all of our products. Handling times are 1-2 business days and Delivery takes roughly 3-14 Business days

For more Shipping information visit here

We offer a 2 Year (730 Day) return for our products.

For more Return information visit here

COVERAGE AREA

HIVE WARRANTY

HVAC Hive Warranty Information:

HVAC Hive is an authorized dealer for every product on our website. Every HVAC system and component comes with its original manufacturer's warranty, guaranteeing you receive a functional, quality product.

Our 5-Year Parts & Labor Warranty Promise: We go beyond the standard coverage. If a manufacturer's warranty doesn't cover your product for a full 5 years, HVAC Hive will extend both parts and labor warranty to complete the 5-year coverage period.

Example: If your manufacturer covers 2 years parts & labor, we'll cover an additional 3 years — giving you a full 5 years of parts and labor protection.

Warranty Coverage Includes:

  • Parts replacement for manufacturing defects
  • Labor costs for covered repairs
  • System malfunctions and component failures

Warranty Details:

  • Residential, light commercial, and full commercial warranties vary based on your usage
  • Specific warranty terms and coverage periods are listed on each product page
  • Both parts and labor are covered under our extended warranty program

Making a Warranty Claim: Contact our Worker Bee Support team at 1-888-712-2465 or karim@hvachive.com . We'll handle your claim quickly and professionally, covering both parts and labor costs. You can also contact the manufacturer directly if preferred.

Questions? Need help understanding your parts & labor warranty coverage? Our team is here to explain the details and ensure you're fully protected.

Contact US
Request an Installer

Product Overview

  • Zone / ROOM:

    Zone / ROOM: 6 Zone

  • Air Handler BTU:

    Air Handler BTU: 12k + 12k + 12k + 9k + 9k + 6k

  • Condenser BTU:

    Condenser BTU: 48k BTU

  • Outdoor Operating Temp (Cool/ heat):

    Outdoor Operating Temp (Cool/ heat): Heating -13°F to 75.2°F & Cooling 5°F to 122°F

  • Warranty

    Warranty 5Y Parts & 7Y Compressor + Lifetime Replacement With MRCOOL® Care
