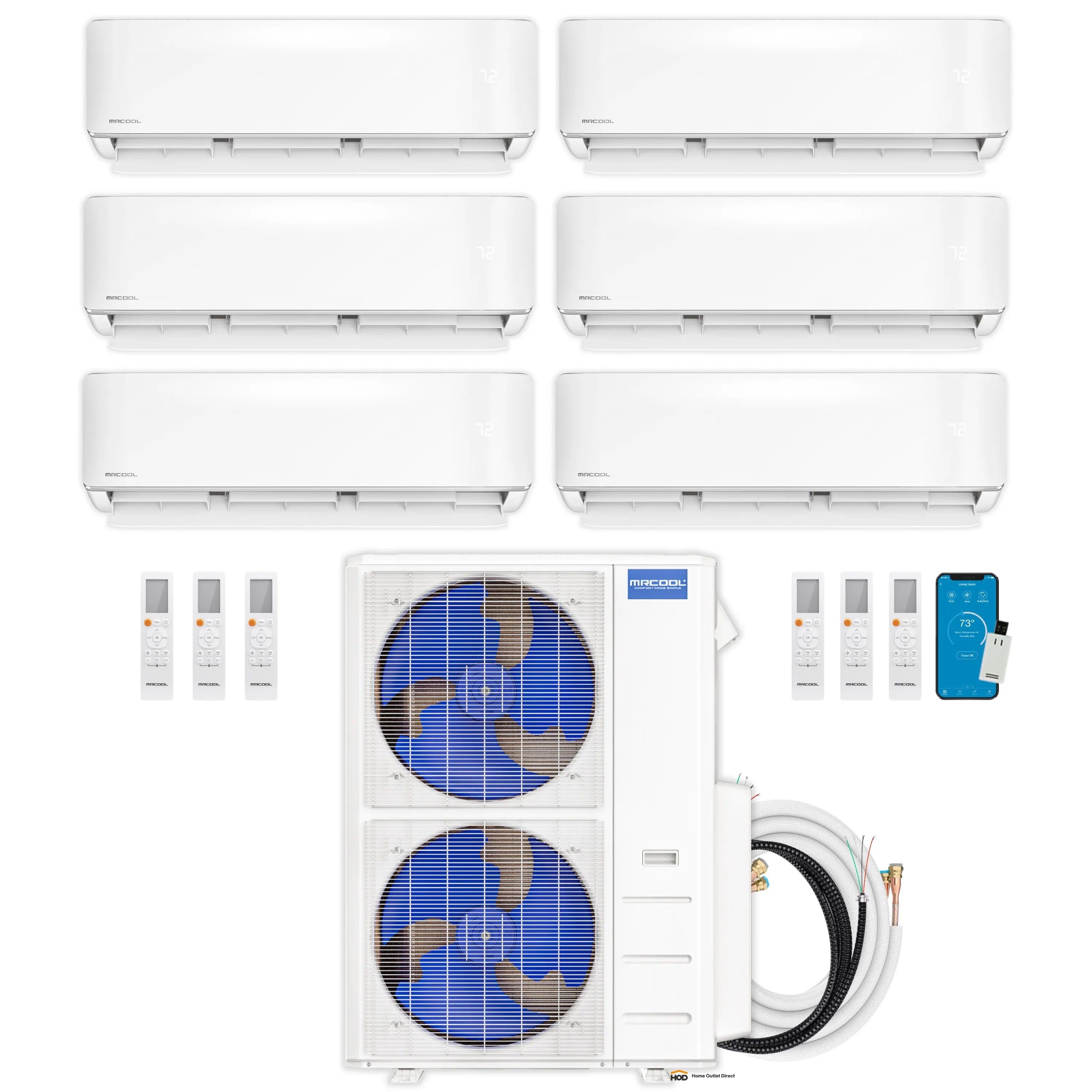

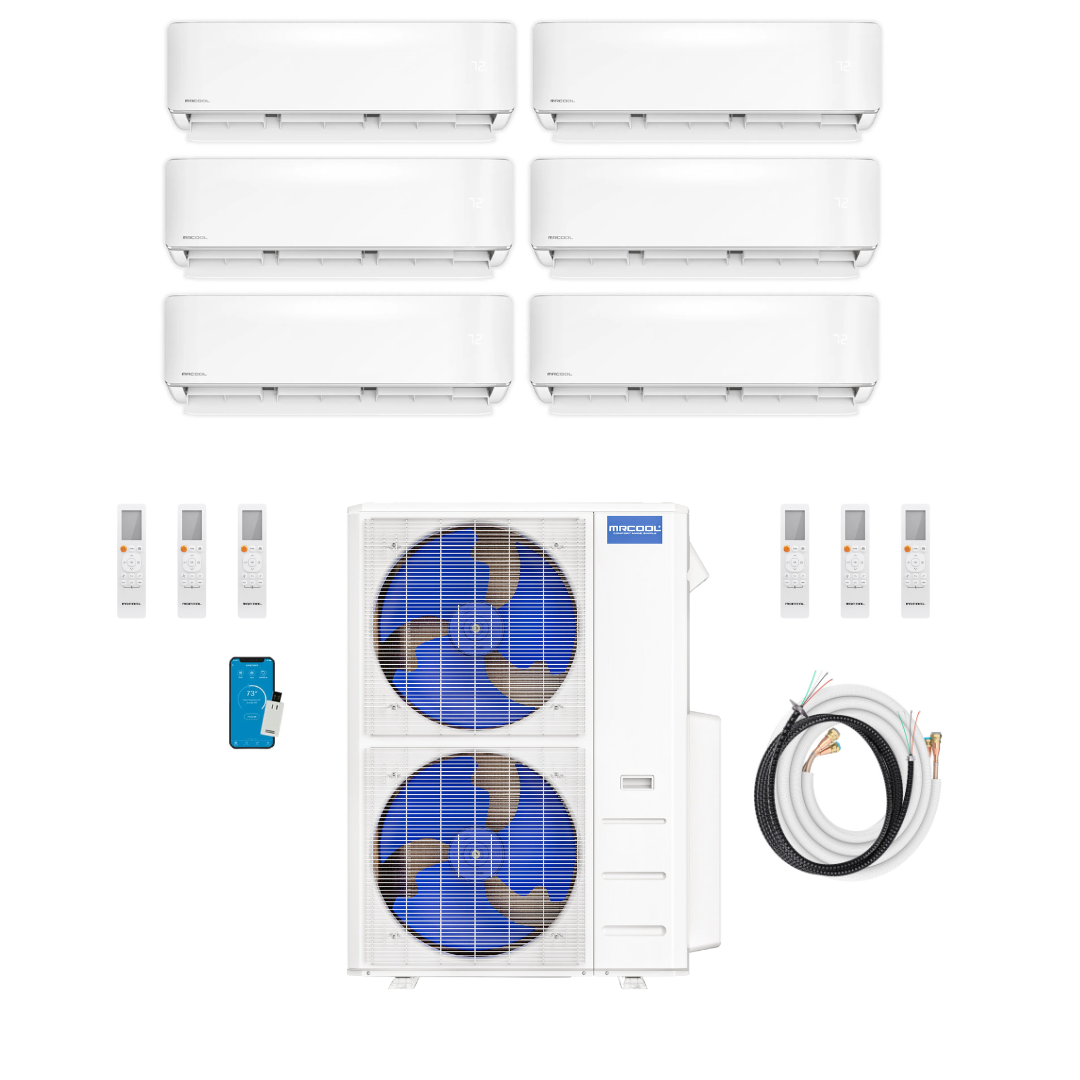

MRCOOL DIY 5th Gen Mini Split - 6-Zone 48,000 BTU Mini Split Condenser 230V with 12K + 12K + 6K + 6K + 6K + 6K Wall Mount Air Handlers DIY5-6Z-48HP-12K12K6K6K6K6K

SKU DIY5-6Z-48HP-12K12K6K6K6K6K
by MRCOOL
Authorized Dealer Official
100% Authentic Guarantee
In stock, ready to ship

Fast shipping icon FREE EXPRESS SHIPPING: Process orders in 1 business day

Returns icon STRESS FREE RETURNS: 2 Year Returns

VIP icon PREMIUM QUALITY: Top Tier Products, Even Better Customer Care

Warranty icon 5 YEAR WARRANTY: We Believe In Our Products & Our Team

Save 24%
Original Price $8,493.00
Current Price $6,434.00

Notify me when back in stock

Sticky Add to Cart Button
Description

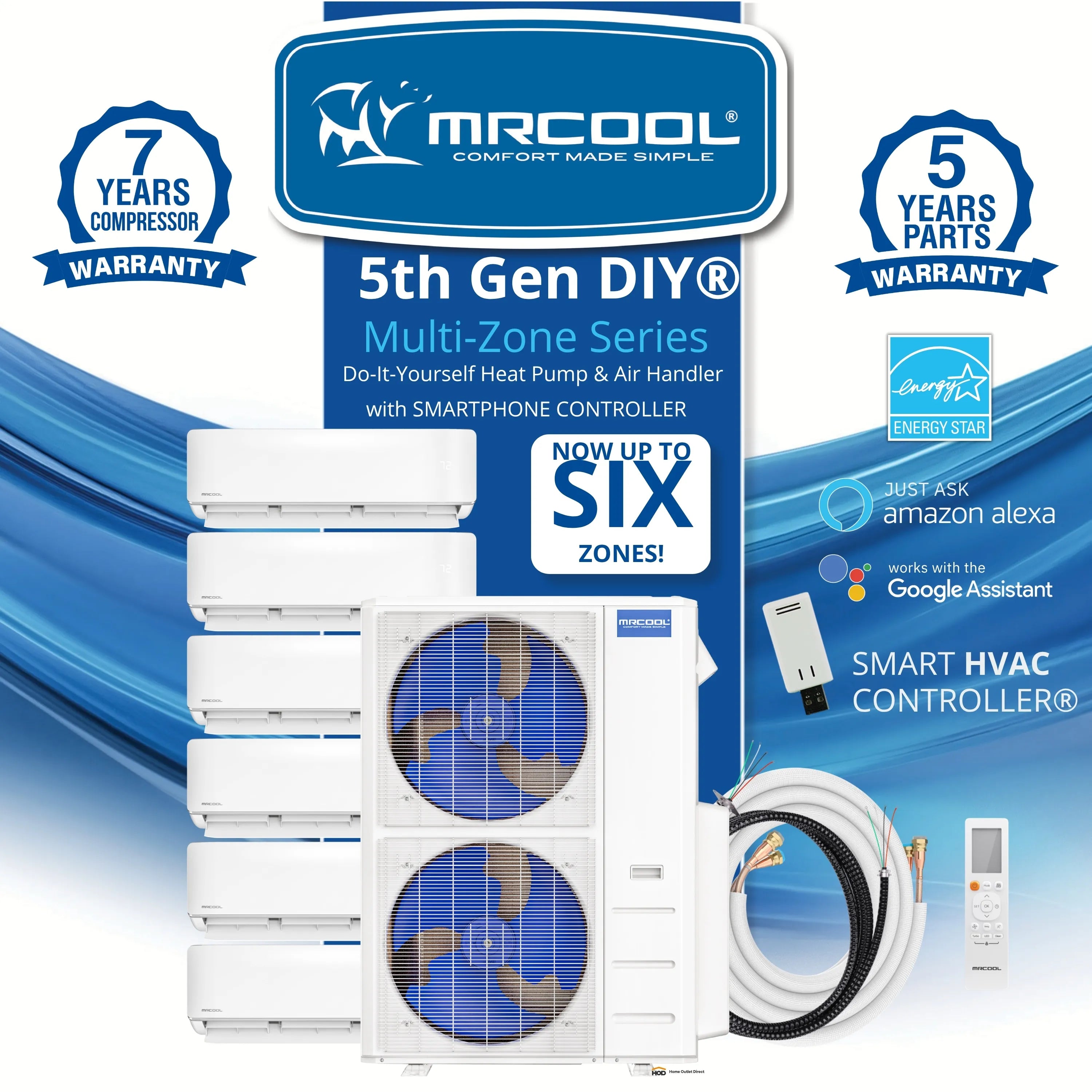

MRCOOL DIY® 5th Gen 6‑Zone 48,000 BTU Mini Split – Small‑Zone Precision, Big‑Time Efficiency

(12K + 12K + 6K + 6K + 6K + 6K Wall Mount)

When the project calls for multiple smaller rooms — bedrooms, offices, or suites — you need a system that delivers just the right amount of comfort to each space. This setup gives you the perfect balance of capacity and efficiency while keeping installation quick and easy.

Why This System Belongs in Your Hive

  • Six Zones, One Outdoor Unit — Two 12K and four 6K wall‑mounted air handlers for targeted comfort.
  • DIY‑Friendly Install — Pre‑charged R‑454B linesets mean no vacuum pump, no special tools, and less labor.
  • Year‑Round Comfort — Heat pump technology ensures reliable heating and cooling in every season.
  • Energy Efficiency That Wins Clients — High SEER ratings help customers save money.
  • Quiet Performance — Whisper‑quiet operation keeps living and working spaces peaceful.
  • Fast Free Shipping — Get your system delivered quickly to keep jobs moving.

From one worker bee to another: this is the system for projects where smaller zones need precise, efficient comfort without overcomplicating the install.



MRCOOL DIY® 5th Gen 48,000 BTU 6-Zone Mini Split Condenser 230v (DIY-MULTI6-48HP230D-O)

Product Specs

Dimensions 16.34" D x 52.48" H x 37.48" W

SEER2

21.8

EER2

12

HSPF2-4

10

HSPF2-5

7.8

Tonnage

4

Cooling Capacity (BTU)

43000

Heating Capacity (BTU)

48000

Voltage (V)

208/230

Phase

1

Cycle

60

Max Fuse Breaker (A)

45

Min Circuit Ampacity (A)

40

Color

White

Zone Capacity

6

Refrigerant Type

R-454B

Refrigerant Volume (OZ)

148.15

Decibel Rating (DBA)

64

Inverter

DC

Line Set Length

25

Max Lineset Length (FT)

221.4

Liquid LIne Size

1/4

Suctio Line Size

(3/8 X4) (1/2 X2)

Compressor Motor Type

Rotary

Auxiliary Heater Included

No

Auxiliary Heater Available

No

Fan Only Option

Yes

Quiet Mode

Yes

Auto Cool

Yes

WIFI Compatibility

Yes

APP Compatibility

Yes

Works with IOS

Yes

Works with Android

Yes

UL Listed

Yes

ETL Listed

Yes

Energy Star Certified

Yes

AHRI Certified

Yes

Registered Warranty

Extended Limited Lifetime*

Base Parts Warranty

5

Base Compressor Warranty

7

Has Batteries

Yes

Contains Electronics

Yes

Contans Chemicals

Yes

Contains Aerosol

Yes

Contains Compressed Gas

Yes

Proposition 65 Warning

Yes



Manuals & Guides

Brochure
Install Manual
Remote Manual
Accessory Manual
Warranty Doc
AHRI Cert
Energy Guide

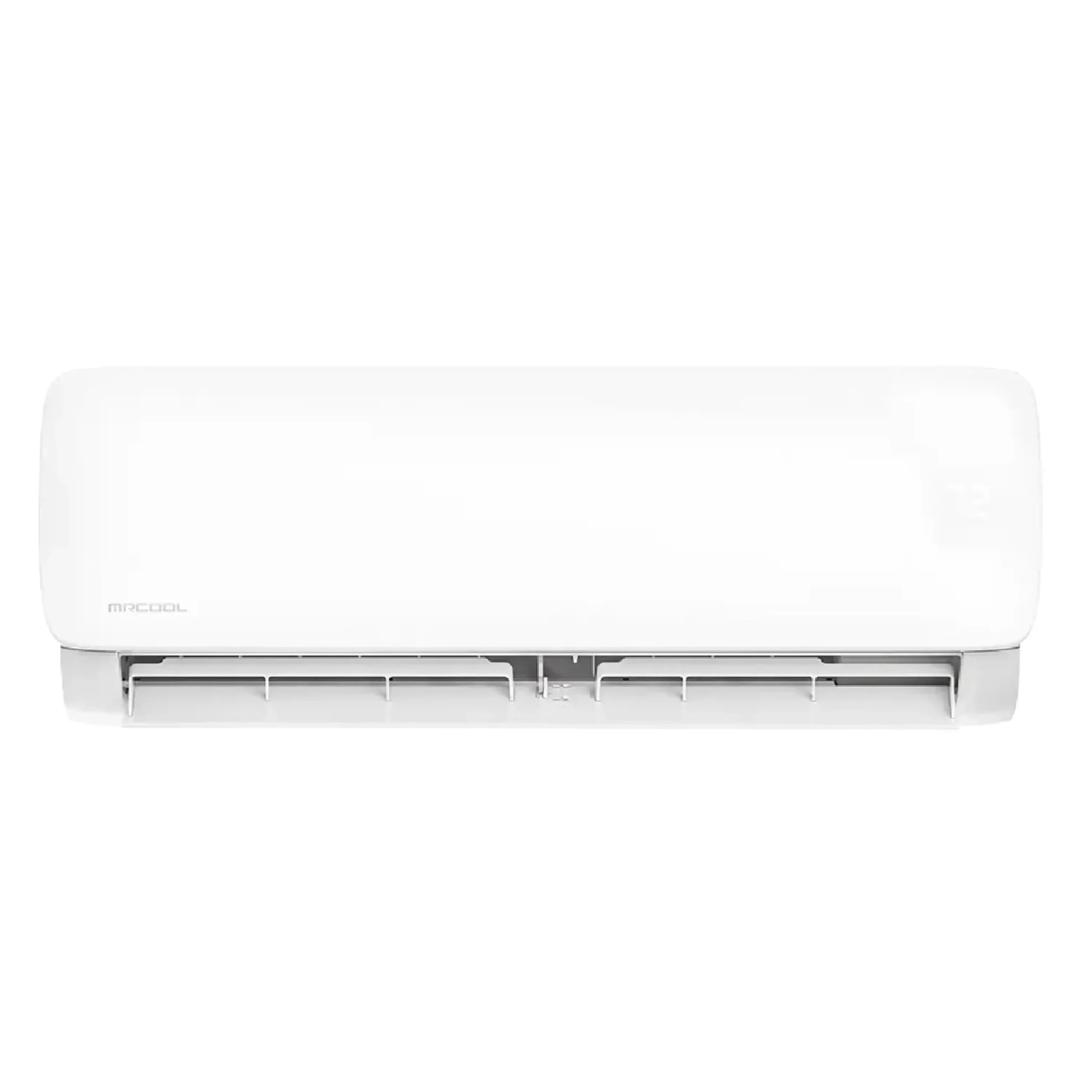

MRCOOL DIY® 5th Gen 12,000 BTU Multi-Zone Mini Split Air Handler 230V (DIY-12-HP-WMAH-230D25-O) X2

Product Specs

Dimensions 7.44" D x 11.63" H x 31.57" W

Voltage (V)

208/230

Phase

1

Cycle

60

Mount Type

Wall

Color

White

Max Coverage Area

550 sqft

Oscillation

Yes

Filter Type

Reusable

Auxiliary Heater Included

No

Auxiliary Heater Available

No

Fan Only Option

Yes

Quiet Mode

Yes

Auto Cool

Yes

WIFI Compatibility

Yes

APP Compatibility

Yes

Works with IOS

Yes

Works with Android

Yes

Remote Control Included

Yes

UL Listed

Yes

ETL Listed

Yes

AHRI Certified

Yes

Registered Warranty

Extended Limited Lifetime*

Base Parts Warranty

5

Base Compressor Warranty

7

Has Batteries

Yes

Contains Electronics

Yes

Contains Chemicals

Yes

Contains Aerosol

Yes

Contains Compressed Gas

Yes

Proposition 65 Warning

Yes



Manuals & Guides

Brochure
Install Manual
Remote Manual
Accessory Manual
Warranty Doc

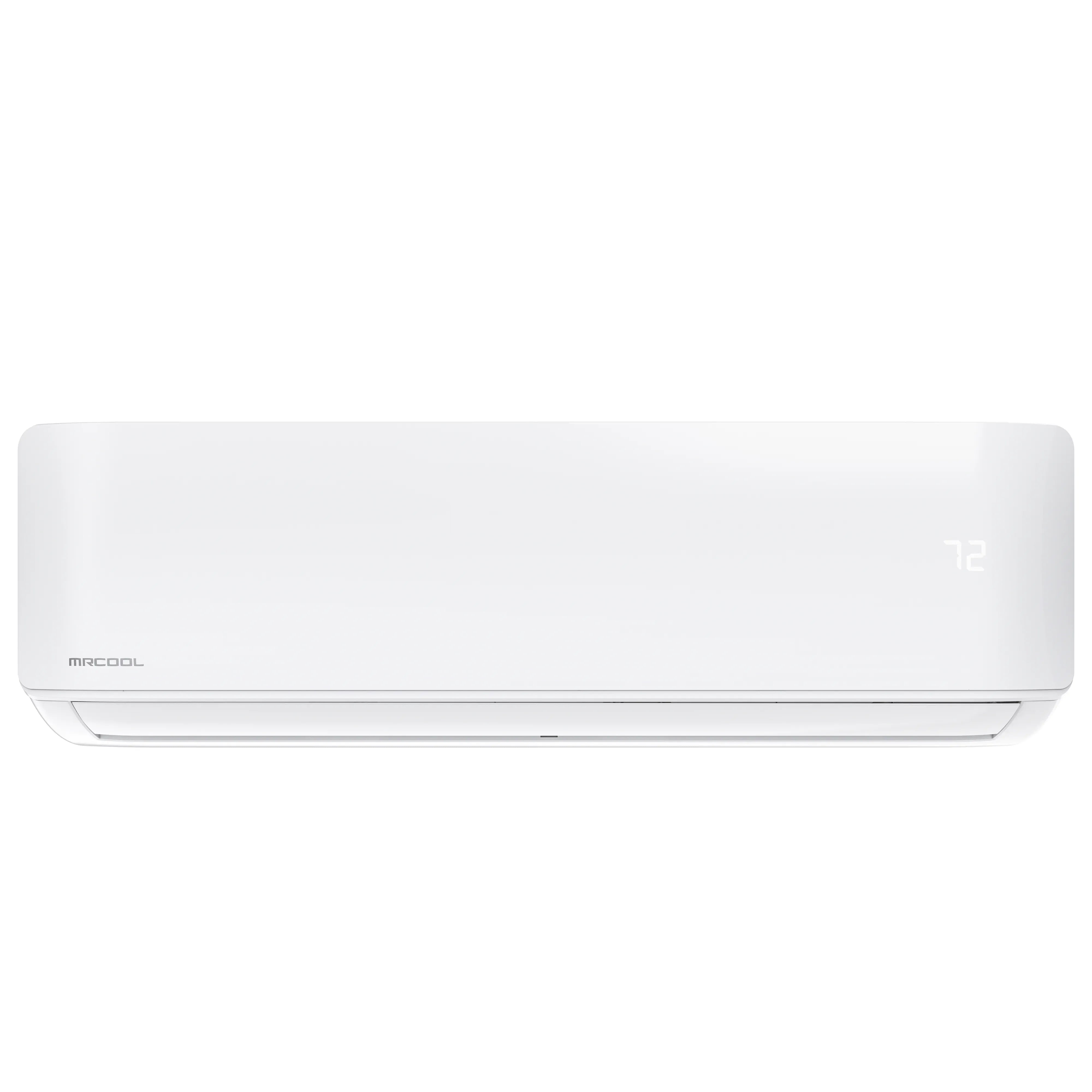

MRCOOL DIY® 5th Gen 6,000 BTU Multi-Zone Mini Split Air Handler 230V (DIY-06-HP-WMAH-230D25-O) X4

Product Specs

Dimensions 7.44" D x 11.69" H x 31.57" W

Voltage (V)

208/230

Phase

1

Cycle

60

Mount Type

Wall

Color

White

Max Coverage Area

200 sqft

Oscillation

Yes

Filter Type

Reusable

Auxiliary Heater Included

No

Auxiliary Heater Available

No

Fan Only Option

Yes

Quiet Mode

Yes

Auto Cool

Yes

WIFI Compatibility

Yes

APP Compatibility

Yes

Works with IOS

Yes

Works with Android

Yes

Remote Control Included

Yes

UL Listed

Yes

ETL Listed

Yes

AHRI Certified

Yes

Registered Warranty

Extended Limited Lifetime*

Base Parts Warranty

5

Base Compressor Warranty

7

Has Batteries

Yes

Contains Electronics

Yes

Contains Chemicals

Yes

Contains Aerosol

Yes

Contains Compressed Gas

Yes

Proposition 65 Warning

Yes



Manuals & Guides

Brochure
Install Manual
Remote Manual
Accessory Manual
Warranty Doc



MRCOOL® Remote Control for 5th Gen DIY and Advantage Series Mini Split Systems X6

Product Specs

Dimensions 2" W x 6" L x 1" H
Works with MRCOOL DIY 5th Generation Mini Splits
Restricted States GU;PR;VI
Color White
Shipping and Return

For Shipping & return information visit here

COVERAGE AREA
