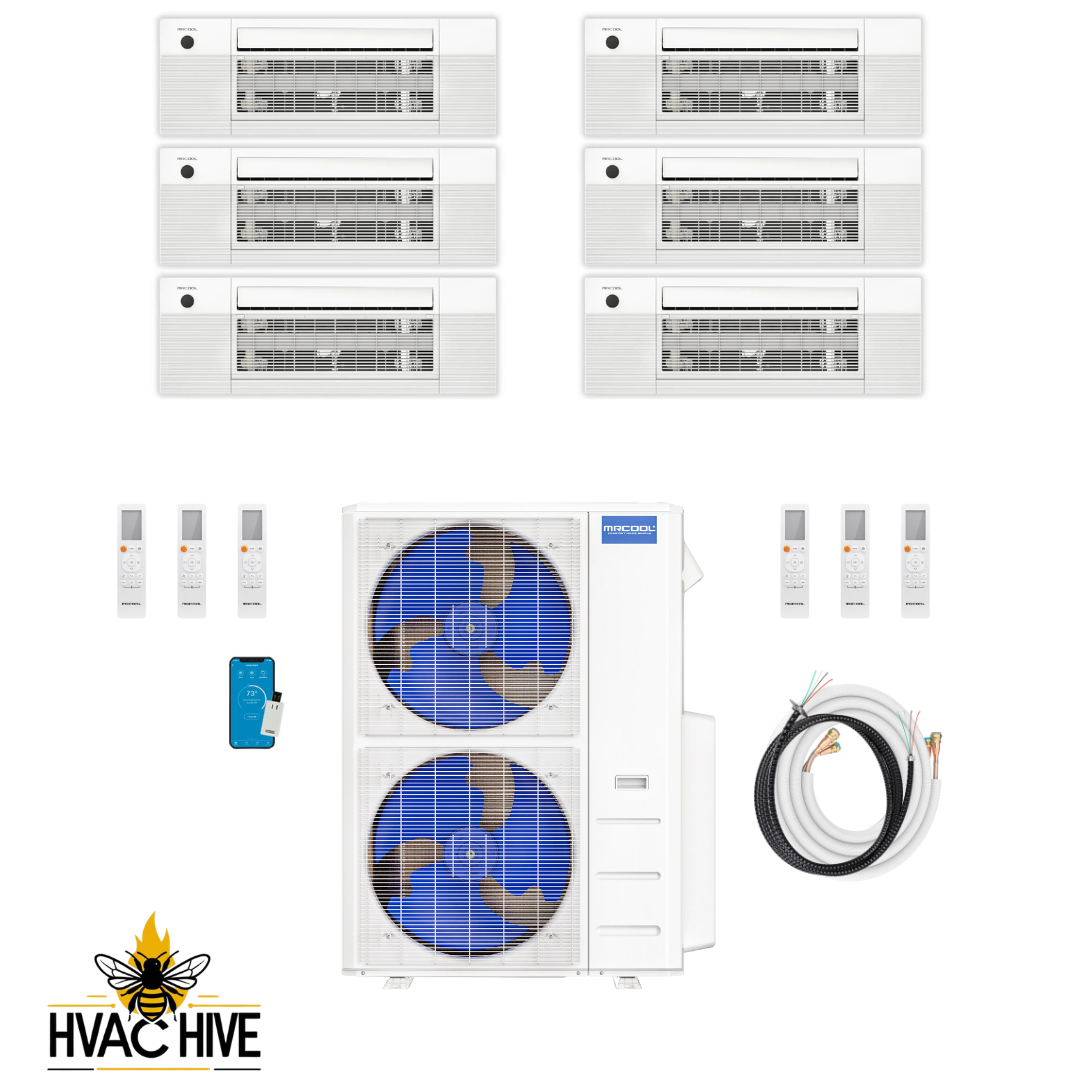

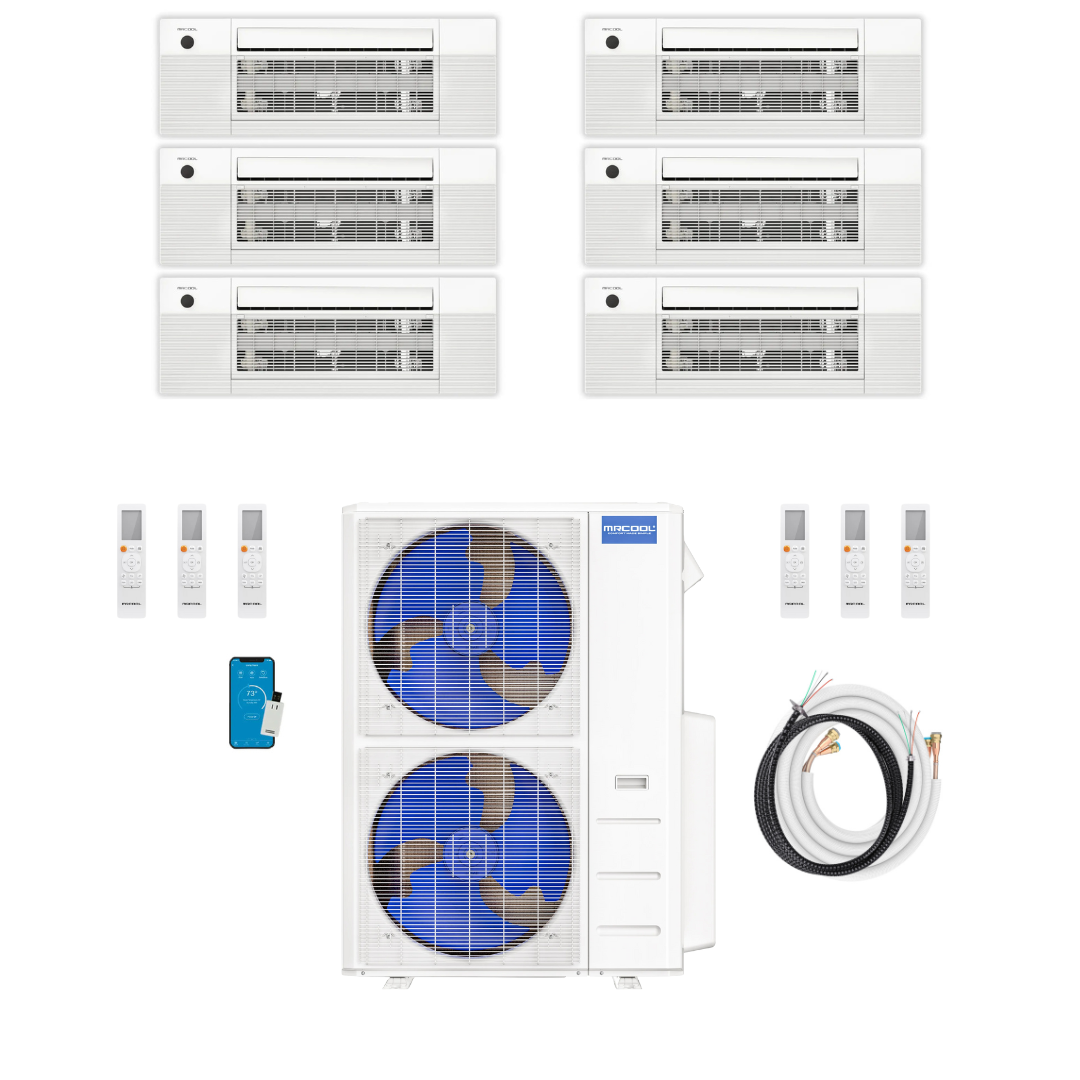

MRCOOL DIY 5th Gen Mini Split - 6-Zone 48,000 BTU Mini Split Condenser 230V with 12K + 9K + 9K + 9K + 9K + 9K Ceiling Cassette Air Handlers DIY5-6ZC-48HP-12K9K9K9K9K9K
SKU DIY5-6ZC-48HP-12K9K9K9K9K9K
In stock, ready to ship
FREE EXPRESS SHIPPING: Process orders in 1 business day
STRESS FREE RETURNS: 2 Year Returns
PREMIUM QUALITY: Top Tier Products, Even Better Customer Care
5 YEAR WARRANTY: We Believe In Our Products & Our Team
Save 22%
Original Price
$14,943.00
Current Price
$11,699.00
- Description
- Shipping and Return
- COVERAGE AREA
- Contact US
Description
MRCOOL DIY® 5th Gen 6‑Zone 48,000 BTU Mini Split – Large‑Room Ceiling Comfort
(12K + 9K + 9K + 9K + 9K + 9K Ceiling Cassette)
When you’re outfitting multiple large rooms, ceiling cassettes provide the power and coverage you need without taking up wall space. This setup is perfect for upscale homes, offices, or retail environments.
Why This System Belongs in Your Hive
- Six Zones, One Outdoor Unit — One 12K and five 9K ceiling cassette air handlers for large‑room coverage.
- Space‑Saving Design — Ceiling cassettes keep walls clear for a clean look.
- DIY‑Friendly Install — Pre‑charged R‑454B linesets mean no vacuum pump or special tools.
- Year‑Round Comfort — Heat pump technology ensures efficient climate control.
- Energy Efficiency That Wins Clients — High SEER ratings help lower energy costs.
- Fast Free Shipping — Delivered quickly so you can stay on schedule.
From one worker bee to another: this is the system for big, open spaces where style and performance must go hand in hand.
MRCOOL DIY® 5th Gen 48,000 BTU 6-Zone Mini Split Condenser 230v (DIY-MULTI6-48HP230D-O)
| Dimensions | 16.34" D x 52.48" H x 37.48" W |
|
SEER2 |
21.8 |
|
EER2 |
12 |
|
HSPF2-4 |
10 |
|
HSPF2-5 |
7.8 |
|
Tonnage |
4 |
|
Cooling Capacity (BTU) |
43000 |
|
Heating Capacity (BTU) |
48000 |
|
Voltage (V) |
208/230 |
|
Phase |
1 |
|
Cycle |
60 |
|
Max Fuse Breaker (A) |
45 |
|
Min Circuit Ampacity (A) |
40 |
|
Color |
White |
|
Zone Capacity |
6 |
|
Refrigerant Type |
R-454B |
|
Refrigerant Volume (OZ) |
148.15 |
|
Decibel Rating (DBA) |
64 |
|
Inverter |
DC |
|
Line Set Length |
25 |
|
Max Lineset Length (FT) |
221.4 |
|
Liquid LIne Size |
1/4 |
|
Suctio Line Size |
(3/8 X4) (1/2 X2) |
|
Compressor Motor Type |
Rotary |
|
Auxiliary Heater Included |
No |
|
Auxiliary Heater Available |
No |
|
Fan Only Option |
Yes |
|
Quiet Mode |
Yes |
|
Auto Cool |
Yes |
|
WIFI Compatibility |
Yes |
|
APP Compatibility |
Yes |
|
Works with IOS |
Yes |
|
Works with Android |
Yes |
|
UL Listed |
Yes |
|
ETL Listed |
Yes |
|
Energy Star Certified |
Yes |
|
AHRI Certified |
Yes |
|
Registered Warranty |
Extended Limited Lifetime* |
|
Base Parts Warranty |
5 |
|
Base Compressor Warranty |
7 |
|
Has Batteries |
Yes |
|
Contains Electronics |
Yes |
|
Contans Chemicals |
Yes |
|
Contains Aerosol |
Yes |
|
Contains Compressed Gas |
Yes |
|
Proposition 65 Warning |
Yes |
Manuals & Guides
| Brochure |
| Install Manual |
| Remote Manual |
| Accessory Manual |
| Warranty Doc |
| AHRI Cert |
| Energy Guide |

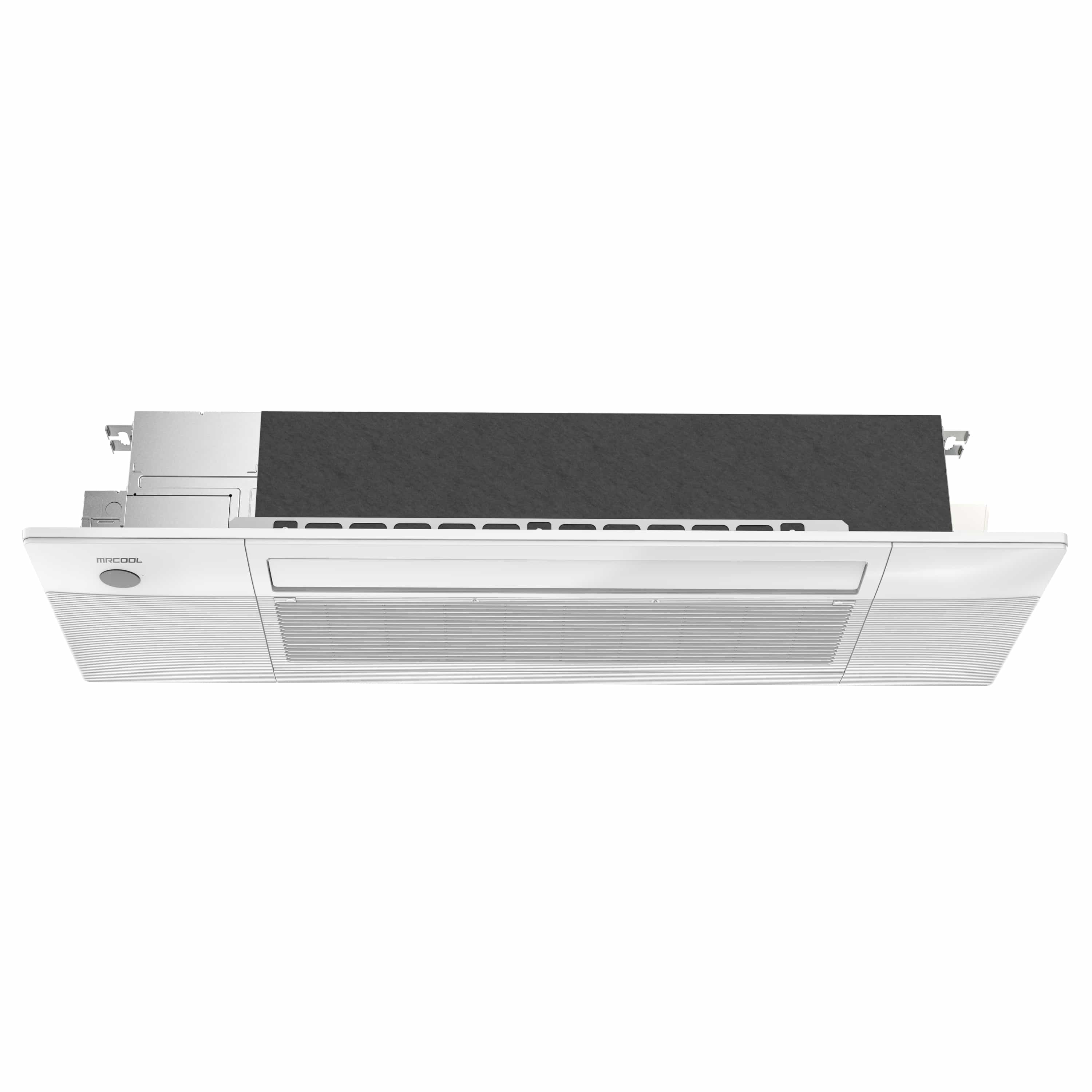

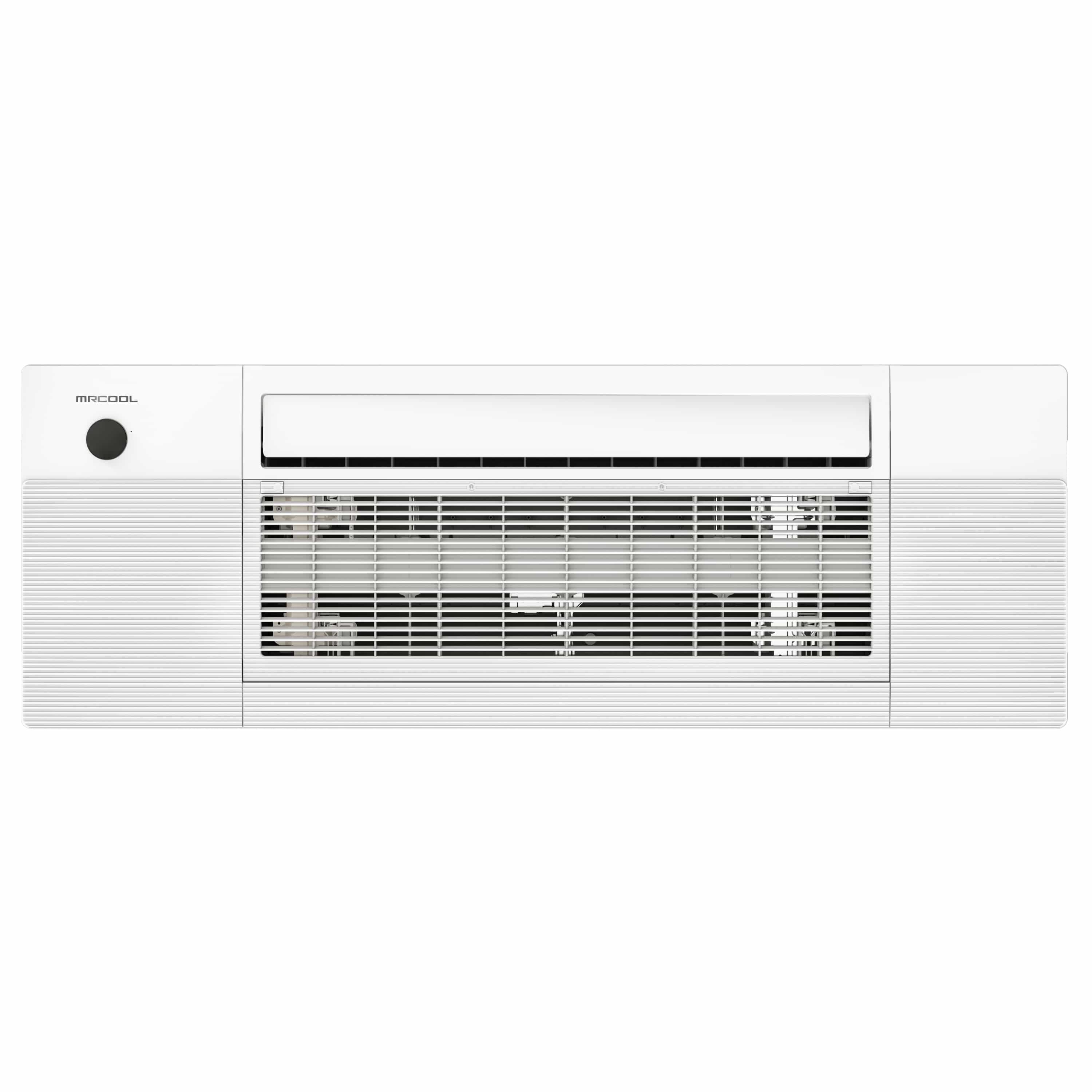

MRCOOL DIY® Series 5th Gen OuttaSight® 12K BTU 230V One-Way Ceiling Cassette Air Handler (DIYCASSETTE12HP-230D25-O)
|
Dimensions |
13.19" D x 8.98" H x 50.31" W |
|
CFM |
353 / 312 / 283 / 247 / 177 |
|
Voltage (V) |
208-230 |
|
Phase |
1 |
|
Cycle |
60 |
|
Max Fuse Breaker (A) |
15 |
|
Min Circuit Ampacity (A) |
3 |
|
Mount Type |
Ceiling |
|
Color |
White |
|
Rated Load |
1 |
|
Max Coverage Area |
550 |
|
Refrigerant Type |
R-454B |
|
Decibel Rating (DBA) |
37 |
|
Decibel Rating Low (DBA) |
24 |
|
Decibel Rating High (DBA) |
41 |
|
Air Flow Direction |
1-Way |
|
Liquid Line Size |
1/4 |
|
Suction Line Size |
3/8 |
|
Blower Motor RPM |
1075/982/797 |
|
Filter Type |
Reusable |
|
Fan Only Option |
Yes |
|
Quiet Mode |
Yes |
|
Sleep Mode |
Yes |
|
Auto Cool |
Yes |
|
WIFI Compatibility |
Yes |
|
APP Compatibility |
Yes |
|
Works with IOS |
Yes |
|
Works with Android |
Yes |
|
Remote Control Included |
Yes |
|
Registered Warranty |
Limited Lifetime Compressor |
|
Base Warranty |
5-Year Part/7-Year Compressor |
|
Bas Parts Warranty |
5 Years |
|
Registered Compressor Warranty |
Limited Lifetime Compressor |
|
Base Compressor Warranty |
7 Years |
|
Has Batteries |
Yes |
|
Contains Electronics |
Yes |
|
Contains Chemicals |
Yes |
|
Contains Aerosol |
Yes |
|
Contains Compressed Gas |
Yes |
|
Proposition 65 Warning |
Yes |
|
Restricted States |
GU;PR;VI |
|
Net Weight (Lbs) |
45 |
|
Gross Weight (Lbs) |
88 |
Manuals & Guides
| Brochure |
| Install Mnaual |
| Remote Manual |
| Service Manual |
| Warrany Doc |
MRCOOL DIY® Series 5th Gen OuttaSight® 9K BTU 230V One-Way Ceiling Cassette Air Handler (DIYCASSETTE09HP-230D25-O) X5
|
Dimensions |
13.19" D x 8.98" H x 50.31" W |
|
CFM |
341 / 294 / 259 / 235 / 235 |
|
Voltage (V) |
208-230 |
|
Phase |
1 |
|
Cycle |
60 |
|
Max Fuse Breaker (A) |
15 |
|
Min Circuit Ampacity (A) |
3 |
|
Mount Type |
Ceiling |
|
Color |
White |
|
Rated Load |
0.8 |
|
Max Coverage Area |
400 |
|
Refrigerant Type |
R-454B |
|
Decibel Rating (DBA) |
36 |
|
Decibel Rating Low (DBA) |
24 |
|
Decibel Rating High (DBA) |
38 |
|
Air Flow Direction |
1-Way |
|
Liquid Line Size |
1/4 |
|
Suction Line Size |
3/8 |
|
Blower Motor RPM |
1104/994/784 |
|
Filter Type |
Reusable |
|
Fan Only Option |
Yes |
|
Quiet Mode |
Yes |
|
Sleep Mode |
Yes |
|
Auto Cool |
Yes |
|
WIFI Compatibility |
Yes |
|
APP Compatibility |
Yes |
|
Works with IOS |
Yes |
|
Works with Android |
Yes |
|
Remote Control Included |
Yes |
|
Registered Warranty |
Limited Lifetime Compressor |
|
Base Warranty |
5-Year Part/7-Year Compressor |
|
Bas Parts Warranty |
5 Years |
|
Registered Compressor Warranty |
Limited Lifetime Compressor |
|
Base Compressor Warranty |
7 Years |
|
Has Batteries |
Yes |
|
Contains Electronics |
Yes |
|
Contains Chemicals |
Yes |
|
Contains Aerosol |
Yes |
|
Contains Compressed Gas |
Yes |
|
Proposition 65 Warning |
Yes |
|
Restricted States |
GU;PR;VI |
|
Net Weight (Lbs) |
45 |
|
Gross Weight (Lbs) |
88 |
Manuals & Guides
| Brochure |
| Install Mnaual |
| Remote Manual |
| Service Manual |
| Warrany Doc |
MRCOOL® Remote Control for 5th Gen DIY and Advantage Series Mini Split Systems X6
| Dimensions | 2" W x 6" L x 1" H |
| Works with | MRCOOL DIY 5th Generation Mini Splits |
| Restricted States | GU;PR;VI |
| Color | White |
