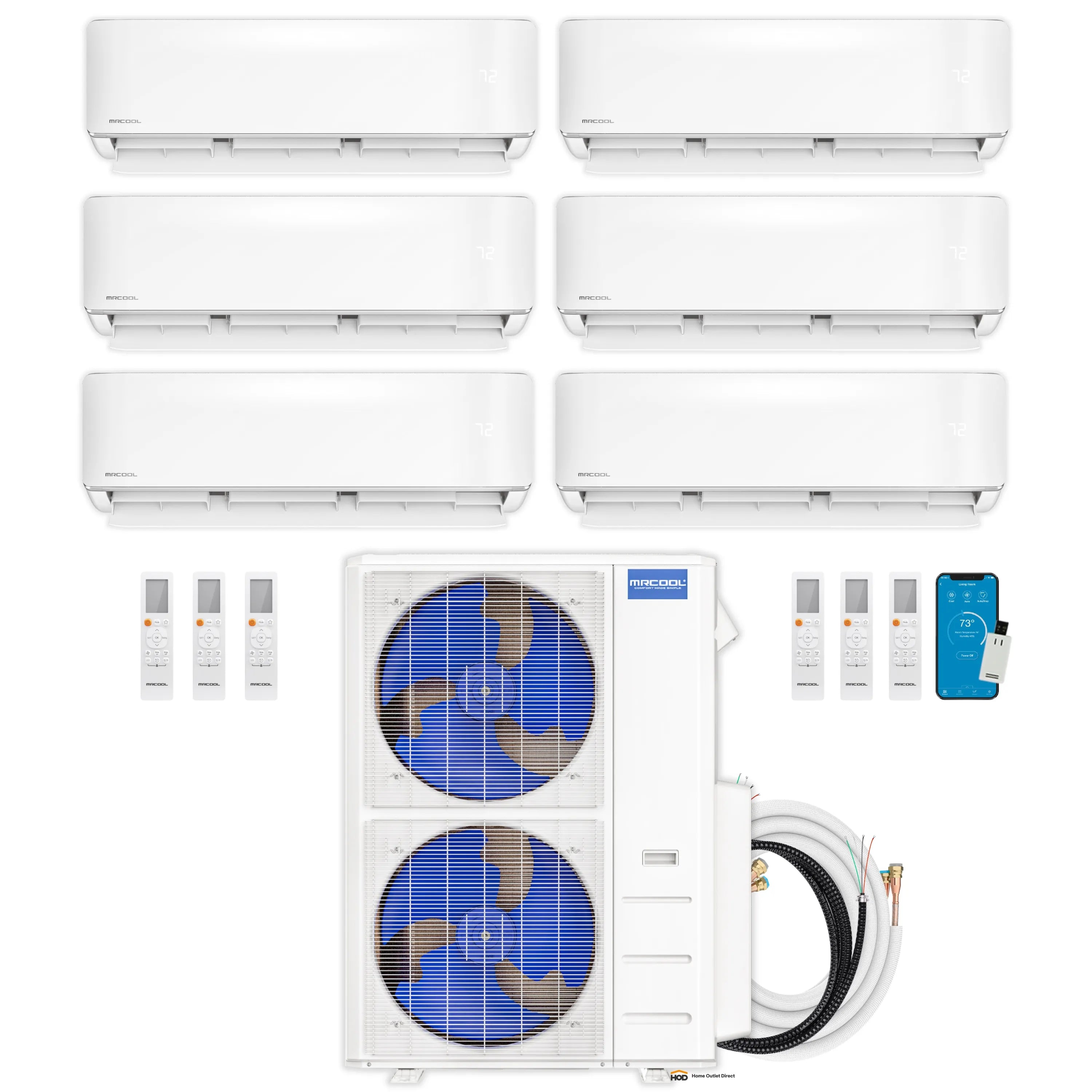

MRCOOL DIY® 5th Gen 6‑Zone 55,000 BTU Mini Split – Wall‑Mounted Medium and Small Mix
(18K + 9K + 9K + 9K + 6K + 6K Wall Mount)
With one extra‑large space, three medium, and two smaller zones, this wall‑mounted system offers versatile comfort control.
Why This System Belongs in Your Hive
-
Six Zones, One Outdoor Unit — One 18K, three 9K, and two 6K wall‑mounted air handlers.
-
DIY‑Friendly Install — Pre‑charged R‑454B linesets mean no vacuum pump required.
-
Year‑Round Comfort — Heat pump technology provides both heating and cooling.
-
Energy Efficiency That Wins Clients — High SEER ratings help lower operating costs.
-
Quiet Performance — Low‑noise design for peaceful environments.
-
Fast Free Shipping — Delivered quickly to keep projects on track.
Hive‑tested, installer‑approved: wall‑mounted mixed‑capacity layout.
MRCOOL DIY® 5th Gen 55,000 BTU 6-Zone Mini Split Condenser 230v (DIY-MULTI6-55HP230D-O)
| Dimensions |
16.34" D x 52.48" H x 37.48" W |
|
SEER2
|
22
|
|
EER2
|
12
|
|
HSPF2-4
|
10.6
|
|
HSPF2-5
|
8.5
|
|
Tonnage
|
4.6
|
|
Cooling Capacity (BTU)
|
47000
|
|
Heating Capacity (BTU)
|
55000
|
|
Voltage (V)
|
208/230
|
|
Phase
|
1
|
|
Cycle
|
60
|
|
Max Fuse Breaker (A)
|
45
|
|
Min Circuit Ampacity (A)
|
43
|
|
Color
|
White
|
|
Zone Capacity
|
6
|
|
Refrigerant Type
|
R-454B
|
|
Refrigerant Volume (OZ)
|
151.68
|
|
Decibel Rating (DBA)
|
64
|
|
Inverter
|
DC
|
|
Line Set Length
|
25
|
|
Max Lineset Length (FT)
|
221.4
|
|
Liquid LIne Size
|
1/4
|
|
Suctio Line Size
|
(3/8 X4) (1/2 X2) |
|
Compressor Motor Type
|
Rotary
|
|
Auxiliary Heater Included
|
No
|
|
Auxiliary Heater Available
|
No
|
|
Fan Only Option
|
Yes
|
|
Quiet Mode
|
Yes
|
|
Auto Cool
|
Yes
|
|
WIFI Compatibility
|
Yes
|
|
APP Compatibility
|
Yes
|
|
Works with IOS
|
Yes
|
|
Works with Android
|
Yes
|
|
UL Listed
|
Yes
|
|
ETL Listed
|
Yes
|
|
Energy Star Certified
|
Yes
|
|
AHRI Certified
|
Yes
|
|
Registered Warranty
|
Extended Limited Lifetime*
|
|
Base Parts Warranty
|
5
|
|
Base Compressor Warranty
|
7
|
|
Has Batteries
|
Yes
|
|
Contains Electronics
|
Yes
|
|
Contans Chemicals
|
Yes
|
|
Contains Aerosol
|
Yes
|
|
Contains Compressed Gas
|
Yes
|
|
Proposition 65 Warning
|
Yes
|
Manuals & Guides

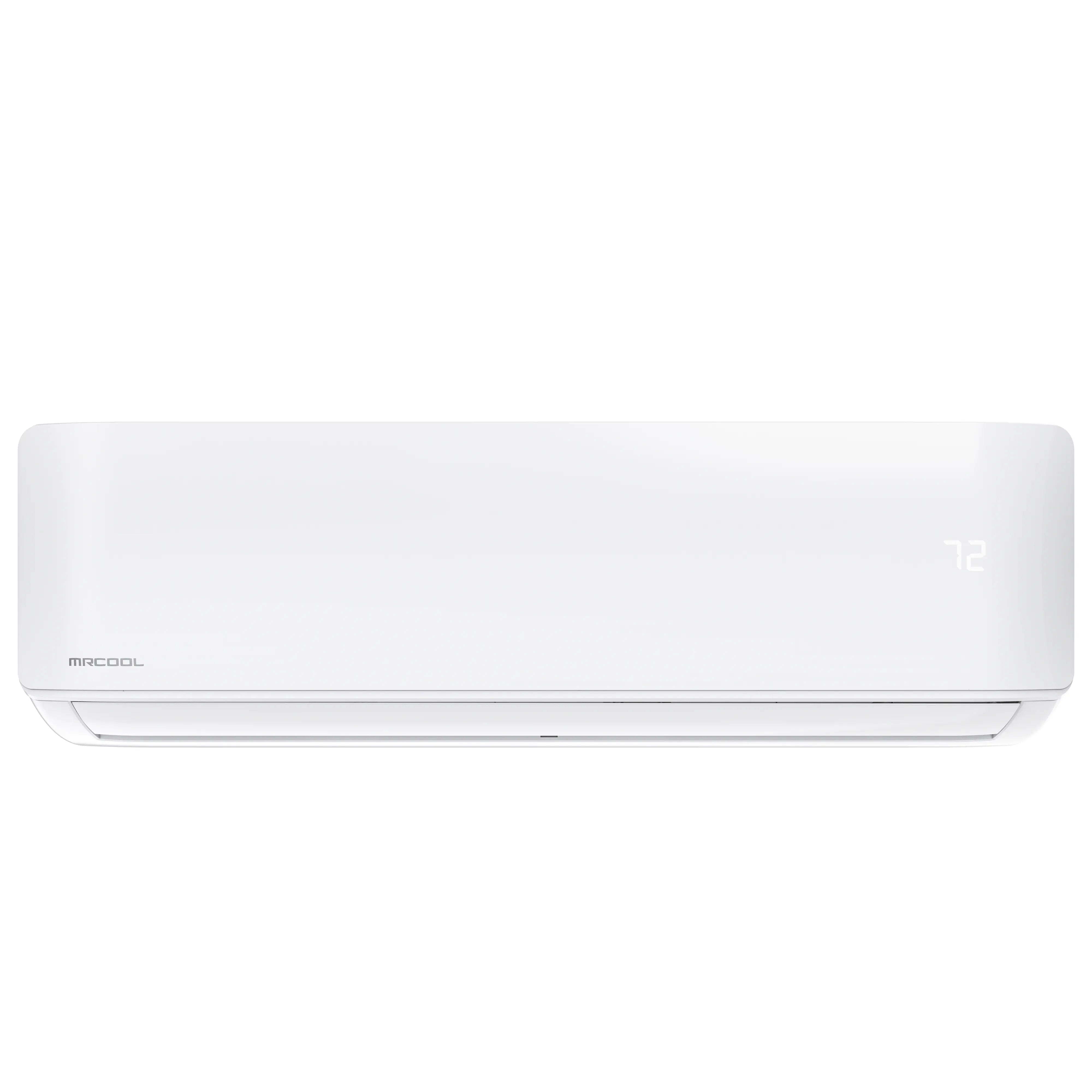

MRCOOL DIY® 5th Gen E Star 18,000 BTU Multi Zone Mini Split Air Handler 230V (DIY-18-HP-WMAH-230D25-O)
|
Dimensions
|
8.9" D x 13.19" H x 42.52" W
|
|
Tonnage
|
1.5
|
|
Voltage (V)
|
208/230
|
|
Phase
|
1
|
|
Cycle
|
60
|
|
Max Fuse Breaker (A)
|
15
|
|
Min Circuit Ampacity (A)
|
3
|
|
Mount Type
|
Wall
|
|
Color
|
White
|
|
Max Coverage Area
|
800 sqft
|
|
Decibel Rating Low (DBA)
|
19
|
|
Decibel Rating High (DBA)
|
54.5
|
|
Number of Speeds
|
5
|
|
Oscillation
|
Yes
|
|
Liquid Line Size
|
1/4
|
|
Suction Line Size
|
1/2
|
|
Filter Type
|
Reusable
|
|
Auxiliary Heater Included
|
No
|
|
Auxiliary Heater Available
|
No
|
|
Fan Only Option
|
Yes
|
|
Quiet Mode
|
Yes
|
|
Auto Cool
|
Yes
|
|
WIFI Compatibility
|
Yes
|
|
APP Compatibility
|
Yes
|
|
Works with IOS
|
Yes
|
| Works with Android |
|
|
Remote Control Included
|
Yes
|
|
UL Listed
|
Yes
|
|
ETL Listed
|
Yes
|
| Energy Star Certified |
|
|
AHRI Certified
|
Yes
|
|
Registered Warranty
|
Extended Limited Lifetime*
|
|
Base Parts Warranty
|
5
|
|
Base Compressor Warranty
|
7
|
|
Has Batteries
|
Yes
|
|
Contains Electronics
|
Yes
|
|
Contains Chemicals
|
Yes
|
|
Contains Aerosol
|
Yes
|
|
Contains Compressed Gas
|
Yes
|
|
Proposition 65 Warning
|
Yes
|
|
Net Weight (Lbs)
|
35.49
|
|
Gross Depth (In)
|
17.68
|
|
Gross Height (In)
|
14.29
|
|
Gross Width (In)
|
46.73
|
|
Gross Weight (Lbs)
|
49.6
|
Manuals & Guides
MRCOOL DIY® 5th Gen 9,000 BTU Multi-Zone Mini Split Air Handler 230V (DIY-09-HP-WMAH-230D25-O) X3
| Dimensions |
7.44" D x 11.69" H x 31.57" W |
|
Voltage (V)
|
208/230
|
|
Phase
|
1
|
|
Cycle
|
60
|
|
Mount Type
|
Wall
|
|
Color
|
White
|
|
Max Coverage Area
|
400 sqft
|
|
Oscillation
|
Yes
|
|
Filter Type
|
Reusable
|
|
Auxiliary Heater Included
|
No
|
|
Auxiliary Heater Available
|
No
|
|
Fan Only Option
|
Yes
|
|
Quiet Mode
|
Yes
|
|
Auto Cool
|
Yes
|
|
WIFI Compatibility
|
Yes
|
|
APP Compatibility
|
Yes
|
|
Works with IOS
|
Yes
|
|
Works with Android
|
Yes
|
|
Remote Control Included
|
Yes
|
|
UL Listed
|
Yes
|
|
ETL Listed
|
Yes
|
|
AHRI Certified
|
Yes
|
|
Registered Warranty
|
Extended Limited Lifetime*
|
|
Base Parts Warranty
|
5
|
|
Base Compressor Warranty
|
7
|
|
Has Batteries
|
Yes
|
|
Contains Electronics
|
Yes
|
|
Contains Chemicals
|
Yes
|
|
Contains Aerosol
|
Yes
|
|
Contains Compressed Gas
|
Yes
|
|
Proposition 65 Warning
|
Yes
|
Manuals & Guides
MRCOOL DIY® 5th Gen 6,000 BTU Multi-Zone Mini Split Air Handler 230V (DIY-06-HP-WMAH-230D25-O) X2
| Dimensions |
7.44" D x 11.69" H x 31.57" W |
|
Voltage (V)
|
208/230
|
|
Phase
|
1
|
|
Cycle
|
60
|
|
Mount Type
|
Wall
|
|
Color
|
White
|
|
Max Coverage Area
|
200 sqft
|
|
Oscillation
|
Yes
|
|
Filter Type
|
Reusable
|
|
Auxiliary Heater Included
|
No
|
|
Auxiliary Heater Available
|
No
|
|
Fan Only Option
|
Yes
|
|
Quiet Mode
|
Yes
|
|
Auto Cool
|
Yes
|
|
WIFI Compatibility
|
Yes
|
|
APP Compatibility
|
Yes
|
|
Works with IOS
|
Yes
|
|
Works with Android
|
Yes
|
|
Remote Control Included
|
Yes
|
|
UL Listed
|
Yes
|
|
ETL Listed
|
Yes
|
|
AHRI Certified
|
Yes
|
|
Registered Warranty
|
Extended Limited Lifetime*
|
|
Base Parts Warranty
|
5
|
|
Base Compressor Warranty
|
7
|
|
Has Batteries
|
Yes
|
|
Contains Electronics
|
Yes
|
|
Contains Chemicals
|
Yes
|
|
Contains Aerosol
|
Yes
|
|
Contains Compressed Gas
|
Yes
|
|
Proposition 65 Warning
|
Yes
|
Manuals & Guides
MRCOOL® Remote Control for 5th Gen DIY and Advantage Series Mini Split Systems X6
| Dimensions |
2" W x 6" L x 1" H |
| Works with |
MRCOOL DIY 5th Generation Mini Splits |
| Restricted States |
GU;PR;VI |
| Color |
White |
