MRCOOL DIY 5th Gen Mini Split - 6-Zone 55,000 BTU Mini Split Condenser 230V with 18K + 6K + 6K + 6K + 6K + 6K Ceiling Cassette Air Handlers DIY5-6ZC-55HP-18K6K6K6K6K6K

SKU DIY5-6ZC-55HP-18K6K6K6K6K6K
by MRCOOL
Authorized Dealer Official
100% Authentic Guarantee
In stock, ready to ship

Fast shipping icon FREE EXPRESS SHIPPING: Process orders in 1 business day

Returns icon STRESS FREE RETURNS: 2 Year Returns

VIP icon PREMIUM QUALITY: Top Tier Products, Even Better Customer Care

Warranty icon 5 YEAR WARRANTY: We Believe In Our Products & Our Team

Professional installation icon PROFESSIONAL INSTALLATION: Get connected with certified, licensed installers in your area - Request installer quotes

Save $3,184.00
Original Price $14,993.00
Current Price $11,809.00

Notify me when back in stock

Estimated Shipping Widget will be displayed here!

Sticky Add to Cart Button
Description

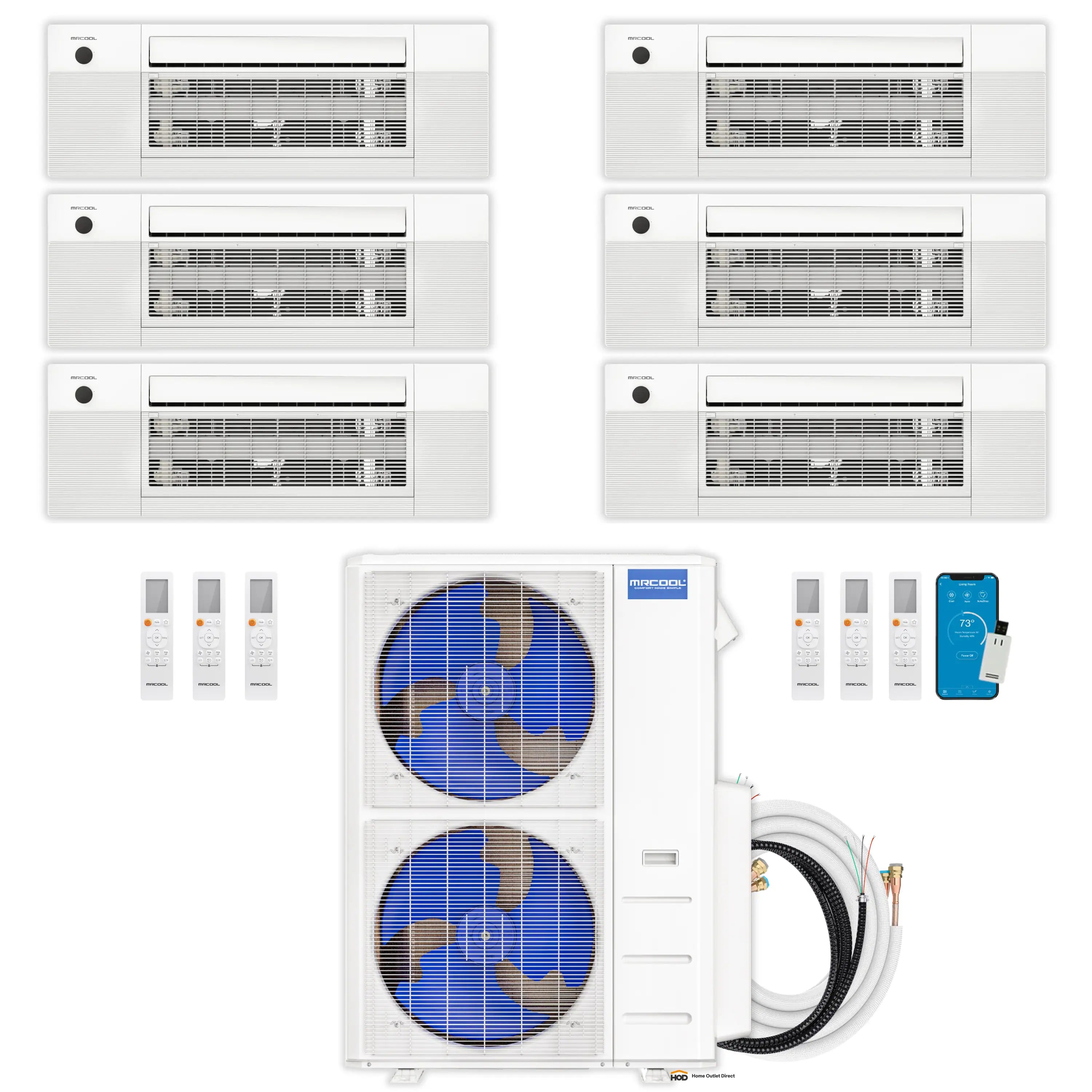

MRCOOL DIY® 5th Gen 6‑Zone 55,000 BTU Mini Split – Ceiling Cassette Mostly Small Zones

(18K + 6K + 6K + 6K + 6K + 6K Ceiling Cassette)

For one extra‑large space and five smaller zones, this ceiling cassette setup offers discreet, efficient comfort.

Why This System Belongs in Your Hive

  • Six Zones, One Outdoor Unit — One 18K and five 6K ceiling cassette air handlers.

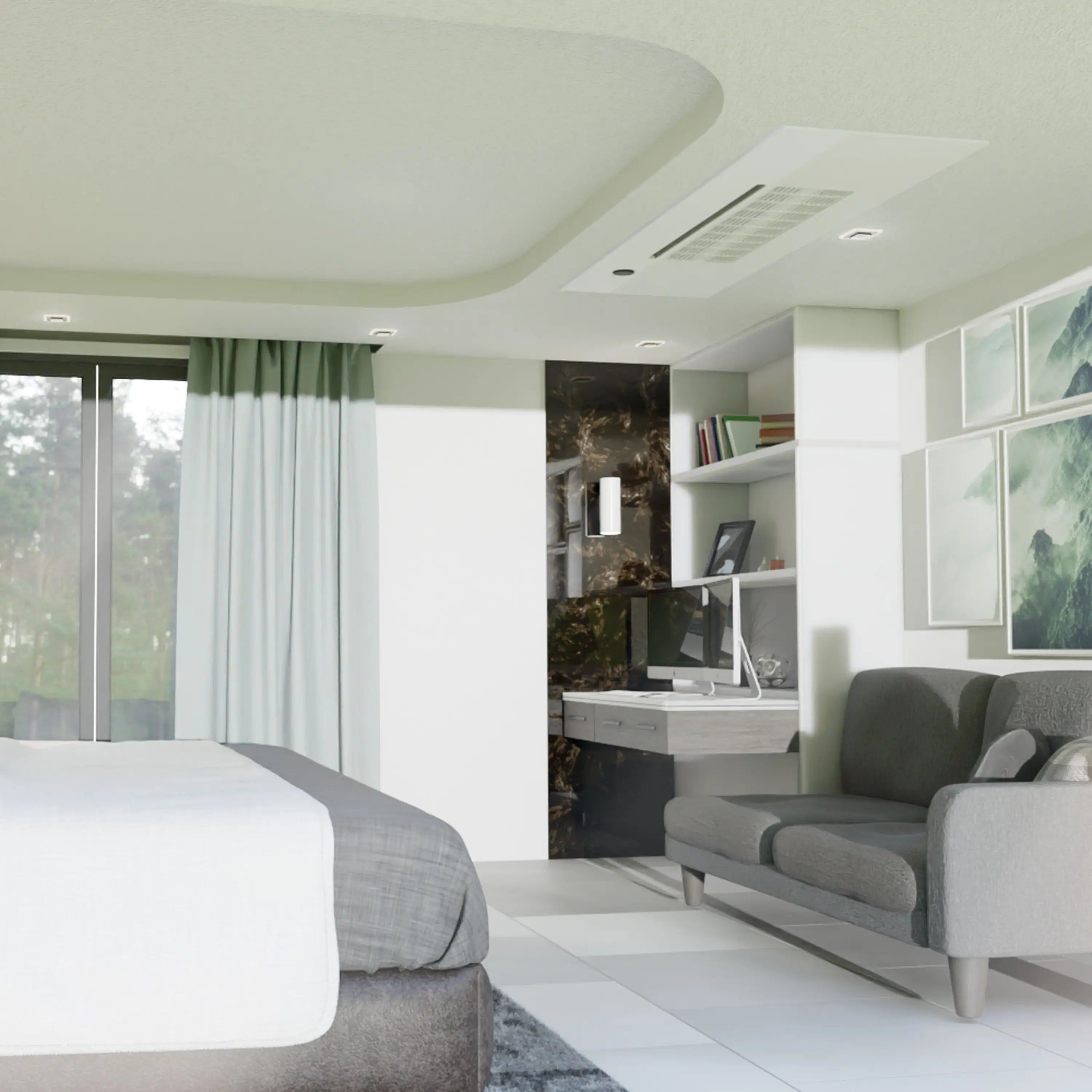

  • Space‑Saving Design — Flush‑mount cassettes blend into ceilings.
  • DIY‑Friendly Install — Pre‑charged R‑454B linesets mean no vacuum pump required.
  • Year‑Round Comfort — Heat pump technology ensures efficient heating and cooling.
  • Energy Efficiency That Wins Clients — High SEER ratings help lower operating costs.
  • Fast Free Shipping — Delivered quickly to keep projects moving.

Hive‑tested, installer‑approved: ceiling cassette small‑zone emphasis.



MRCOOL DIY® 5th Gen 55,000 BTU 6-Zone Mini Split Condenser 230v (DIY-MULTI6-55HP230D-O)

Dimensions 16.34" D x 52.48" H x 37.48" W

SEER2

22

EER2

12

HSPF2-4

10.6

HSPF2-5

8.5

Tonnage

4.6

Cooling Capacity (BTU)

47000

Heating Capacity (BTU)

55000

Voltage (V)

208/230

Phase

1

Cycle

60

Max Fuse Breaker (A)

45

Min Circuit Ampacity (A)

43

Color

White

Zone Capacity

6

Refrigerant Type

R-454B

Refrigerant Volume (OZ)

151.68

Decibel Rating (DBA)

64

Inverter

DC

Line Set Length

25

Max Lineset Length (FT)

221.4

Liquid LIne Size

1/4

Suctio Line Size

(3/8 X4) (1/2 X2)

Compressor Motor Type

Rotary

Auxiliary Heater Included

No

Auxiliary Heater Available

No

Fan Only Option

Yes

Quiet Mode

Yes

Auto Cool

Yes

WIFI Compatibility

Yes

APP Compatibility

Yes

Works with IOS

Yes

Works with Android

Yes

UL Listed

Yes

ETL Listed

Yes

Energy Star Certified

Yes

AHRI Certified

Yes

Registered Warranty

Extended Limited Lifetime*

Base Parts Warranty

5

Base Compressor Warranty

7

Has Batteries

Yes

Contains Electronics

Yes

Contans Chemicals

Yes

Contains Aerosol

Yes

Contains Compressed Gas

Yes

Proposition 65 Warning

Yes



Manuals & Guides

Brochure
Install Manual
Remote Manual
Accessory Manual
Warranty Doc
AHRI Cert
Energy Guide

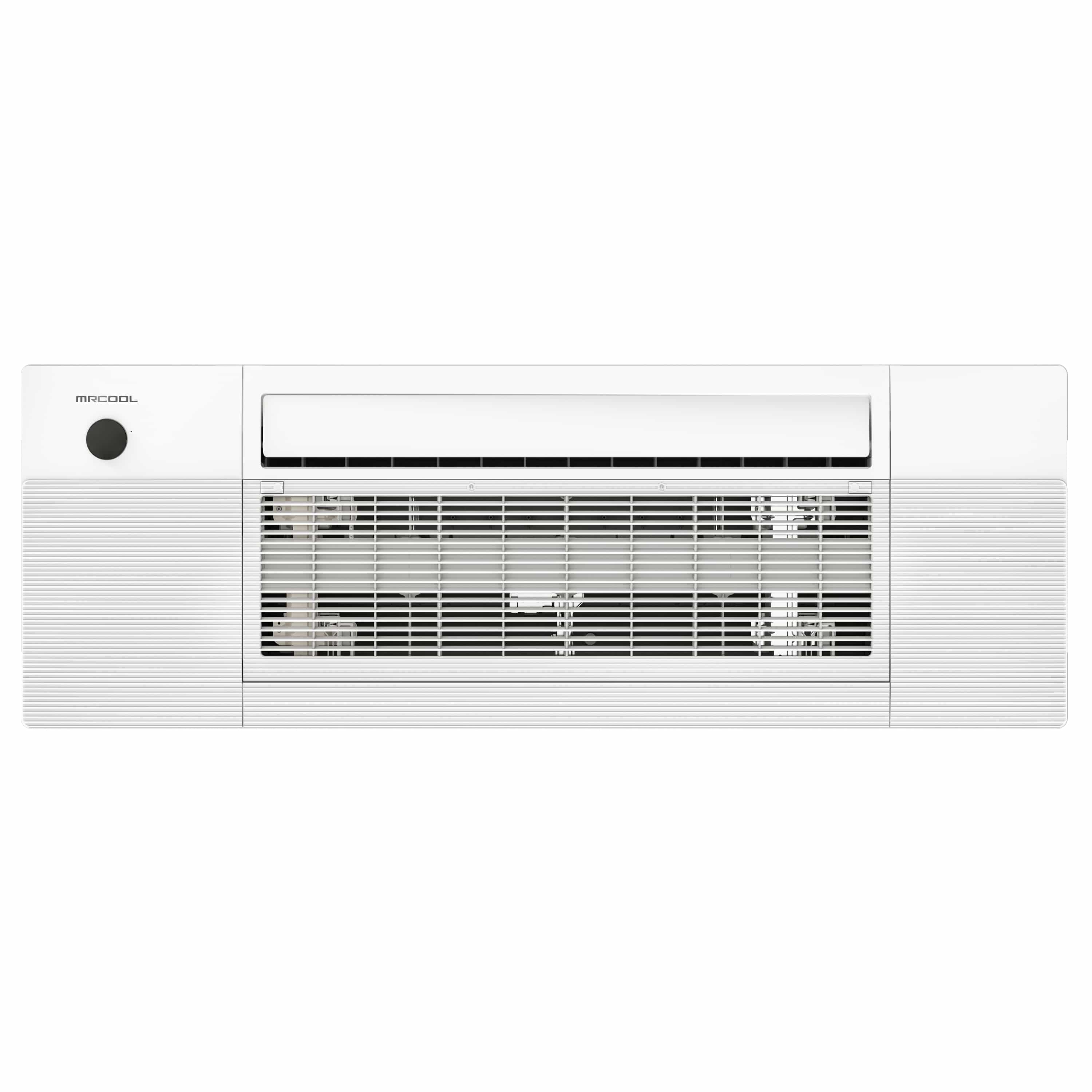

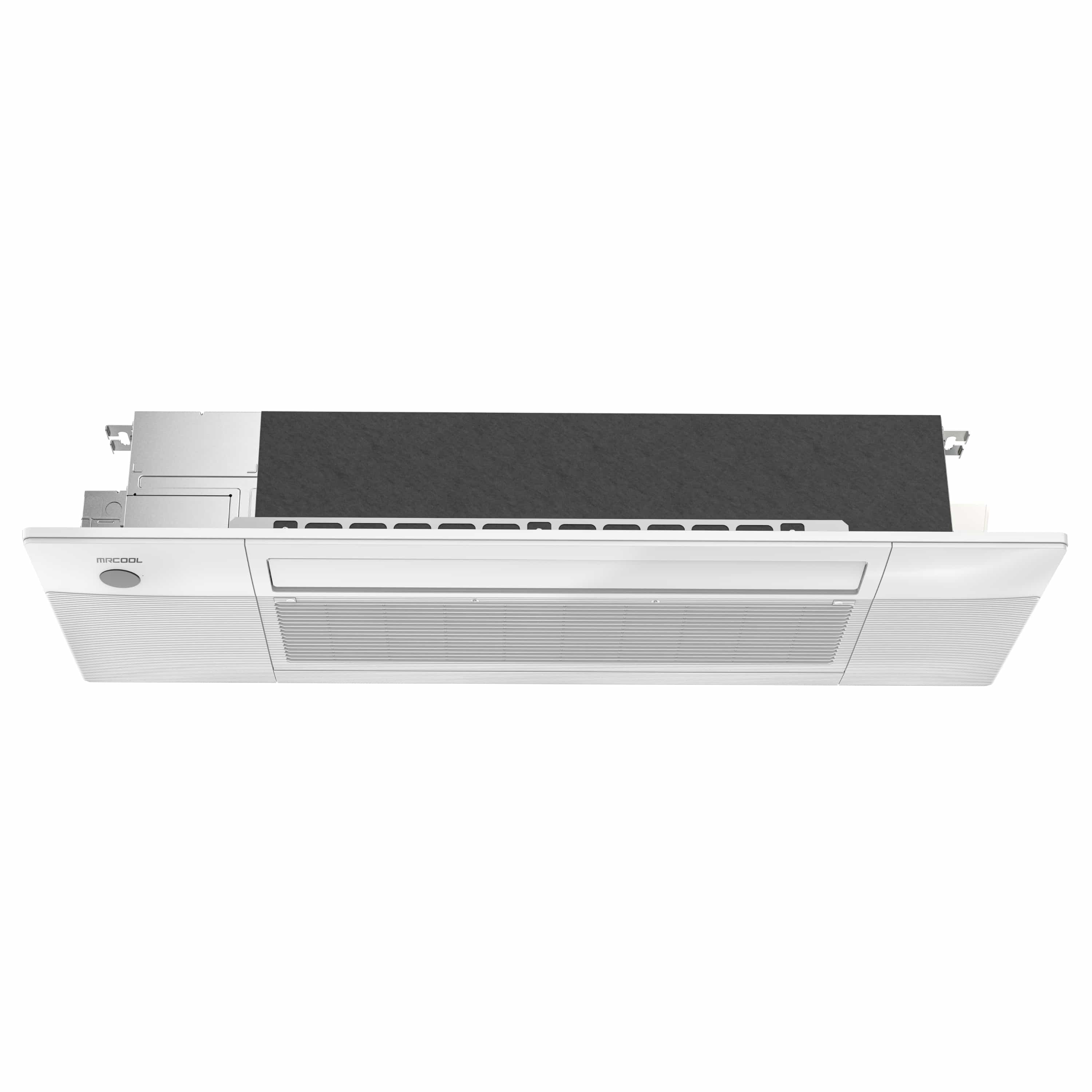

MRCOOL DIY® Series 5th Gen OuttaSight® 18K BTU 230V One-Way Ceiling Cassette Air Handler (DIYCASSETTE18HP-230D25-O)

Dimensions

13.19" D x 8.98" H x 50.31" W

CFM

400 / 352 / 300 / 207 / 207

Cooling Capacity (BTU)

18800

Heating Capacity (BTU)

22700

Voltage (V)

208-230

Phase

1

Cycle

60

Max Fuse Breaker (A)

15

Min Circuit Ampacity (A)

3

Mount Type

Ceiling

Color

White

Rated Load

1.2

Max Coverage Area

800

Refrigerant Type

R-454B

Decibel Rating (DBA)

41.5

Decibel Rating Low (DBA)

26

Decibel Rating High (DBA)

44

Air Flow Direction

1-Way

Liquid Line Size

1/4

Suction Line Size

1/2

Blower Motor RPM

1344/1184/1024

Filter Type

Reusable

Fan Only Option

Yes

Quiet Mode

Yes

Sleep Mode

Yes

Auto Cool

Yes

WIFI Compatibility

Yes

APP Compatibility

Yes

Works with IOS

Yes

Works with Android

Yes

Remote Control Included

Yes

Registered Warranty

Limited Lifetime Compressor

Base Warranty

5-Year Part/7-Year Compressor

Bas Parts Warranty

5 Years

Registered Compressor Warranty

Limited Lifetime Compressor

Base Compressor Warranty

7 Years

Has Batteries

Yes

Contains Electronics

Yes

Contains Chemicals

Yes

Contains Aerosol

Yes

Contains Compressed Gas

Yes

Proposition 65 Warning

Yes

Restricted States

GU;PR;VI

Net Weight (Lbs)

45

Gross Weight (Lbs)

88



Manuals & Guides

Brochure
Install Mnaual
Remote Manual
Service Manual
Warrany Doc



MRCOOL DIY® Series 5th Gen OuttaSight® 6K BTU 230V One-Way Ceiling Cassette Air Handler (DIYCASSETTE06HP-230D25-O) X5

Dimensions

13.19" D x 8.98" H x 50.31" W

CFM

341 / 294 / 259 / 235 / 235

Voltage (V)

208-230

Phase

1

Cycle

60

Max Fuse Breaker (A)

15

Min Circuit Ampacity (A)

3

Mount Type

Ceiling

Color

White

Rated Load

0.8

Max Coverage Area

200

Refrigerant Type

R-454B

Decibel Rating (DBA)

35.5

Decibel Rating Low (DBA)

23.5

Decibel Rating High (DBA)

46.5

Air Flow Direction

1-Way

Liquid Line Size

1/4

Suction Line Size

3/8

Blower Motor RPM

1024/944/784

Filter Type

Reusable

Fan Only Option

Yes

Quiet Mode

Yes

Sleep Mode

Yes

Auto Cool

Yes

WIFI Compatibility

Yes

APP Compatibility

Yes

Works with IOS

Yes

Works with Android

Yes

Remote Control Included

Yes

Registered Warranty

Limited Lifetime Compressor

Base Warranty

5-Year Part/7-Year Compressor

Bas Parts Warranty

5 Years

Registered Compressor Warranty

Limited Lifetime Compressor

Base Compressor Warranty

7 Years

Has Batteries

Yes

Contains Electronics

Yes

Contains Chemicals

Yes

Contains Aerosol

Yes

Contains Compressed Gas

Yes

Proposition 65 Warning

Yes

Restricted States

GU;PR;VI

Net Weight (Lbs)

45

Gross Weight (Lbs)

88



Manuals & Guides

Brochure
Install Mnaual
Remote Manual
Service Manual
Warrany Doc



MRCOOL® Remote Control for 5th Gen DIY and Advantage Series Mini Split Systems X6

Dimensions 2" W x 6" L x 1" H
Works with MRCOOL DIY 5th Generation Mini Splits
Restricted States GU;PR;VI
Color White
Shipping and Return

We offer Free Express Shipping on all of our products. Handling times are 1-2 business days and Delivery takes roughly 3-14 Business days

For more Shipping information visit here

We offer a 2 Year (730 Day) return for our products.

For more Return information visit here

COVERAGE AREA

HIVE WARRANTY

HVAC Hive Warranty Information:

HVAC Hive is an authorized dealer for every product on our website. Every HVAC system and component comes with its original manufacturer's warranty, guaranteeing you receive a functional, quality product.

Our 5-Year Parts & Labor Warranty Promise: We go beyond the standard coverage. If a manufacturer's warranty doesn't cover your product for a full 5 years, HVAC Hive will extend both parts and labor warranty to complete the 5-year coverage period.

Example: If your manufacturer covers 2 years parts & labor, we'll cover an additional 3 years — giving you a full 5 years of parts and labor protection.

Warranty Coverage Includes:

  • Parts replacement for manufacturing defects
  • Labor costs for covered repairs
  • System malfunctions and component failures

Warranty Details:

  • Residential, light commercial, and full commercial warranties vary based on your usage
  • Specific warranty terms and coverage periods are listed on each product page
  • Both parts and labor are covered under our extended warranty program

Making a Warranty Claim: Contact our Worker Bee Support team at 1-888-712-2465 or karim@hvachive.com . We'll handle your claim quickly and professionally, covering both parts and labor costs. You can also contact the manufacturer directly if preferred.

Questions? Need help understanding your parts & labor warranty coverage? Our team is here to explain the details and ensure you're fully protected.
