MRCOOL DIY 5th Gen Mini Split - 6-Zone 48,000 BTU Mini Split Condenser 230V with 12K + 12K + 9K + 9K + 6K + 6K Wall Mount Air Handlers DIY5-6Z-48HP-12K12K9K9K6K6K
SKU DIY5-6Z-48HP-12K12K9K9K6K6K
In stock, ready to ship
FREE EXPRESS SHIPPING: Process orders in 1 business day
STRESS FREE RETURNS: 2 Year Returns
PREMIUM QUALITY: Top Tier Products, Even Better Customer Care
5 YEAR WARRANTY: We Believe In Our Products & Our Team
Save 24%
Original Price
$8,693.00
Current Price
$6,584.00
- Description
- Shipping and Return
- COVERAGE AREA
Description

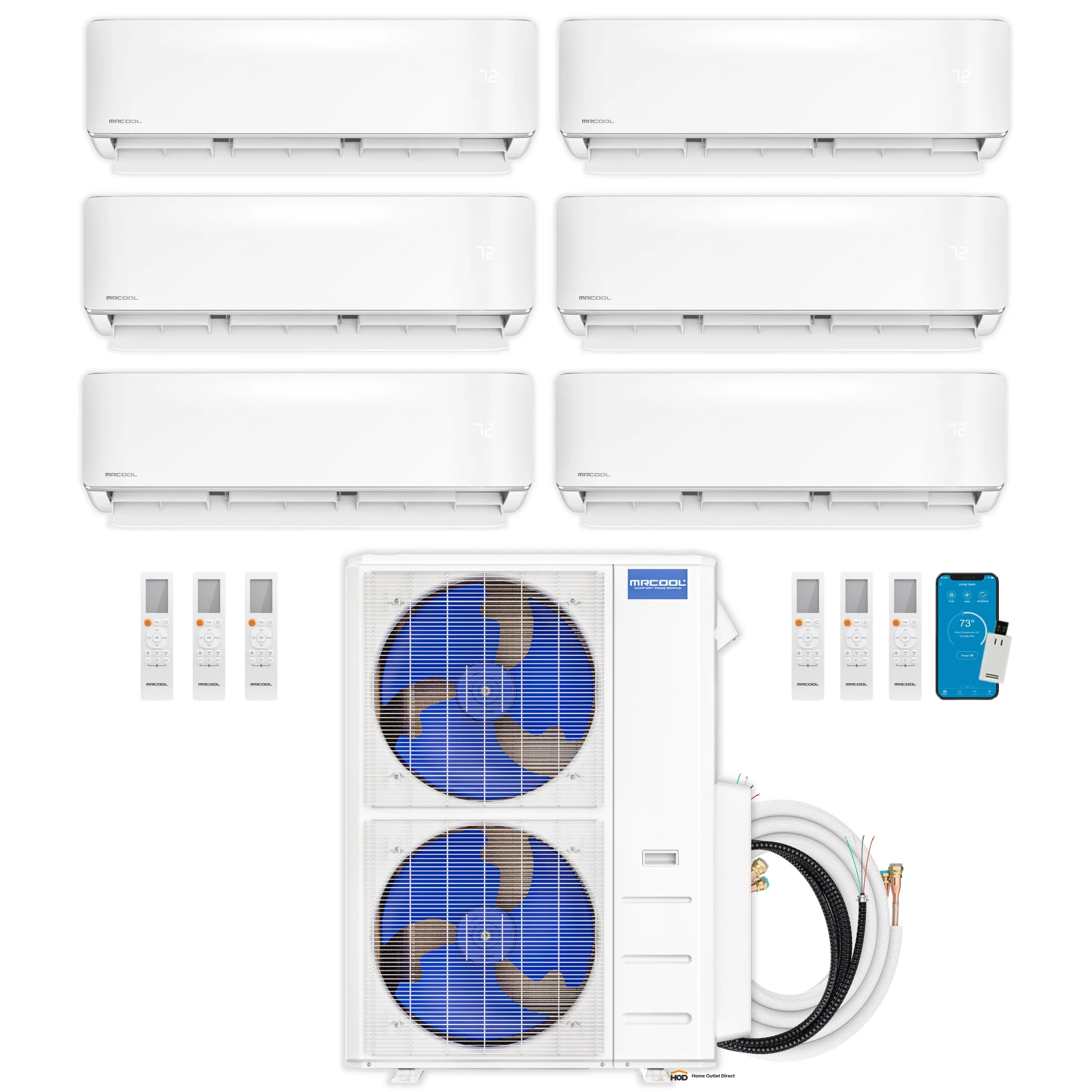

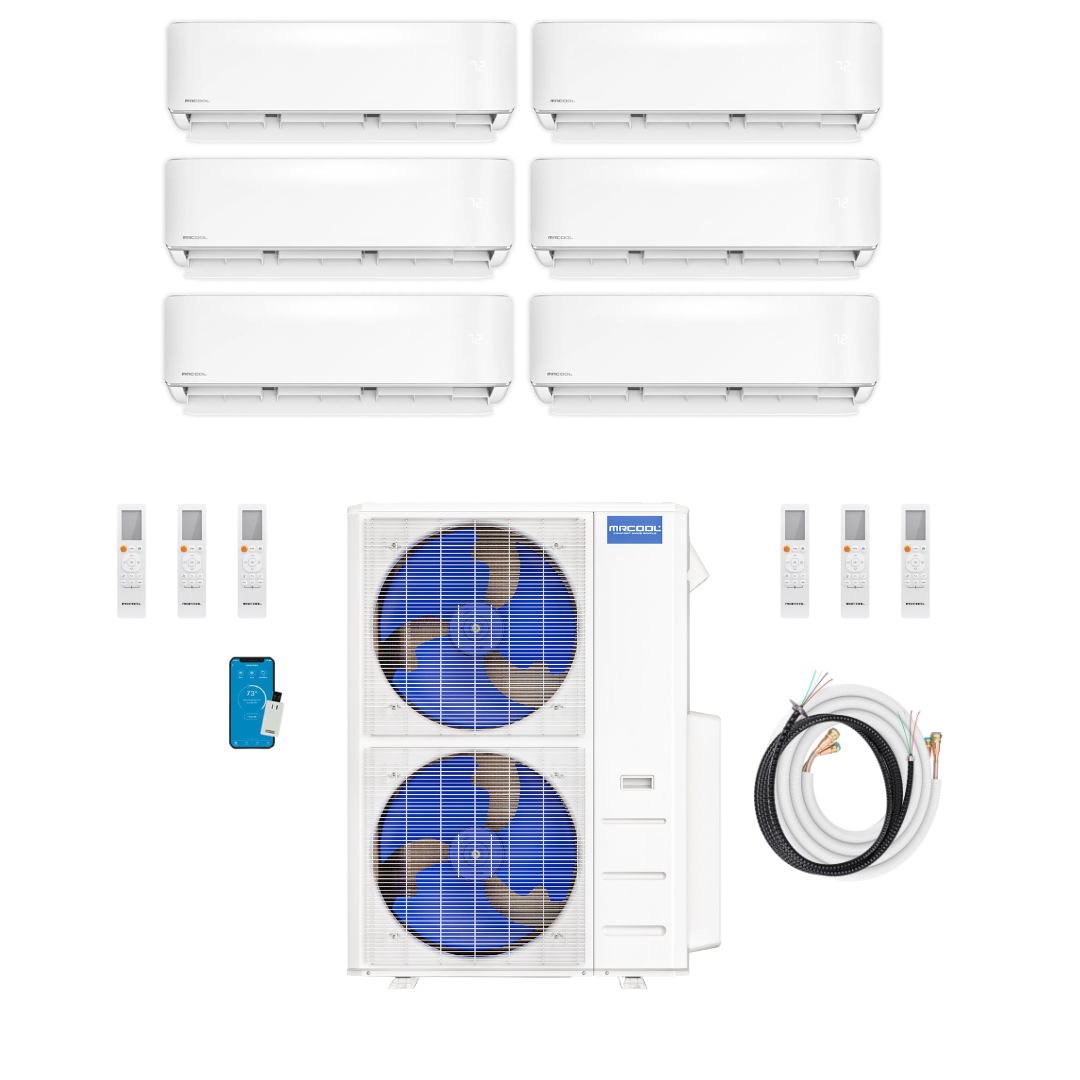

MRCOOL DIY® 5th Gen 6‑Zone 48,000 BTU Mini Split –Balanced Comfort for Every Room Size
(12K + 12K + 9K + 9K + 6K + 6K Wall Mount)
Some projects have it all — big living areas, medium‑sized offices, and smaller rooms. This configuration handles them all with a single outdoor unit, giving you flexibility without sacrificing efficiency or style.
Why This System Belongs in Your Hive
- Six Zones, One Outdoor Unit — Two 12K, two 9K, and two 6K wall‑mounted air handlers for tailored coverage.
- DIY‑Friendly Install — Pre‑charged R‑454B linesets mean no vacuum pump and no extra tools.
- Year‑Round Comfort — Heat pump technology delivers dependable heating and cooling.
- Energy Efficiency That Wins Clients — High SEER ratings help reduce utility costs.
- Quiet Performance — Low‑noise operation for maximum comfort.
- Fast Free Shipping — Quick delivery so you can get right to work.
From one worker bee to another: this system is perfect for mixed‑size spaces where comfort needs to be consistent across the board.
MRCOOL DIY® 5th Gen 48,000 BTU 6-Zone Mini Split Condenser 230v (DIY-MULTI6-48HP230D-O)
| Dimensions | 16.34" D x 52.48" H x 37.48" W |
|
SEER2 |
21.8 |
|
EER2 |
12 |
|
HSPF2-4 |
10 |
|
HSPF2-5 |
7.8 |
|
Tonnage |
4 |
|
Cooling Capacity (BTU) |
43000 |
|
Heating Capacity (BTU) |
48000 |
|
Voltage (V) |
208/230 |
|
Phase |
1 |
|
Cycle |
60 |
|
Max Fuse Breaker (A) |
45 |
|
Min Circuit Ampacity (A) |
40 |
|
Color |
White |
|
Zone Capacity |
6 |
|
Refrigerant Type |
R-454B |
|
Refrigerant Volume (OZ) |
148.15 |
|
Decibel Rating (DBA) |
64 |
|
Inverter |
DC |
|
Line Set Length |
25 |
|
Max Lineset Length (FT) |
221.4 |
|
Liquid LIne Size |
1/4 |
|
Suctio Line Size |
(3/8 X4) (1/2 X2) |
|
Compressor Motor Type |
Rotary |
|
Auxiliary Heater Included |
No |
|
Auxiliary Heater Available |
No |
|
Fan Only Option |
Yes |
|
Quiet Mode |
Yes |
|
Auto Cool |
Yes |
|
WIFI Compatibility |
Yes |
|
APP Compatibility |
Yes |
|
Works with IOS |
Yes |
|
Works with Android |
Yes |
|
UL Listed |
Yes |
|
ETL Listed |
Yes |
|
Energy Star Certified |
Yes |
|
AHRI Certified |
Yes |
|
Registered Warranty |
Extended Limited Lifetime* |
|
Base Parts Warranty |
5 |
|
Base Compressor Warranty |
7 |
|
Has Batteries |
Yes |
|
Contains Electronics |
Yes |
|
Contans Chemicals |
Yes |
|
Contains Aerosol |
Yes |
|
Contains Compressed Gas |
Yes |
|
Proposition 65 Warning |
Yes |
Manuals & Guides
| Brochure |
| Install Manual |
| Remote Manual |
| Accessory Manual |
| Warranty Doc |
| AHRI Cert |
| Energy Guide |

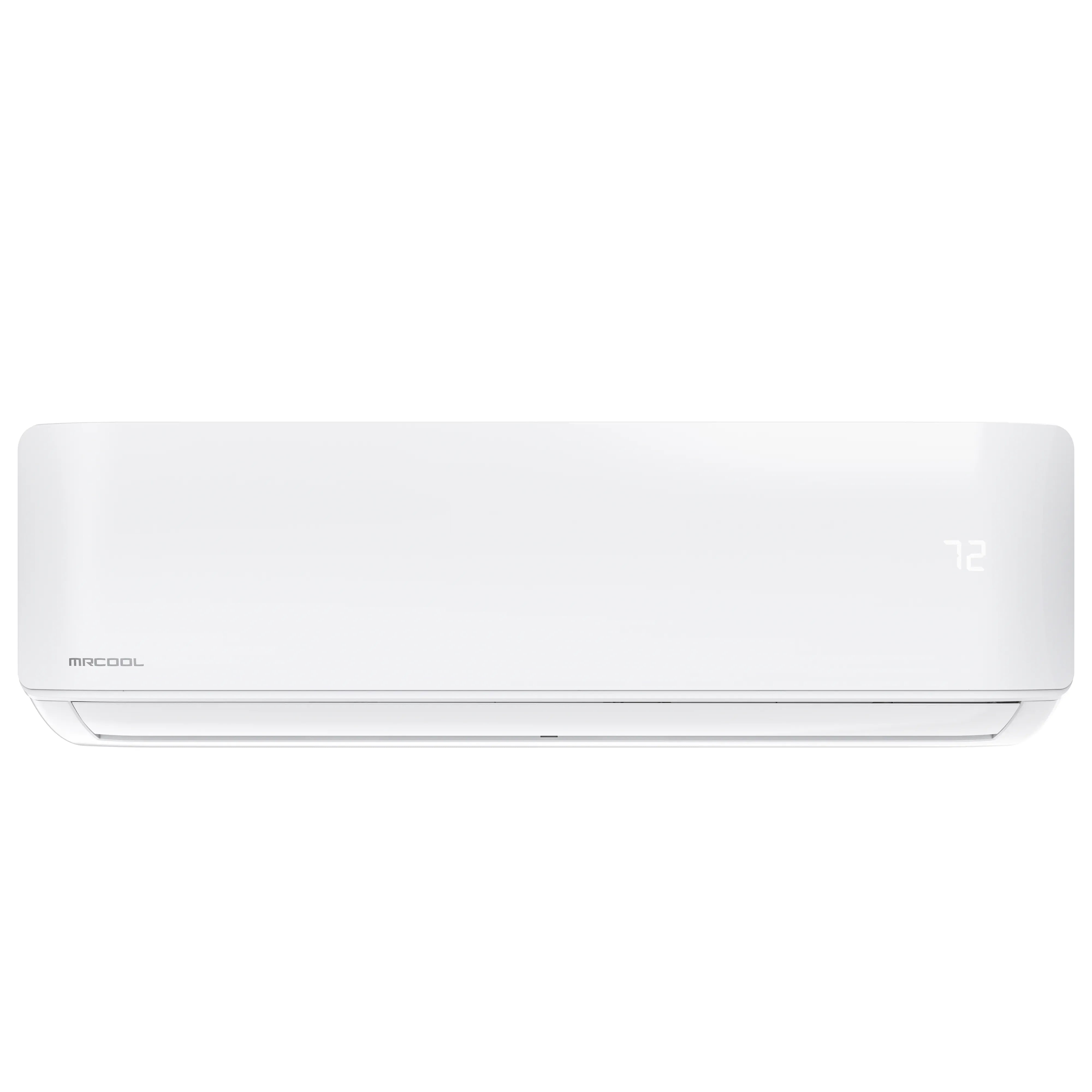

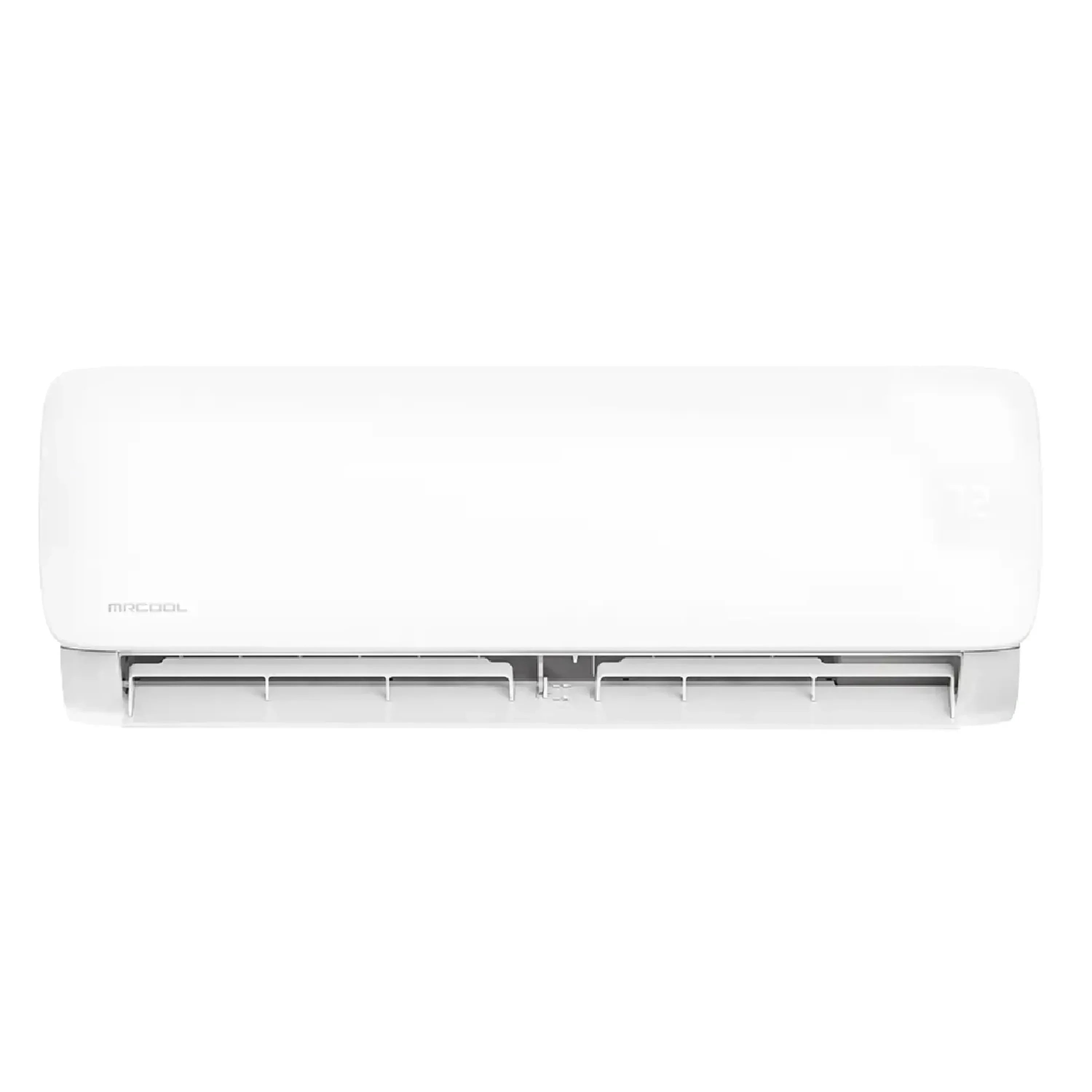

MRCOOL DIY® 5th Gen 12,000 BTU Multi-Zone Mini Split Air Handler 230V (DIY-12-HP-WMAH-230D25-O) X2
| Dimensions | 7.44" D x 11.63" H x 31.57" W |
|
Voltage (V) |
208/230 |
|
Phase |
1 |
|
Cycle |
60 |
|
Mount Type |
Wall |
|
Color |
White |
|
Max Coverage Area |
550 sqft |
|
Oscillation |
Yes |
|
Filter Type |
Reusable |
|
Auxiliary Heater Included |
No |
|
Auxiliary Heater Available |
No |
|
Fan Only Option |
Yes |
|
Quiet Mode |
Yes |
|
Auto Cool |
Yes |
|
WIFI Compatibility |
Yes |
|
APP Compatibility |
Yes |
|
Works with IOS |
Yes |
|
Works with Android |
Yes |
|
Remote Control Included |
Yes |
|
UL Listed |
Yes |
|
ETL Listed |
Yes |
|
AHRI Certified |
Yes |
|
Registered Warranty |
Extended Limited Lifetime* |
|
Base Parts Warranty |
5 |
|
Base Compressor Warranty |
7 |
|
Has Batteries |
Yes |
|
Contains Electronics |
Yes |
|
Contains Chemicals |
Yes |
|
Contains Aerosol |
Yes |
|
Contains Compressed Gas |
Yes |
|
Proposition 65 Warning |
Yes |
Manuals & Guides
| Brochure |
| Install Manual |
| Remote Manual |
| Accessory Manual |
| Warranty Doc |
MRCOOL DIY® 5th Gen 9,000 BTU Multi-Zone Mini Split Air Handler 230V (DIY-09-HP-WMAH-230D25-O) X2
| Dimensions | 7.44" D x 11.69" H x 31.57" W |
|
Voltage (V) |
208/230 |
|
Phase |
1 |
|
Cycle |
60 |
|
Mount Type |
Wall |
|
Color |
White |
|
Max Coverage Area |
400 sqft |
|
Oscillation |
Yes |
|
Filter Type |
Reusable |
|
Auxiliary Heater Included |
No |
|
Auxiliary Heater Available |
No |
|
Fan Only Option |
Yes |
|
Quiet Mode |
Yes |
|
Auto Cool |
Yes |
|
WIFI Compatibility |
Yes |
|
APP Compatibility |
Yes |
|
Works with IOS |
Yes |
|
Works with Android |
Yes |
|
Remote Control Included |
Yes |
|
UL Listed |
Yes |
|
ETL Listed |
Yes |
|
AHRI Certified |
Yes |
|
Registered Warranty |
Extended Limited Lifetime* |
|
Base Parts Warranty |
5 |
|
Base Compressor Warranty |
7 |
|
Has Batteries |
Yes |
|
Contains Electronics |
Yes |
|
Contains Chemicals |
Yes |
|
Contains Aerosol |
Yes |
|
Contains Compressed Gas |
Yes |
|
Proposition 65 Warning |
Yes |
Manuals & Guides
| Brochure |
| Install Manual |
| Remote Manual |
| Accessory Manual |
| Warranty Doc |
MRCOOL DIY® 5th Gen 6,000 BTU Multi-Zone Mini Split Air Handler 230V (DIY-06-HP-WMAH-230D25-O) X2
| Dimensions | 7.44" D x 11.69" H x 31.57" W |
|
Voltage (V) |
208/230 |
|
Phase |
1 |
|
Cycle |
60 |
|
Mount Type |
Wall |
|
Color |
White |
|
Max Coverage Area |
200 sqft |
|
Oscillation |
Yes |
|
Filter Type |
Reusable |
|
Auxiliary Heater Included |
No |
|
Auxiliary Heater Available |
No |
|
Fan Only Option |
Yes |
|
Quiet Mode |
Yes |
|
Auto Cool |
Yes |
|
WIFI Compatibility |
Yes |
|
APP Compatibility |
Yes |
|
Works with IOS |
Yes |
|
Works with Android |
Yes |
|
Remote Control Included |
Yes |
|
UL Listed |
Yes |
|
ETL Listed |
Yes |
|
AHRI Certified |
Yes |
|
Registered Warranty |
Extended Limited Lifetime* |
|
Base Parts Warranty |
5 |
|
Base Compressor Warranty |
7 |
|
Has Batteries |
Yes |
|
Contains Electronics |
Yes |
|
Contains Chemicals |
Yes |
|
Contains Aerosol |
Yes |
|
Contains Compressed Gas |
Yes |
|
Proposition 65 Warning |
Yes |
Manuals & Guides
| Brochure |
| Install Manual |
| Remote Manual |
| Accessory Manual |
| Warranty Doc |
MRCOOL® Remote Control for 5th Gen DIY and Advantage Series Mini Split Systems X6
| Dimensions | 2" W x 6" L x 1" H |
| Works with | MRCOOL DIY 5th Generation Mini Splits |
| Restricted States | GU;PR;VI |
| Color | White |
Shipping and Return
For Shipping & return information visit here
COVERAGE AREA
