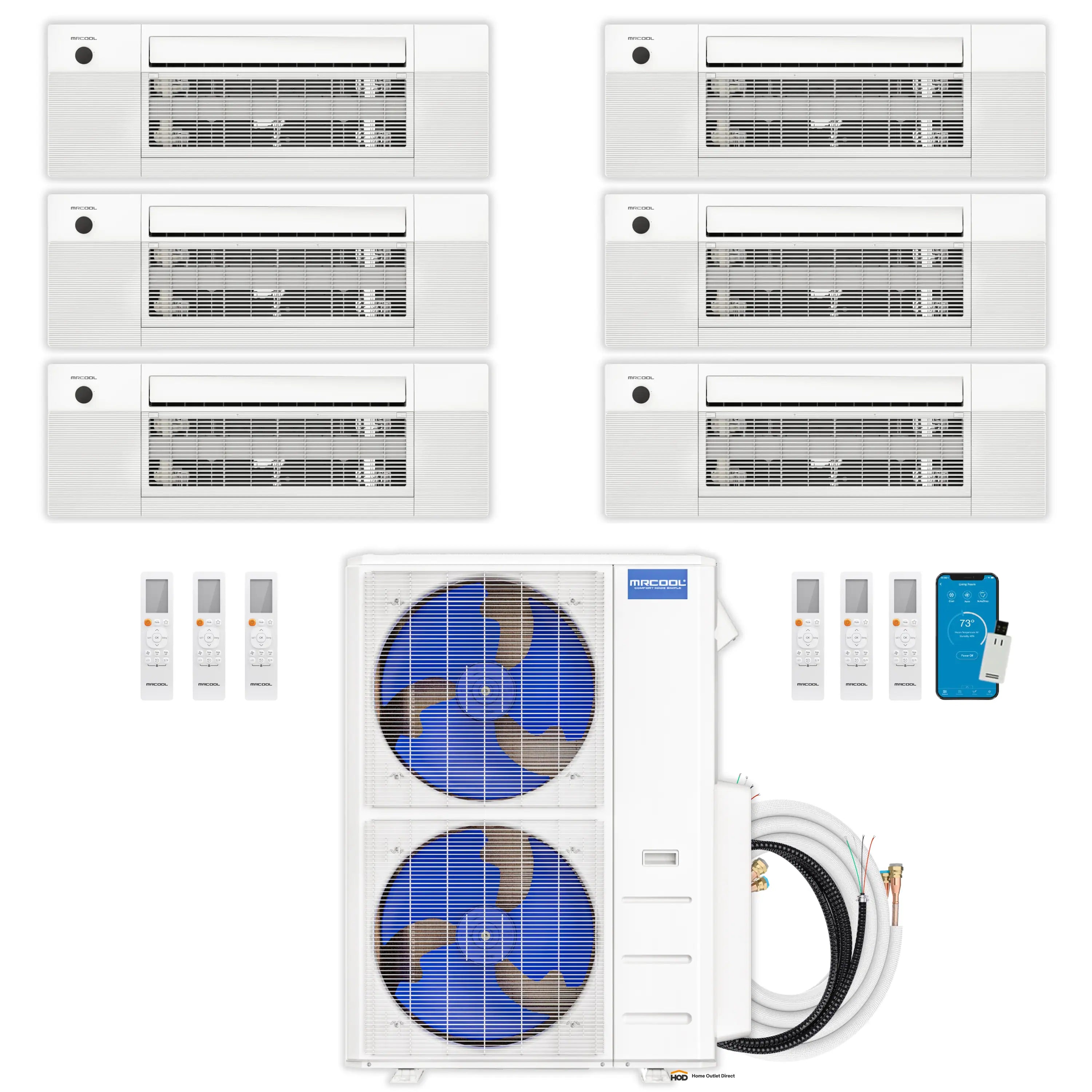

MRCOOL DIY® 5th Gen 6‑Zone 55,000 BTU Mini Split – Ceiling Cassette Medium Zone Focus
(18K + 9K + 9K + 9K + 6K + 6K Ceiling Cassette)
With one extra‑large space, three medium, and two smaller zones, this ceiling cassette system delivers balanced, discreet comfort for homes or offices.
Why This System Belongs in Your Hive
-
Six Zones, One Outdoor Unit — One 18K, three 9K, and two 6K ceiling cassette air handlers.
-
Space‑Saving Design — Flush‑mount cassettes integrate seamlessly into ceilings.
-
DIY‑Friendly Install — Pre‑charged R‑454B linesets mean no vacuum pump required.
-
Year‑Round Comfort — Heat pump technology provides both heating and cooling.
-
Energy Efficiency That Wins Clients — High SEER ratings help reduce operating costs.
-
Fast Free Shipping — Delivered quickly to keep your project on schedule.
Hive‑tested, installer‑approved: ceiling cassette medium‑zone layout.
MRCOOL DIY® 5th Gen 55,000 BTU 6-Zone Mini Split Condenser 230v (DIY-MULTI6-55HP230D-O)
| Dimensions |
16.34" D x 52.48" H x 37.48" W |
|
SEER2
|
22
|
|
EER2
|
12
|
|
HSPF2-4
|
10.6
|
|
HSPF2-5
|
8.5
|
|
Tonnage
|
4.6
|
|
Cooling Capacity (BTU)
|
47000
|
|
Heating Capacity (BTU)
|
55000
|
|
Voltage (V)
|
208/230
|
|
Phase
|
1
|
|
Cycle
|
60
|
|
Max Fuse Breaker (A)
|
45
|
|
Min Circuit Ampacity (A)
|
43
|
|
Color
|
White
|
|
Zone Capacity
|
6
|
|
Refrigerant Type
|
R-454B
|
|
Refrigerant Volume (OZ)
|
151.68
|
|
Decibel Rating (DBA)
|
64
|
|
Inverter
|
DC
|
|
Line Set Length
|
25
|
|
Max Lineset Length (FT)
|
221.4
|
|
Liquid LIne Size
|
1/4
|
|
Suctio Line Size
|
(3/8 X4) (1/2 X2) |
|
Compressor Motor Type
|
Rotary
|
|
Auxiliary Heater Included
|
No
|
|
Auxiliary Heater Available
|
No
|
|
Fan Only Option
|
Yes
|
|
Quiet Mode
|
Yes
|
|
Auto Cool
|
Yes
|
|
WIFI Compatibility
|
Yes
|
|
APP Compatibility
|
Yes
|
|
Works with IOS
|
Yes
|
|
Works with Android
|
Yes
|
|
UL Listed
|
Yes
|
|
ETL Listed
|
Yes
|
|
Energy Star Certified
|
Yes
|
|
AHRI Certified
|
Yes
|
|
Registered Warranty
|
Extended Limited Lifetime*
|
|
Base Parts Warranty
|
5
|
|
Base Compressor Warranty
|
7
|
|
Has Batteries
|
Yes
|
|
Contains Electronics
|
Yes
|
|
Contans Chemicals
|
Yes
|
|
Contains Aerosol
|
Yes
|
|
Contains Compressed Gas
|
Yes
|
|
Proposition 65 Warning
|
Yes
|
Manuals & Guides

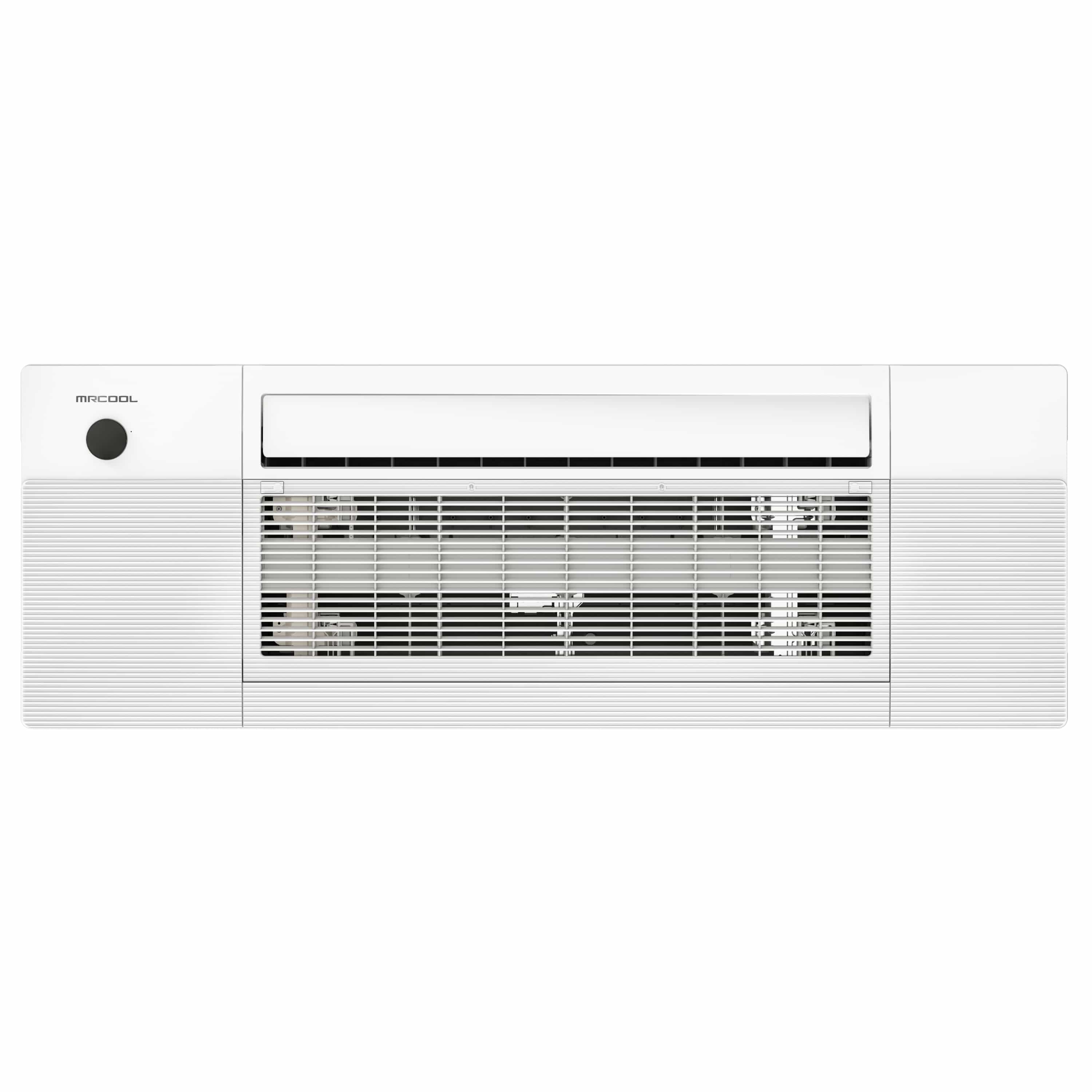

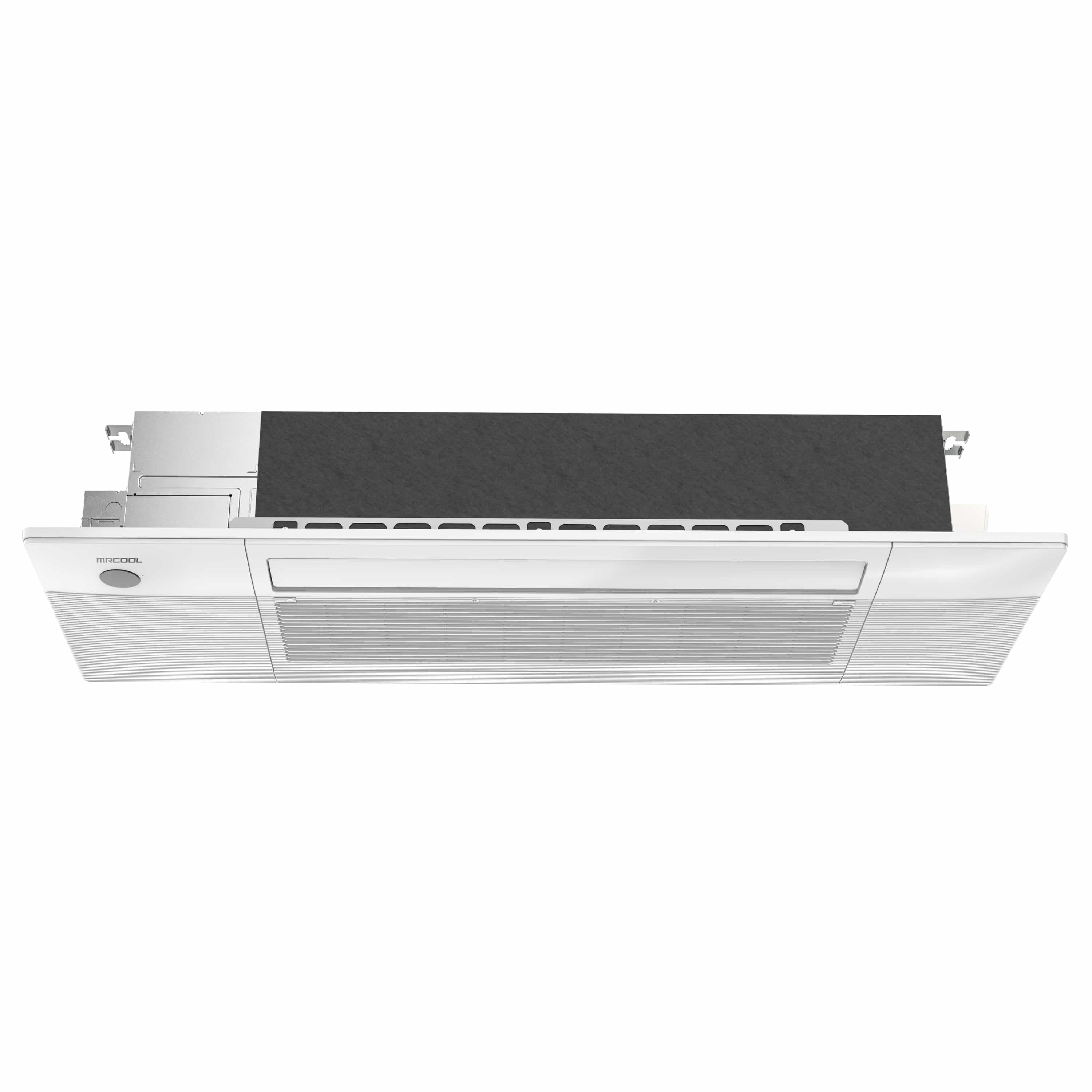

MRCOOL DIY® Series 5th Gen OuttaSight® 18K BTU 230V One-Way Ceiling Cassette Air Handler (DIYCASSETTE18HP-230D25-O)
|
Dimensions
|
13.19" D x 8.98" H x 50.31" W
|
|
CFM
|
400 / 352 / 300 / 207 / 207
|
|
Cooling Capacity (BTU)
|
18800
|
|
Heating Capacity (BTU)
|
22700
|
|
Voltage (V)
|
208-230
|
|
Phase
|
1
|
|
Cycle
|
60
|
|
Max Fuse Breaker (A)
|
15
|
|
Min Circuit Ampacity (A)
|
3
|
|
Mount Type
|
Ceiling
|
|
Color
|
White
|
|
Rated Load
|
1.2
|
|
Max Coverage Area
|
800
|
|
Refrigerant Type
|
R-454B
|
|
Decibel Rating (DBA)
|
41.5
|
|
Decibel Rating Low (DBA)
|
26
|
|
Decibel Rating High (DBA)
|
44
|
|
Air Flow Direction
|
1-Way
|
|
Liquid Line Size
|
1/4
|
|
Suction Line Size
|
1/2
|
|
Blower Motor RPM
|
1344/1184/1024
|
|
Filter Type
|
Reusable
|
|
Fan Only Option
|
Yes
|
|
Quiet Mode
|
Yes
|
|
Sleep Mode
|
Yes
|
|
Auto Cool
|
Yes
|
|
WIFI Compatibility
|
Yes
|
|
APP Compatibility
|
Yes
|
|
Works with IOS
|
Yes
|
|
Works with Android
|
Yes
|
|
Remote Control Included
|
Yes
|
|
Registered Warranty
|
Limited Lifetime Compressor
|
|
Base Warranty
|
5-Year Part/7-Year Compressor
|
|
Bas Parts Warranty
|
5 Years
|
|
Registered Compressor Warranty
|
Limited Lifetime Compressor
|
|
Base Compressor Warranty
|
7 Years
|
|
Has Batteries
|
Yes
|
|
Contains Electronics
|
Yes
|
|
Contains Chemicals
|
Yes
|
|
Contains Aerosol
|
Yes
|
|
Contains Compressed Gas
|
Yes
|
|
Proposition 65 Warning
|
Yes
|
|
Restricted States
|
GU;PR;VI
|
|
Net Weight (Lbs)
|
45
|
|
Gross Weight (Lbs)
|
88
|
Manuals & Guides
MRCOOL DIY® Series 5th Gen OuttaSight® 9K BTU 230V One-Way Ceiling Cassette Air Handler (DIYCASSETTE09HP-230D25-O) X3
|
Dimensions
|
13.19" D x 8.98" H x 50.31" W
|
|
CFM
|
341 / 294 / 259 / 235 / 235
|
|
Voltage (V)
|
208-230
|
|
Phase
|
1
|
|
Cycle
|
60
|
|
Max Fuse Breaker (A)
|
15
|
|
Min Circuit Ampacity (A)
|
3
|
|
Mount Type
|
Ceiling
|
|
Color
|
White
|
|
Rated Load
|
0.8
|
|
Max Coverage Area
|
400
|
|
Refrigerant Type
|
R-454B
|
|
Decibel Rating (DBA)
|
36
|
|
Decibel Rating Low (DBA)
|
24
|
|
Decibel Rating High (DBA)
|
38
|
|
Air Flow Direction
|
1-Way
|
|
Liquid Line Size
|
1/4
|
|
Suction Line Size
|
3/8
|
|
Blower Motor RPM
|
1104/994/784
|
|
Filter Type
|
Reusable
|
|
Fan Only Option
|
Yes
|
|
Quiet Mode
|
Yes
|
|
Sleep Mode
|
Yes
|
|
Auto Cool
|
Yes
|
|
WIFI Compatibility
|
Yes
|
|
APP Compatibility
|
Yes
|
|
Works with IOS
|
Yes
|
|
Works with Android
|
Yes
|
|
Remote Control Included
|
Yes
|
|
Registered Warranty
|
Limited Lifetime Compressor
|
|
Base Warranty
|
5-Year Part/7-Year Compressor
|
|
Bas Parts Warranty
|
5 Years
|
|
Registered Compressor Warranty
|
Limited Lifetime Compressor
|
|
Base Compressor Warranty
|
7 Years
|
|
Has Batteries
|
Yes
|
|
Contains Electronics
|
Yes
|
|
Contains Chemicals
|
Yes
|
|
Contains Aerosol
|
Yes
|
|
Contains Compressed Gas
|
Yes
|
|
Proposition 65 Warning
|
Yes
|
|
Restricted States
|
GU;PR;VI
|
|
Net Weight (Lbs)
|
45
|
|
Gross Weight (Lbs)
|
88
|
Manuals & Guides
MRCOOL DIY® Series 5th Gen OuttaSight® 6K BTU 230V One-Way Ceiling Cassette Air Handler (DIYCASSETTE06HP-230D25-O) X2
|
Dimensions
|
13.19" D x 8.98" H x 50.31" W
|
|
CFM
|
341 / 294 / 259 / 235 / 235
|
|
Voltage (V)
|
208-230
|
|
Phase
|
1
|
|
Cycle
|
60
|
|
Max Fuse Breaker (A)
|
15
|
|
Min Circuit Ampacity (A)
|
3
|
|
Mount Type
|
Ceiling
|
|
Color
|
White
|
|
Rated Load
|
0.8
|
|
Max Coverage Area
|
200 |
|
Refrigerant Type
|
R-454B
|
|
Decibel Rating (DBA)
|
35.5
|
|
Decibel Rating Low (DBA)
|
23.5
|
|
Decibel Rating High (DBA)
|
46.5
|
|
Air Flow Direction
|
1-Way
|
|
Liquid Line Size
|
1/4
|
|
Suction Line Size
|
3/8
|
|
Blower Motor RPM
|
1024/944/784
|
|
Filter Type
|
Reusable
|
|
Fan Only Option
|
Yes
|
|
Quiet Mode
|
Yes
|
|
Sleep Mode
|
Yes
|
|
Auto Cool
|
Yes
|
|
WIFI Compatibility
|
Yes
|
|
APP Compatibility
|
Yes
|
|
Works with IOS
|
Yes
|
|
Works with Android
|
Yes
|
|
Remote Control Included
|
Yes
|
|
Registered Warranty
|
Limited Lifetime Compressor
|
|
Base Warranty
|
5-Year Part/7-Year Compressor
|
|
Bas Parts Warranty
|
5 Years
|
|
Registered Compressor Warranty
|
Limited Lifetime Compressor
|
|
Base Compressor Warranty
|
7 Years
|
|
Has Batteries
|
Yes
|
|
Contains Electronics
|
Yes
|
|
Contains Chemicals
|
Yes
|
|
Contains Aerosol
|
Yes
|
|
Contains Compressed Gas
|
Yes
|
|
Proposition 65 Warning
|
Yes
|
|
Restricted States
|
GU;PR;VI
|
|
Net Weight (Lbs)
|
45
|
|
Gross Weight (Lbs)
|
88
|
Manuals & Guides
MRCOOL® Remote Control for 5th Gen DIY and Advantage Series Mini Split Systems X6
| Dimensions |
2" W x 6" L x 1" H |
| Works with |
MRCOOL DIY 5th Generation Mini Splits |
| Restricted States |
GU;PR;VI |
| Color |
White |
