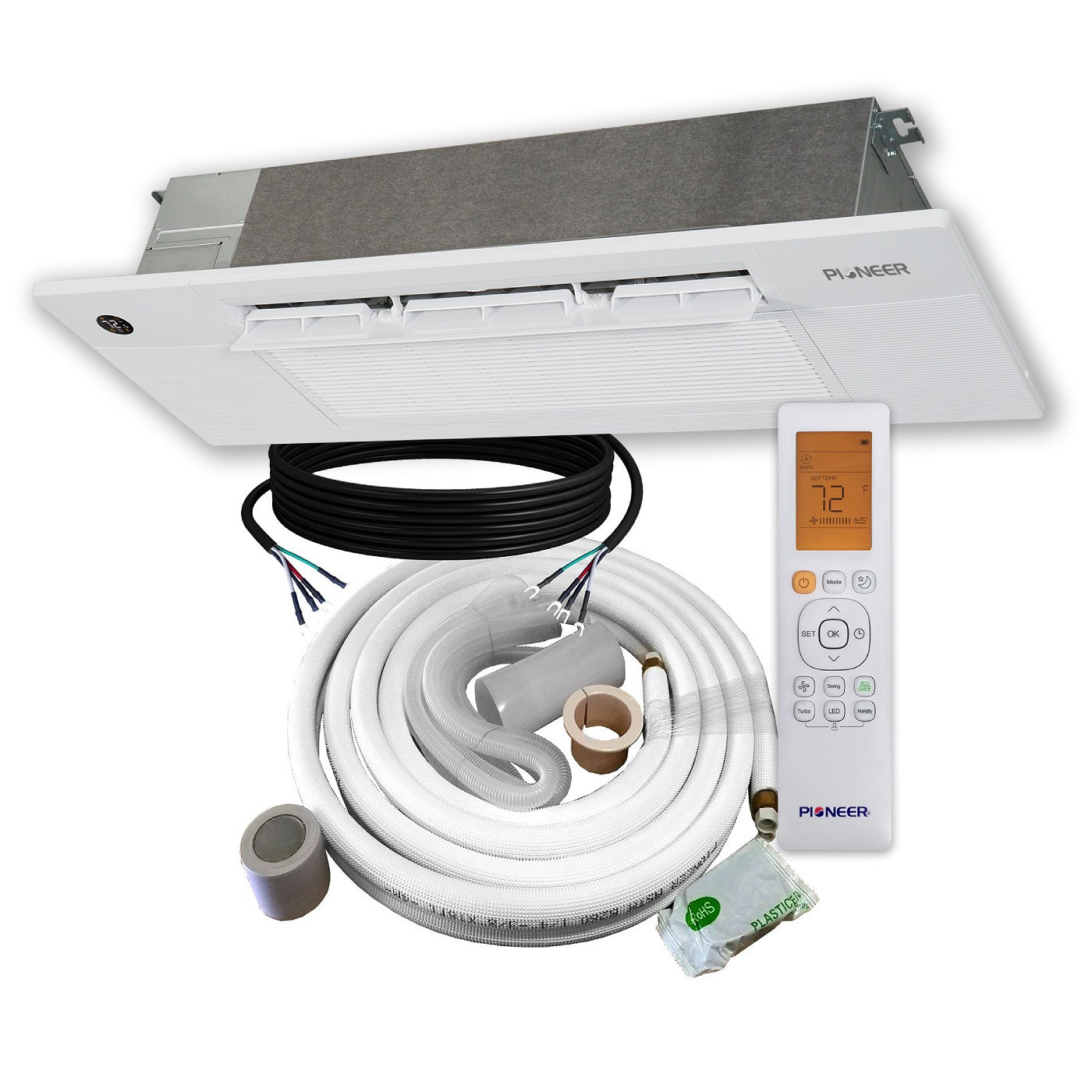

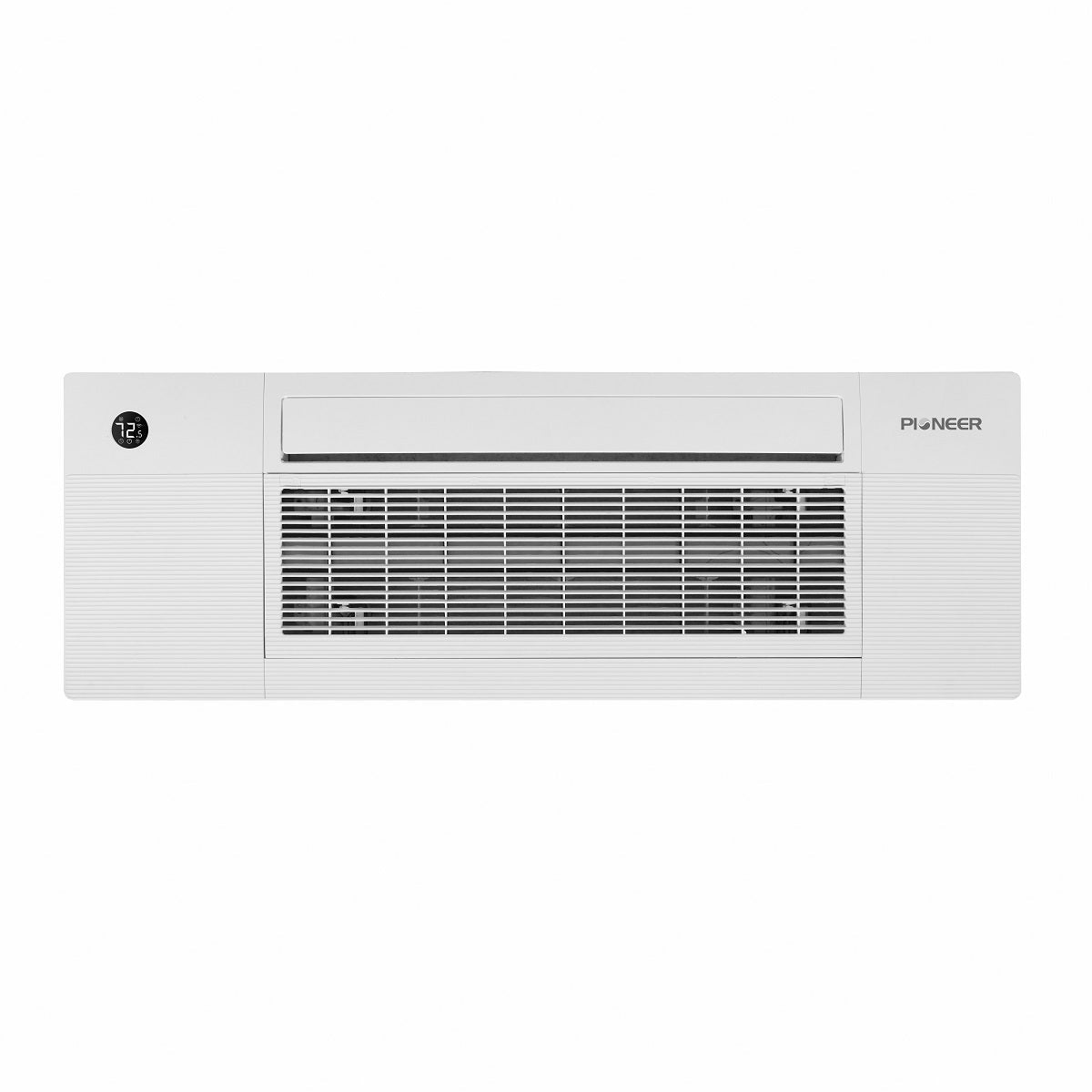

This Pioneer Quantum Series One-Way Recessed Ceiling Cassette is a high-efficiency indoor unit designed for multi-zone mini-split HVAC systems. It provides both cooling and heating via advanced variable speed DC inverter technology, ensuring precise climate control and energy savings.
Note: This listing is for the indoor unit only. A compatible multi-zone outdoor condenser must be selected and purchased separately.
To build a multi-zone system, select an outdoor unit matching the number of indoor zones:
| Zones | Model Number | Zones Supported |
|---|---|---|
| Dual | YN020GMFI22M2E | 2 zones |
| Triple | YN030GMFI22M3E | 3 zones |
| Quad | YN040GMFI22M4E | 4 zones |
| Quint | YN050GMFI22M5E | 5 zones |
Important Notes:
| Specification | Details |
|---|---|
| Power Supply | 208-230V, 1 Phase, 60Hz |
| Cooling Capacity | 18,000 BTU/h |
| Heating Capacity | 19,000 BTU/h |
| Cooling SEER | 21.8 |
| Heating HSPF | 10.7 |
| Airflow (Turbo/Hi/Med/Lo) | 680 / 598 / 510 / 352 CFM |
| Sound Level (Hi/Med/Lo) | 44 / 41 / 34 dB(A) |
| Indoor Unit Dimensions (W x D x H) | 13-1/4" x 50-1/4" x 9" |
| Panel Dimensions (W x D x H) | 18-3/4" x 53-1/2" x 1" |
| Indoor Unit Weight (Net/Carton) | 45 / 83 lbs |
| Panel Weight (Net/Gross) | 24 / 29 lbs |
If you need help selecting the right outdoor unit or matching multiple indoor units, please consult the Matching Chart or contact Pioneer technical support for expert guidance.
The indoor unit requires a multi-zone outdoor condenser, sold separately. Choose based on the number of zones needed:
| Zones | Model Number | Number of Zones Supported |
|---|---|---|
| Dual | YN020GMFI22M2E | 2 zones |
| Triple | YN030GMFI22M3E | 3 zones |
| Quad | YN040GMFI22M4E | 4 zones |
| Quint | YN050GMFI22M5E | 5 zones |
Note:
| Specification | Details |
|---|---|
| Power Supply | 208-230V, 1 Phase, 60Hz |
| Cooling Capacity | 18,000 BTU/h |
| Heating Capacity | 19,000 BTU/h |
| Cooling SEER | 21.8 |
| Heating HSPF | 10.7 |
| Airflow (Turbo/Hi/Med/Lo) | 680 / 598 / 510 / 352 CFM |
| Sound Level (Hi/Med/Lo) | 44 / 41 / 34 dB(A) |
| Net Dimensions (W x D x H) | 13-1/4" x 50-1/4" x 9" |
| Panel Dimensions (W x D x H) | 18-3/4" x 53-1/2" x 1" |
| Weight (Net/Carton) | 45 / 83 lbs (Indoor Unit) |
| Panel Weight (Net/Gross) | 24 / 29 lbs |
If you need assistance in selecting the right outdoor unit or matching multiple indoor units, please consult the Matching Chart or contact Pioneer technical support for expert guidance.
Matching outdoor units need to be selected and purchased separately. To purchase a multi split system, first determine the outdoor unit required among the outdoor units we offer as follows:
Notes
We offer Free Express Shipping on all of our products. Handling times are 1-2 business days and Delivery takes roughly 3-14 Business days
For more Shipping information visit here
We offer a 2 Year (730 Day) return for our products.
For more Return information visit here
HVAC Hive Warranty Information:
HVAC Hive is an authorized dealer for every product on our website. Every HVAC system and component comes with its original manufacturer's warranty, guaranteeing you receive a functional, quality product.
Our 5-Year Parts & Labor Warranty Promise: We go beyond the standard coverage. If a manufacturer's warranty doesn't cover your product for a full 5 years, HVAC Hive will extend both parts and labor warranty to complete the 5-year coverage period.
Example: If your manufacturer covers 2 years parts & labor, we'll cover an additional 3 years — giving you a full 5 years of parts and labor protection.
Warranty Coverage Includes:
Warranty Details:
Making a Warranty Claim: Contact our Worker Bee Support team at 1-888-712-2465 or karim@hvachive.com . We'll handle your claim quickly and professionally, covering both parts and labor costs. You can also contact the manufacturer directly if preferred.
Questions? Need help understanding your parts & labor warranty coverage? Our team is here to explain the details and ensure you're fully protected.
This Pioneer Quantum Series One-Way Recessed Ceiling Cassette is a high-efficiency indoor unit designed for multi-zone mini-split HVAC systems. It provides both cooling and heating via advanced variable speed DC inverter technology, ensuring precise climate control and energy savings.
Note: This listing is for the indoor unit only. A compatible multi-zone outdoor condenser must be selected and purchased separately.
To build a multi-zone system, select an outdoor unit matching the number of indoor zones:
| Zones | Model Number | Zones Supported |
|---|---|---|
| Dual | YN020GMFI22M2E | 2 zones |
| Triple | YN030GMFI22M3E | 3 zones |
| Quad | YN040GMFI22M4E | 4 zones |
| Quint | YN050GMFI22M5E | 5 zones |
Important Notes:
| Specification | Details |
|---|---|
| Power Supply | 208-230V, 1 Phase, 60Hz |
| Cooling Capacity | 18,000 BTU/h |
| Heating Capacity | 19,000 BTU/h |
| Cooling SEER | 21.8 |
| Heating HSPF | 10.7 |
| Airflow (Turbo/Hi/Med/Lo) | 680 / 598 / 510 / 352 CFM |
| Sound Level (Hi/Med/Lo) | 44 / 41 / 34 dB(A) |
| Indoor Unit Dimensions (W x D x H) | 13-1/4" x 50-1/4" x 9" |
| Panel Dimensions (W x D x H) | 18-3/4" x 53-1/2" x 1" |
| Indoor Unit Weight (Net/Carton) | 45 / 83 lbs |
| Panel Weight (Net/Gross) | 24 / 29 lbs |
If you need help selecting the right outdoor unit or matching multiple indoor units, please consult the Matching Chart or contact Pioneer technical support for expert guidance.
The indoor unit requires a multi-zone outdoor condenser, sold separately. Choose based on the number of zones needed:
| Zones | Model Number | Number of Zones Supported |
|---|---|---|
| Dual | YN020GMFI22M2E | 2 zones |
| Triple | YN030GMFI22M3E | 3 zones |
| Quad | YN040GMFI22M4E | 4 zones |
| Quint | YN050GMFI22M5E | 5 zones |
Note:
| Specification | Details |
|---|---|
| Power Supply | 208-230V, 1 Phase, 60Hz |
| Cooling Capacity | 18,000 BTU/h |
| Heating Capacity | 19,000 BTU/h |
| Cooling SEER | 21.8 |
| Heating HSPF | 10.7 |
| Airflow (Turbo/Hi/Med/Lo) | 680 / 598 / 510 / 352 CFM |
| Sound Level (Hi/Med/Lo) | 44 / 41 / 34 dB(A) |
| Net Dimensions (W x D x H) | 13-1/4" x 50-1/4" x 9" |
| Panel Dimensions (W x D x H) | 18-3/4" x 53-1/2" x 1" |
| Weight (Net/Carton) | 45 / 83 lbs (Indoor Unit) |
| Panel Weight (Net/Gross) | 24 / 29 lbs |
If you need assistance in selecting the right outdoor unit or matching multiple indoor units, please consult the Matching Chart or contact Pioneer technical support for expert guidance.
Matching outdoor units need to be selected and purchased separately. To purchase a multi split system, first determine the outdoor unit required among the outdoor units we offer as follows:
Notes
We offer Free Express Shipping on all of our products. Handling times are 1-2 business days and Delivery takes roughly 3-14 Business days
For more Shipping information visit here
We offer a 2 Year (730 Day) return for our products.
For more Return information visit here
HVAC Hive Warranty Information:
HVAC Hive is an authorized dealer for every product on our website. Every HVAC system and component comes with its original manufacturer's warranty, guaranteeing you receive a functional, quality product.
Our 5-Year Parts & Labor Warranty Promise: We go beyond the standard coverage. If a manufacturer's warranty doesn't cover your product for a full 5 years, HVAC Hive will extend both parts and labor warranty to complete the 5-year coverage period.
Example: If your manufacturer covers 2 years parts & labor, we'll cover an additional 3 years — giving you a full 5 years of parts and labor protection.
Warranty Coverage Includes:
Warranty Details:
Making a Warranty Claim: Contact our Worker Bee Support team at 1-888-712-2465 or karim@hvachive.com . We'll handle your claim quickly and professionally, covering both parts and labor costs. You can also contact the manufacturer directly if preferred.
Questions? Need help understanding your parts & labor warranty coverage? Our team is here to explain the details and ensure you're fully protected.
"Their technical expertise in commercial HVAC systems is outstanding. From equipment selection to installation support, they provided everything we needed. The bulk pricing saved us thousands on our multi-building project, and their 24/7 technical support kept us running smoothly."- Marcus R., HVAC Project Manager, 06/24
You'll hear from us during business hours
How it works:
1. Fill out the form below with your project details
2. We'll match you with 2-3 qualified installers in your area
3. Installers contact you directly with quotes and availability
4. You choose the best fit for your project
"I bought a heat pump online but wasn't sure about installation. HVAC Hive connected me with three local contractors within hours. I chose one based on reviews and pricing - he installed it perfectly the next week. Made the whole process so much easier!"- Jennifer M., Homeowner, Phoenix AZ
✓ No obligation quotes | ✓ All installers background checked | ✓ Free service - you only pay the installer
We'll connect you with installers within 48 hours during business days
Frequently Asked Questions about Pioneer® Multi Zone 18,000 BTU Quantum Series One-Way Ceiling Cassette Indoor Section Split Inverter++ Air Conditioner Heat Pump 230V
The Pioneer Quantum Series 18,000 BTU One-Way Ceiling Cassette Indoor Unit offers high energy efficiency, quiet operation, a slim recessed design for discreet installation, and precise temperature control for enhanced comfort.
A one-way airflow design directs air in a single direction, which can lead to uneven air distribution and potential hot or cold spots in the room, potentially reducing overall comfort compared to multi-directional airflow systems.
Yes, many indoor units are compatible with multi-zone outdoor inverter systems, but compatibility depends on matching the model and capacity, and installation requires proper refrigerant line connections, electrical wiring, and adherence to manufacturer specifications for both units.
The energy efficiency rating, such as SEER or HSPF, measures how efficiently the unit uses electricity, with higher ratings leading to lower operating costs.
To ensure optimal performance and longevity of a ceiling cassette unit, regular maintenance should include cleaning or replacing air filters monthly, checking and cleaning the condensate drain and drip pan, inspecting and cleaning the coils, ensuring the fan and blower are free of dust and debris, checking refrigerant levels, and scheduling professional servicing at least once a year to address any potential issues and perform a thorough inspection
