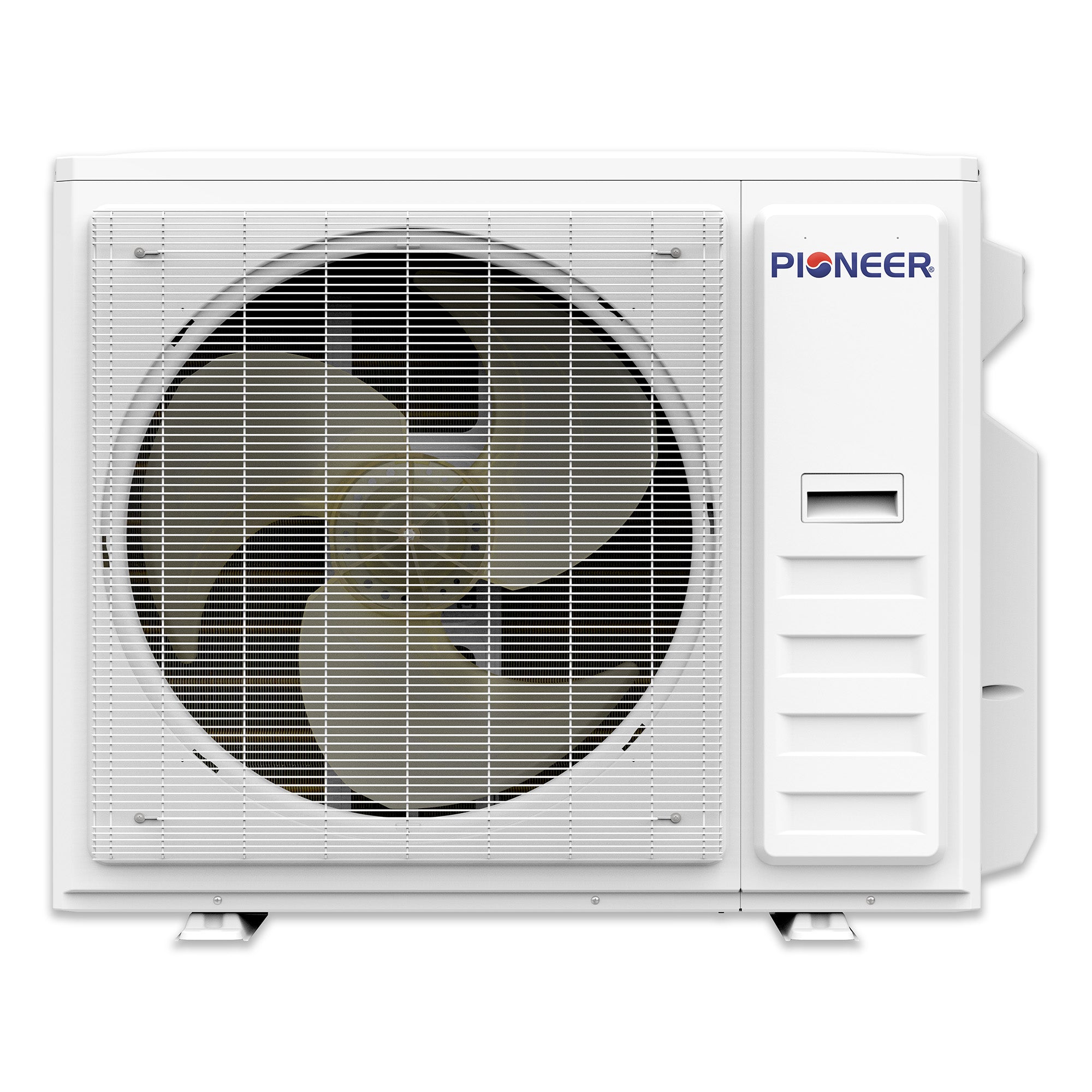

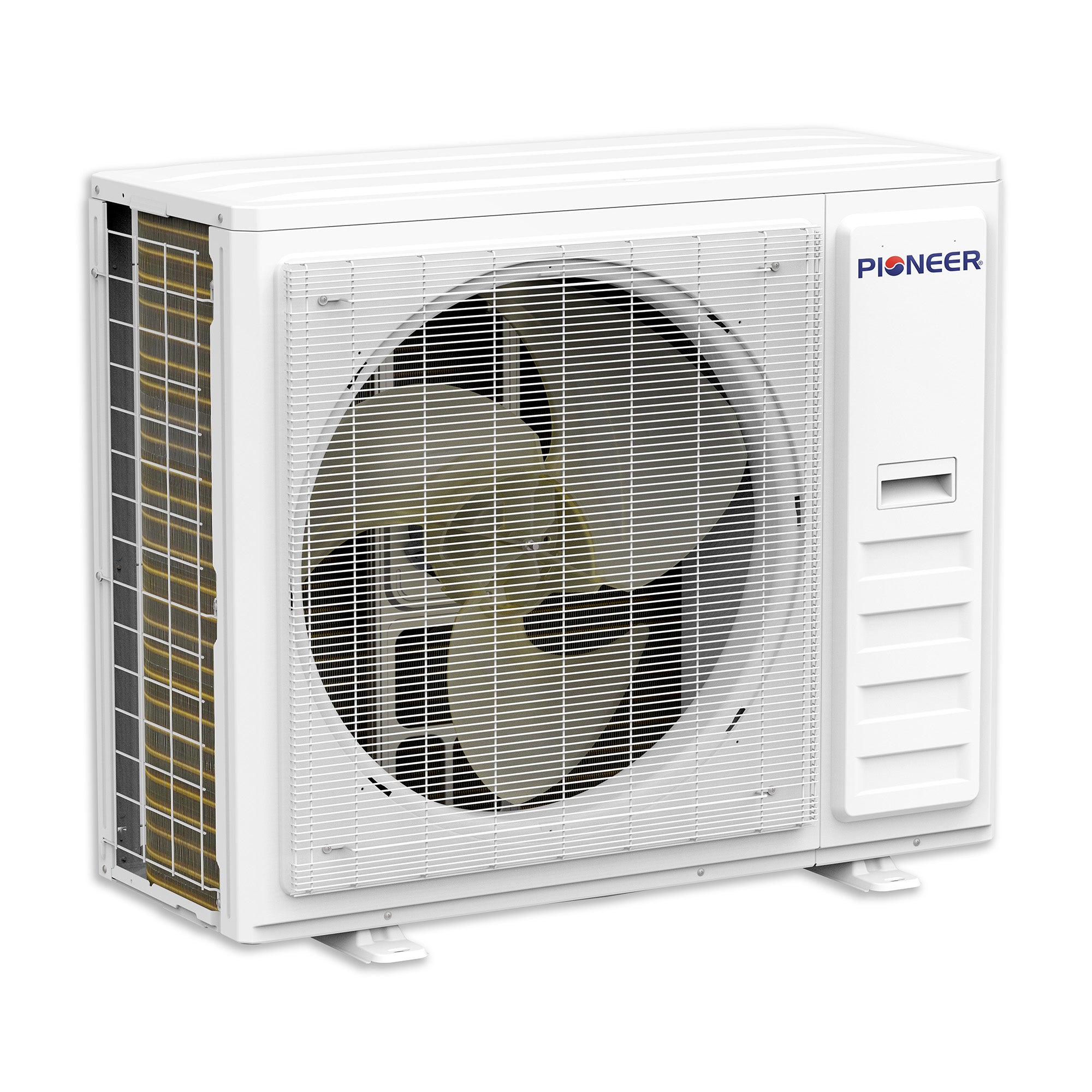

For HVAC contractors and business owners who need a powerful, flexible, and efficient solution for multi-zone climate control, the Pioneer Multi (4) Circuit Quantum Ultra Series outdoor unit is engineered to deliver. This quad-zone inverter heat pump is designed to support up to four indoor units, offering the perfect balance of high performance and adaptability for residential or commercial installations covering 700 to 1,350 square feet.
Imagine providing your customers with a system that can precisely control temperatures in multiple rooms or zones, each with its own needs, all powered by one reliable outdoor unit. This Pioneer multi-zone system lets you configure indoor units in a variety of combinations—wall-mounted units ranging from 9,000 to 24,000 BTU—so you can tailor the setup exactly to the space and demand. Whether it’s a small office with several individual zones or a larger home needing distinct climate control in different rooms, this unit can handle it with ease.
Its 35,000 BTU cooling capacity and 36,000 BTU heating capacity deliver strong, consistent comfort. With an impressive 22.5 SEER2 cooling rating and 9.5 HSPF2 heating performance, this system keeps energy costs low while maintaining reliable operation year-round. The variable inverter compressor adjusts output dynamically based on real-time demand from all connected indoor units, ensuring smooth, efficient performance without wasting power.
The outdoor unit’s smart self-regulating capacity means each indoor unit runs only as much as needed—between 30% and 100% of its capacity—while the outdoor unit modulates total output accordingly. This reduces wear and tear and prevents energy waste, making it a cost-effective choice for your customers. Plus, the system supports up to 133% of the outdoor unit’s rated capacity in combined indoor units, giving you room to customize without compromising performance.
With a quiet 65 dB(A) sound rating, this outdoor unit blends into any environment without disruption. The included R454B refrigerant is environmentally friendly, supporting green installations that meet modern standards.
As a contractor or business owner, you want equipment that’s easy to install, flexible to configure, and reliable in performance. The Pioneer Multi (4) Circuit Quantum Ultra Series meets those needs with its robust build, versatile indoor unit compatibility, and advanced inverter technology. Offering multiple indoor unit combinations means you can serve a wider range of customers with one outdoor unit, reducing inventory complexity while maximizing sales opportunities.
When you bring this system to your customers, you’re delivering not just heating and cooling, but a tailored comfort experience that adapts to their lifestyle or business needs, all while helping them save on energy bills. It’s a smart investment for your business and a win for your customers.
| Two Units | Three Units | Four Units |
|---|---|---|
| 9 + 9 | 9 + 9 + 9 | 9 + 9 + 9 + 9 |
| 12 + 9 | 12 + 9 + 9 | 12 + 9 + 9 + 9 |
| 18 + 9 | 18 + 9 + 9 | 12 + 12 + 9 + 9 |
| 24 + 9 | 12 + 12 + 9 | 12 + 12 + 12 + 9 |
| 12 + 12 | 18 + 12 + 9 | 12 + 12 + 12 + 12 |
| 18 + 12 | 12 + 12 + 12 |
18 + 9 + 9 + 9 |
| 24 + 12 | 24 + 12 + 9 | 18 + 12 + 9 + 9 |
| 18 + 18 | 18 + 12 + 12 | |
| 24 + 18 | 24 + 12 + 12 | |
| 24 + 24 | 18 + 18 + 12 |
18,000 / 48,000 BTU/h.
We offer Free Express Shipping on all of our products. Handling times are 1-2 business days and Delivery takes roughly 3-14 Business days
For more Shipping information visit here
We offer a 2 Year (730 Day) return for our products.
For more Return information visit here
HVAC Hive Warranty Information:
HVAC Hive is an authorized dealer for every product on our website. Every HVAC system and component comes with its original manufacturer's warranty, guaranteeing you receive a functional, quality product.
Our 5-Year Parts & Labor Warranty Promise: We go beyond the standard coverage. If a manufacturer's warranty doesn't cover your product for a full 5 years, HVAC Hive will extend both parts and labor warranty to complete the 5-year coverage period.
Example: If your manufacturer covers 2 years parts & labor, we'll cover an additional 3 years — giving you a full 5 years of parts and labor protection.
Warranty Coverage Includes:
Warranty Details:
Making a Warranty Claim: Contact our Worker Bee Support team at 1-888-712-2465 or karim@hvachive.com . We'll handle your claim quickly and professionally, covering both parts and labor costs. You can also contact the manufacturer directly if preferred.
Questions? Need help understanding your parts & labor warranty coverage? Our team is here to explain the details and ensure you're fully protected.
For HVAC contractors and business owners who need a powerful, flexible, and efficient solution for multi-zone climate control, the Pioneer Multi (4) Circuit Quantum Ultra Series outdoor unit is engineered to deliver. This quad-zone inverter heat pump is designed to support up to four indoor units, offering the perfect balance of high performance and adaptability for residential or commercial installations covering 700 to 1,350 square feet.
Imagine providing your customers with a system that can precisely control temperatures in multiple rooms or zones, each with its own needs, all powered by one reliable outdoor unit. This Pioneer multi-zone system lets you configure indoor units in a variety of combinations—wall-mounted units ranging from 9,000 to 24,000 BTU—so you can tailor the setup exactly to the space and demand. Whether it’s a small office with several individual zones or a larger home needing distinct climate control in different rooms, this unit can handle it with ease.
Its 35,000 BTU cooling capacity and 36,000 BTU heating capacity deliver strong, consistent comfort. With an impressive 22.5 SEER2 cooling rating and 9.5 HSPF2 heating performance, this system keeps energy costs low while maintaining reliable operation year-round. The variable inverter compressor adjusts output dynamically based on real-time demand from all connected indoor units, ensuring smooth, efficient performance without wasting power.
The outdoor unit’s smart self-regulating capacity means each indoor unit runs only as much as needed—between 30% and 100% of its capacity—while the outdoor unit modulates total output accordingly. This reduces wear and tear and prevents energy waste, making it a cost-effective choice for your customers. Plus, the system supports up to 133% of the outdoor unit’s rated capacity in combined indoor units, giving you room to customize without compromising performance.
With a quiet 65 dB(A) sound rating, this outdoor unit blends into any environment without disruption. The included R454B refrigerant is environmentally friendly, supporting green installations that meet modern standards.
As a contractor or business owner, you want equipment that’s easy to install, flexible to configure, and reliable in performance. The Pioneer Multi (4) Circuit Quantum Ultra Series meets those needs with its robust build, versatile indoor unit compatibility, and advanced inverter technology. Offering multiple indoor unit combinations means you can serve a wider range of customers with one outdoor unit, reducing inventory complexity while maximizing sales opportunities.
When you bring this system to your customers, you’re delivering not just heating and cooling, but a tailored comfort experience that adapts to their lifestyle or business needs, all while helping them save on energy bills. It’s a smart investment for your business and a win for your customers.
| Two Units | Three Units | Four Units |
|---|---|---|
| 9 + 9 | 9 + 9 + 9 | 9 + 9 + 9 + 9 |
| 12 + 9 | 12 + 9 + 9 | 12 + 9 + 9 + 9 |
| 18 + 9 | 18 + 9 + 9 | 12 + 12 + 9 + 9 |
| 24 + 9 | 12 + 12 + 9 | 12 + 12 + 12 + 9 |
| 12 + 12 | 18 + 12 + 9 | 12 + 12 + 12 + 12 |
| 18 + 12 | 12 + 12 + 12 |
18 + 9 + 9 + 9 |
| 24 + 12 | 24 + 12 + 9 | 18 + 12 + 9 + 9 |
| 18 + 18 | 18 + 12 + 12 | |
| 24 + 18 | 24 + 12 + 12 | |
| 24 + 24 | 18 + 18 + 12 |
18,000 / 48,000 BTU/h.
We offer Free Express Shipping on all of our products. Handling times are 1-2 business days and Delivery takes roughly 3-14 Business days
For more Shipping information visit here
We offer a 2 Year (730 Day) return for our products.
For more Return information visit here
HVAC Hive Warranty Information:
HVAC Hive is an authorized dealer for every product on our website. Every HVAC system and component comes with its original manufacturer's warranty, guaranteeing you receive a functional, quality product.
Our 5-Year Parts & Labor Warranty Promise: We go beyond the standard coverage. If a manufacturer's warranty doesn't cover your product for a full 5 years, HVAC Hive will extend both parts and labor warranty to complete the 5-year coverage period.
Example: If your manufacturer covers 2 years parts & labor, we'll cover an additional 3 years — giving you a full 5 years of parts and labor protection.
Warranty Coverage Includes:
Warranty Details:
Making a Warranty Claim: Contact our Worker Bee Support team at 1-888-712-2465 or karim@hvachive.com . We'll handle your claim quickly and professionally, covering both parts and labor costs. You can also contact the manufacturer directly if preferred.
Questions? Need help understanding your parts & labor warranty coverage? Our team is here to explain the details and ensure you're fully protected.
"Their technical expertise in commercial HVAC systems is outstanding. From equipment selection to installation support, they provided everything we needed. The bulk pricing saved us thousands on our multi-building project, and their 24/7 technical support kept us running smoothly."- Marcus R., HVAC Project Manager, 06/24
You'll hear from us during business hours
How it works:
1. Fill out the form below with your project details
2. We'll match you with 2-3 qualified installers in your area
3. Installers contact you directly with quotes and availability
4. You choose the best fit for your project
"I bought a heat pump online but wasn't sure about installation. HVAC Hive connected me with three local contractors within hours. I chose one based on reviews and pricing - he installed it perfectly the next week. Made the whole process so much easier!"- Jennifer M., Homeowner, Phoenix AZ
✓ No obligation quotes | ✓ All installers background checked | ✓ Free service - you only pay the installer
We'll connect you with installers within 48 hours during business days
Frequently Asked Questions about Pioneer® Multi (4) Circuit Quantum Ultra Series 22.5 SEER2 Quad Zone Outdoor Section Inverter++ Energy-Star Air Conditioner Heat Pump 230V
The Pioneer Quantum Ultra Series 22.5 SEER2 Quad Zone Outdoor Inverter Heat Pump features ultra-high energy efficiency, independent control for up to four zones, inverter technology for precise temperature regulation and quiet operation, Energy Star certification, and reliable year-round heating and cooling for multiple rooms.
The multi (4) circuit design allows a single outdoor unit to independently control and supply refrigerant to four separate indoor units, enabling customized cooling and heating for each zone or room.
This unit has a high SEER2 energy efficiency rating, which means it uses less electricity to provide the same cooling output, resulting in lower energy bills and greater long-term savings.
The Pioneer Quantum Ultra Series is generally not compatible with existing central HVAC systems and requires dedicated electrical connections, refrigerant line installation, and adherence to manufacturer installation guidelines.
For an Energy-Star certified outdoor heat pump, maintenance needs include regularly cleaning or replacing filters, inspecting and cleaning coils, checking refrigerant levels, clearing debris from around the unit, and scheduling annual professional servicing; warranty options typically include a limited parts warranty (often 5–10 years) and a separate compressor warranty, with coverage dependent on proper installation and registration.
