Mirage Ventus X 12,000 BTU 19.5 SEER Ductless Mini Split Air Conditioner and Heat Pump - 230V/60Hz

SKU VXH121A
Authorized Dealer Official
100% Authentic Guarantee
In stock, ready to ship

Fast shipping icon FREE EXPRESS SHIPPING: Process orders in 1 business day

Returns icon STRESS FREE RETURNS: 2 Year Returns

VIP icon PREMIUM QUALITY: Top Tier Products, Even Better Customer Care

Warranty icon 5 YEAR WARRANTY: We Believe In Our Products & Our Team

Professional installation icon PROFESSIONAL INSTALLATION: Get connected with certified, licensed installers in your area - Request installer quotes

$788.00

Notify me when back in stock

Estimated Shipping Widget will be displayed here!

Sticky Add to Cart Button
Description

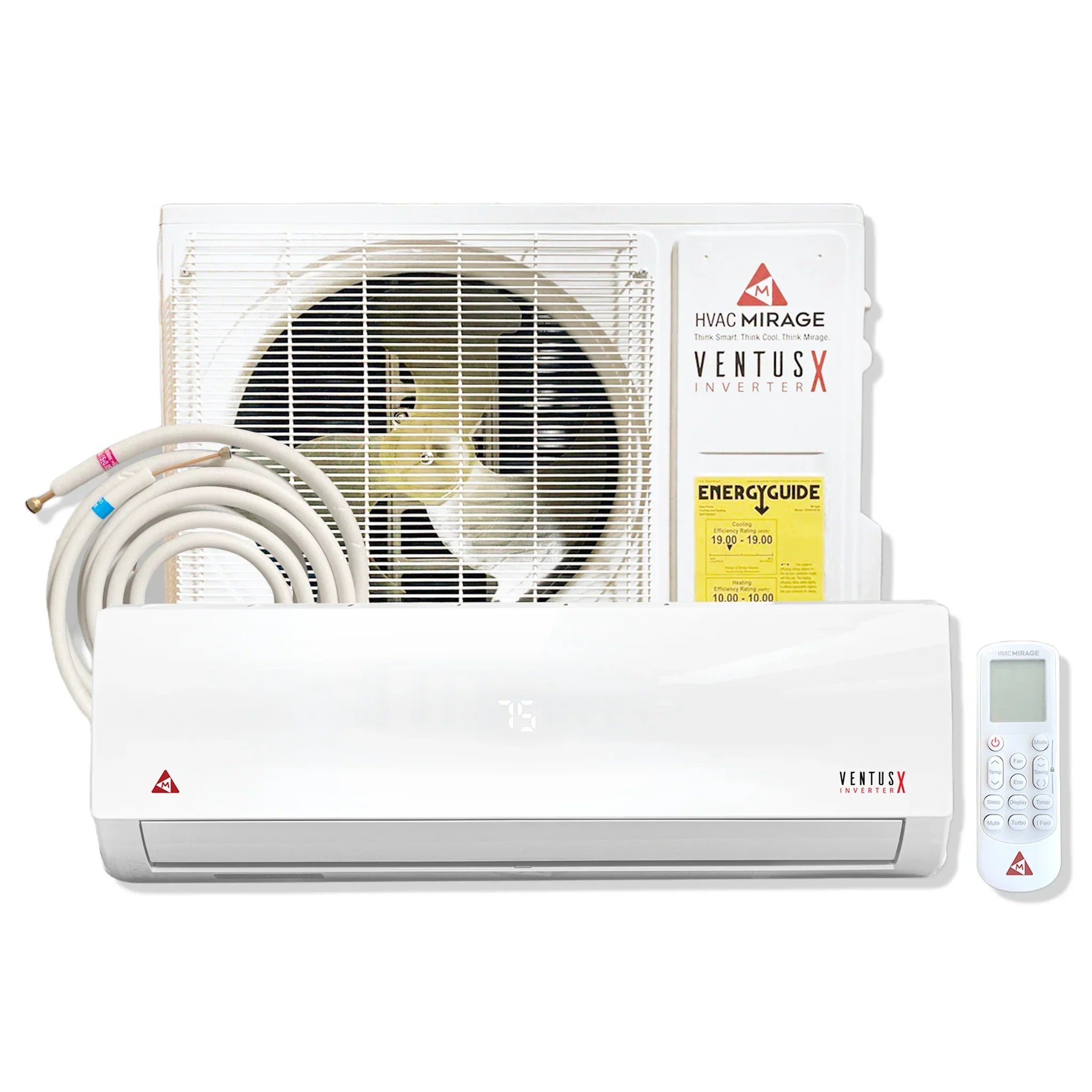

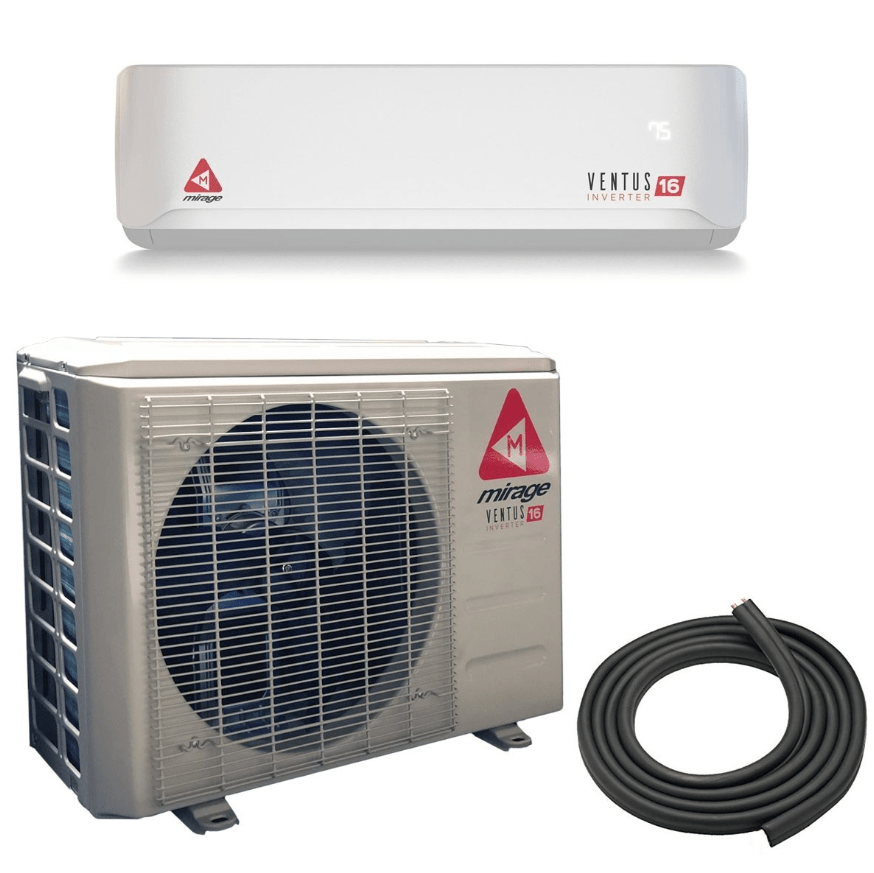

Mirage Ventus X 12,000 BTU Ductless Mini Split Air Conditioner and Heat Pump – Efficient Comfort for Medium Spaces

The Mirage Ventus X 12,000 BTU Ductless Mini Split offers high-efficiency heating and cooling for spaces up to 550 square feet. With an impressive SEER rating of up to 19.5 (listed as 20 in specs), this system provides reliable, duct-free climate control ideal for residential or small commercial applications.

Quiet and Comfortable Operation

The indoor air handler operates quietly between 28 and 48 dB, while the outdoor unit produces only 53 to 59 dB, ensuring minimal noise disturbance while maintaining optimal comfort.

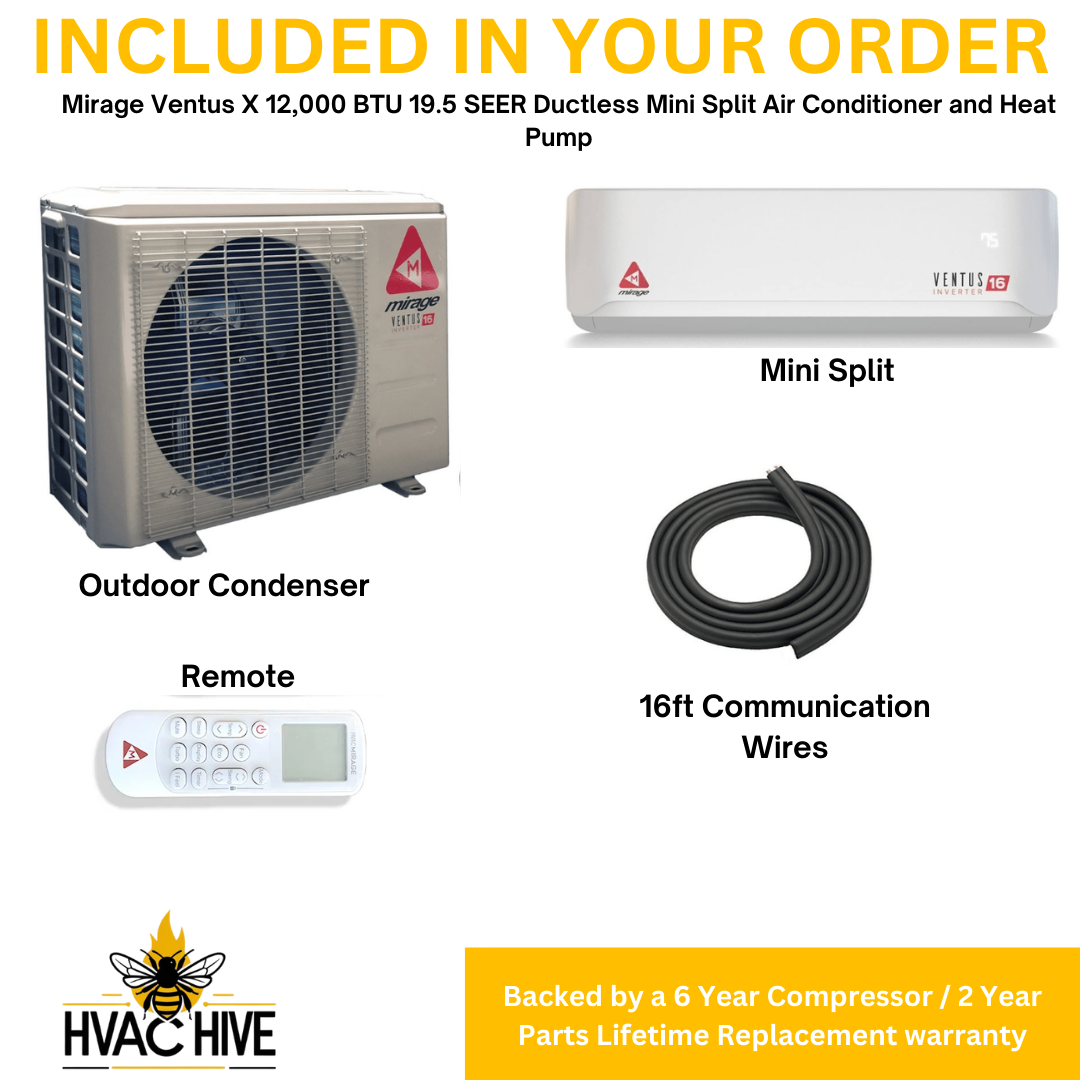

Installation Kit Included

This unit comes with a 16-foot installation kit that includes a copper line set, simplifying professional installation. The compact and sleek indoor unit fits discreetly on walls, while the outdoor unit is designed for durability and efficiency.

Advanced Features for Enhanced Comfort and Reliability
  • Heating Capacity: 14,000 BTU heat pump for effective warmth
  • Cooling Capacity: 12,500 BTU cooling power
  • R-410A Refrigerant: Environmentally friendly and efficient
  • 9 Swing Movement Settings: Customize airflow direction for personalized comfort
  • Sleep Mode & Louver Position Memory: Energy-saving and convenience features
  • Gold Fin Anti-Corrosion Coating: Protects outdoor unit from weather damage
  • Auto Restart: Automatically resumes operation after power outages
Warranty and Installation

Backed by a 2-year parts warranty and a 6-year compressor warranty when registered and installed by a licensed professional, the Ventus X 12,000 BTU mini split offers peace of mind and dependable performance.


Key Specifications
Specification Details

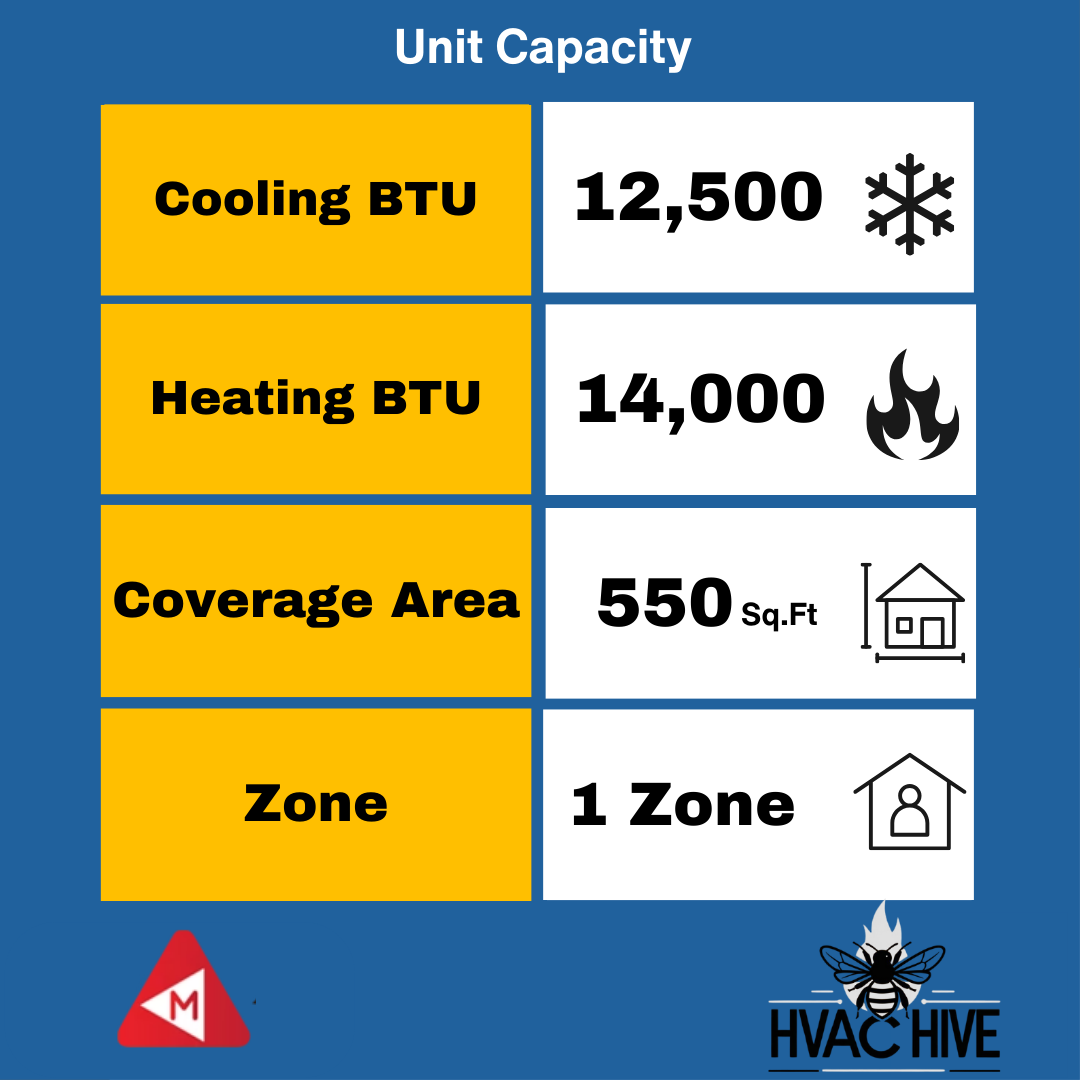

Cooling Capacity 12,500 BTU
Heating Capacity 14,000 BTU
SEER Rating 19.5 (20 listed)
Maximum Airflow 400 CFM
Refrigerant R-410A

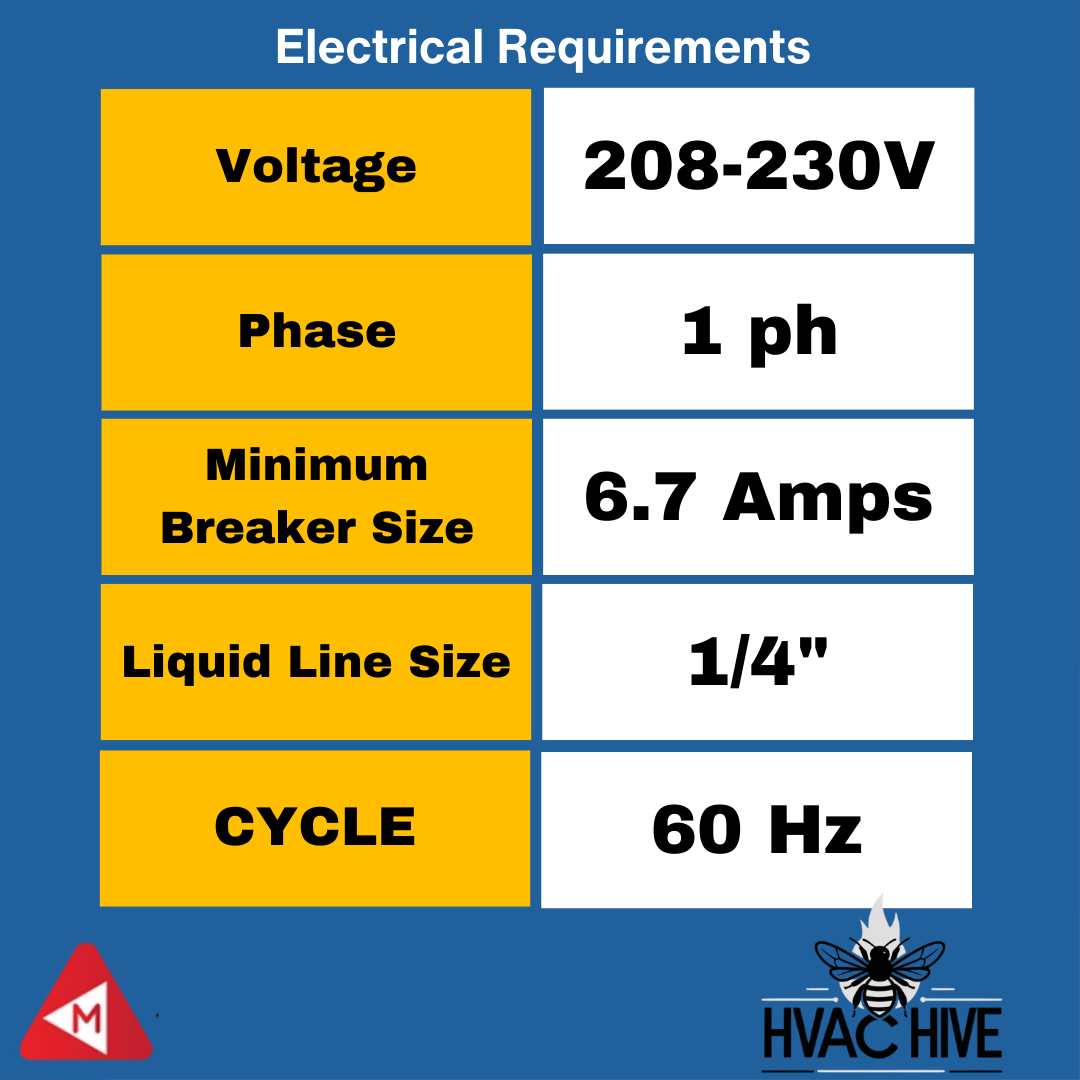

Voltage 208/230V, 1 Phase, 60 Hz
Minimum Breaker Size 6.7 Amps
Liquid Line Size 1/4"
Suction Line Size 3/8"
Indoor Unit Dimensions (H x W x D) 11.37" x 33.26" x 8.22"
Outdoor Unit Dimensions (H x W x D) 21.26" x 30.55" x 12.59"
Weight 103.63 lbs
Warranty 2 years parts / 6 years compressor

Why Choose Mirage Ventus X 12,000 BTU?
  • Efficient heating and cooling for medium-sized spaces without ductwork
  • Quiet indoor and outdoor units minimize noise distractions
  • Includes 16 ft. copper line set for easy professional installation
  • Durable design with corrosion-resistant coating for outdoor longevity
  • Advanced comfort features such as sleep mode and auto restart
  • Strong warranty coverage with professional installation

The Mirage Ventus X 12,000 BTU mini split is an ideal, energy-efficient solution for year-round comfort in medium-sized rooms or offices. It combines performance, durability, and ease of installation for contractors and homeowners alike.

  • 16 ft. install kit included. Contains 16ft line set, copper tubing
  • 14,000 BTU Heat Pump
  • Temperature range: 61°F – 86°
  • 9 different swing movement settings
  • R-410A environmentally friendly refrigerant
  • Sleep mode, louver position memory, gold fin anti-corrosion and auto restart functions
  • 2-year compressor, 6-year parts warranty when registered and when installed by a licensed professional
  • Installation by a licensed professional is required
  • Includes Remote

Looking for a Do-It-Yourself unit?  Call us 888 380 0743

 SKU   VXH121A
MANUFACTURER MIRAGE
  COOLING BTU 12,500
HEATING BTU 14,000
  MAXIMUM CFM 400
  REFRIGERANT   R410A
SEER   20
  LIQUID LINE 1/4"
  SUCTION LINE 3/8"
ELECTRICAL 208/230V 1 Phase 60 Hz
MIN. BREAKER SIZE   6.7
TONNAGE   1.0 Ton
HEIGHT   Indoor Unit: 11.37" Outdoor Unit: 21.26"
WIDTH   Indoor Unit: 33.26" Outdoor Unit: 30.55"
DEPTH   Indoor Unit: 8.22" Outdoor Unit: 12.59"
WEIGHT   103.63 lbs
WARRANTY   2 years warranty parts | 6 years warranty compressor
Shipping and Return

We offer Free Express Shipping on all of our products. Handling times are 1-2 business days and Delivery takes roughly 3-14 Business days

For more Shipping information visit here

We offer a 2 Year (730 Day) return for our products.

For more Return information visit here

COVERAGE AREA

HIVE WARRANTY

HVAC Hive Warranty Information:

HVAC Hive is an authorized dealer for every product on our website. Every HVAC system and component comes with its original manufacturer's warranty, guaranteeing you receive a functional, quality product.

Our 5-Year Parts & Labor Warranty Promise: We go beyond the standard coverage. If a manufacturer's warranty doesn't cover your product for a full 5 years, HVAC Hive will extend both parts and labor warranty to complete the 5-year coverage period.

Example: If your manufacturer covers 2 years parts & labor, we'll cover an additional 3 years — giving you a full 5 years of parts and labor protection.

Warranty Coverage Includes:

  • Parts replacement for manufacturing defects
  • Labor costs for covered repairs
  • System malfunctions and component failures

Warranty Details:

  • Residential, light commercial, and full commercial warranties vary based on your usage
  • Specific warranty terms and coverage periods are listed on each product page
  • Both parts and labor are covered under our extended warranty program

Making a Warranty Claim: Contact our Worker Bee Support team at 1-888-712-2465 or karim@hvachive.com . We'll handle your claim quickly and professionally, covering both parts and labor costs. You can also contact the manufacturer directly if preferred.

Questions? Need help understanding your parts & labor warranty coverage? Our team is here to explain the details and ensure you're fully protected.

Contact US
Request an Installer

Product Overview

  • Zone / ROOM:

    Zone / ROOM: 1 Zone

  • Air Handler BTU:

    Air Handler BTU: 12k

  • Condenser BTU:

    Condenser BTU: 12k

  • Outdoor Operating Temp (Cool/ heat):

    Outdoor Operating Temp (Cool/ heat): Heating: -4°F to 75°F & Cooling: 0°F to 115°F

  • Warranty

    Warranty 2 Years of Parts Coverage & a 6 Year Compressor Warranty

Description

Mirage Ventus X 12,000 BTU Ductless Mini Split Air Conditioner and Heat Pump – Efficient Comfort for Medium Spaces

The Mirage Ventus X 12,000 BTU Ductless Mini Split offers high-efficiency heating and cooling for spaces up to 550 square feet. With an impressive SEER rating of up to 19.5 (listed as 20 in specs), this system provides reliable, duct-free climate control ideal for residential or small commercial applications.

Quiet and Comfortable Operation

The indoor air handler operates quietly between 28 and 48 dB, while the outdoor unit produces only 53 to 59 dB, ensuring minimal noise disturbance while maintaining optimal comfort.

Installation Kit Included

This unit comes with a 16-foot installation kit that includes a copper line set, simplifying professional installation. The compact and sleek indoor unit fits discreetly on walls, while the outdoor unit is designed for durability and efficiency.

Advanced Features for Enhanced Comfort and Reliability
  • Heating Capacity: 14,000 BTU heat pump for effective warmth
  • Cooling Capacity: 12,500 BTU cooling power
  • R-410A Refrigerant: Environmentally friendly and efficient
  • 9 Swing Movement Settings: Customize airflow direction for personalized comfort
  • Sleep Mode & Louver Position Memory: Energy-saving and convenience features
  • Gold Fin Anti-Corrosion Coating: Protects outdoor unit from weather damage
  • Auto Restart: Automatically resumes operation after power outages
Warranty and Installation

Backed by a 2-year parts warranty and a 6-year compressor warranty when registered and installed by a licensed professional, the Ventus X 12,000 BTU mini split offers peace of mind and dependable performance.


Key Specifications
Specification Details
Cooling Capacity 12,500 BTU
Heating Capacity 14,000 BTU
SEER Rating 19.5 (20 listed)
Maximum Airflow 400 CFM
Refrigerant R-410A
Voltage 208/230V, 1 Phase, 60 Hz
Minimum Breaker Size 6.7 Amps
Liquid Line Size 1/4"
Suction Line Size 3/8"
Indoor Unit Dimensions (H x W x D) 11.37" x 33.26" x 8.22"
Outdoor Unit Dimensions (H x W x D) 21.26" x 30.55" x 12.59"
Weight 103.63 lbs
Warranty 2 years parts / 6 years compressor

Why Choose Mirage Ventus X 12,000 BTU?
  • Efficient heating and cooling for medium-sized spaces without ductwork
  • Quiet indoor and outdoor units minimize noise distractions
  • Includes 16 ft. copper line set for easy professional installation
  • Durable design with corrosion-resistant coating for outdoor longevity
  • Advanced comfort features such as sleep mode and auto restart
  • Strong warranty coverage with professional installation

The Mirage Ventus X 12,000 BTU mini split is an ideal, energy-efficient solution for year-round comfort in medium-sized rooms or offices. It combines performance, durability, and ease of installation for contractors and homeowners alike.

  • 16 ft. install kit included. Contains 16ft line set, copper tubing
  • 14,000 BTU Heat Pump
  • Temperature range: 61°F – 86°
  • 9 different swing movement settings
  • R-410A environmentally friendly refrigerant
  • Sleep mode, louver position memory, gold fin anti-corrosion and auto restart functions
  • 2-year compressor, 6-year parts warranty when registered and when installed by a licensed professional
  • Installation by a licensed professional is required
  • Includes Remote

Looking for a Do-It-Yourself unit?  Call us 888 380 0743

 SKU   VXH121A
MANUFACTURER MIRAGE
  COOLING BTU 12,500
HEATING BTU 14,000
  MAXIMUM CFM 400
  REFRIGERANT   R410A
SEER   20
  LIQUID LINE 1/4"
  SUCTION LINE 3/8"
ELECTRICAL 208/230V 1 Phase 60 Hz
MIN. BREAKER SIZE   6.7
TONNAGE   1.0 Ton
HEIGHT   Indoor Unit: 11.37" Outdoor Unit: 21.26"
WIDTH   Indoor Unit: 33.26" Outdoor Unit: 30.55"
DEPTH   Indoor Unit: 8.22" Outdoor Unit: 12.59"
WEIGHT   103.63 lbs
WARRANTY   2 years warranty parts | 6 years warranty compressor
Shipping and Return

We offer Free Express Shipping on all of our products. Handling times are 1-2 business days and Delivery takes roughly 3-14 Business days

For more Shipping information visit here

We offer a 2 Year (730 Day) return for our products.

For more Return information visit here

COVERAGE AREA

HIVE WARRANTY

HVAC Hive Warranty Information:

HVAC Hive is an authorized dealer for every product on our website. Every HVAC system and component comes with its original manufacturer's warranty, guaranteeing you receive a functional, quality product.

Our 5-Year Parts & Labor Warranty Promise: We go beyond the standard coverage. If a manufacturer's warranty doesn't cover your product for a full 5 years, HVAC Hive will extend both parts and labor warranty to complete the 5-year coverage period.

Example: If your manufacturer covers 2 years parts & labor, we'll cover an additional 3 years — giving you a full 5 years of parts and labor protection.

Warranty Coverage Includes:

  • Parts replacement for manufacturing defects
  • Labor costs for covered repairs
  • System malfunctions and component failures

Warranty Details:

  • Residential, light commercial, and full commercial warranties vary based on your usage
  • Specific warranty terms and coverage periods are listed on each product page
  • Both parts and labor are covered under our extended warranty program

Making a Warranty Claim: Contact our Worker Bee Support team at 1-888-712-2465 or karim@hvachive.com . We'll handle your claim quickly and professionally, covering both parts and labor costs. You can also contact the manufacturer directly if preferred.

Questions? Need help understanding your parts & labor warranty coverage? Our team is here to explain the details and ensure you're fully protected.

Contact US

Commercial HVAC PROS!

Unlock Installer Benefits Now:

  • ✓ Exclusive BULK Pricing
  • ✓ Limited Time Deals
  • ✓ Unmatched Service & Support
  • ✓ Technical support
  • ✓ Extended Warranty & Maintenance
"Their technical expertise in commercial HVAC systems is outstanding. From equipment selection to installation support, they provided everything we needed. The bulk pricing saved us thousands on our multi-building project, and their 24/7 technical support kept us running smoothly."
- Marcus R., HVAC Project Manager, 06/24

You'll hear from us during business hours

Request an Installer

Need Professional Installation?

Get Connected with Certified HVAC Installers:

  • ✓ Pre-Vetted, Licensed & Insured Installers
  • ✓ 2-3 Local Options in Your Area
  • ✓ Specialists in Your Equipment Type
  • ✓ Competitive, Transparent Pricing
  • ✓ Fast Response - Within 24 Hours

How it works:

1. Fill out the form below with your project details
2. We'll match you with 2-3 qualified installers in your area
3. Installers contact you directly with quotes and availability
4. You choose the best fit for your project

"I bought a heat pump online but wasn't sure about installation. HVAC Hive connected me with three local contractors within hours. I chose one based on reviews and pricing - he installed it perfectly the next week. Made the whole process so much easier!"
- Jennifer M., Homeowner, Phoenix AZ

✓ No obligation quotes | ✓ All installers background checked | ✓ Free service - you only pay the installer

We'll connect you with installers within 48 hours during business days

Frequently Asked Questions about Mirage Ventus X 12,000 BTU 19.5 SEER Ductless Mini Split Air Conditioner and Heat Pump - 230V/60Hz

Most Frequently Asked Questions

Yes, Mirage mini-splits are generally regarded as a good choice for affordable, reliable, and energy-efficient heating and cooling, though they may not offer as many advanced features as some premium brands.

A 12,000 BTU mini-split can cool approximately 450 to 550 square feet.

Mirage mini splits typically last 10 to 16 years with proper maintenance.

Other Questions

It is not inherently cheaper to run a 110V or 220V mini-split, as both use similar amounts of electricity for the same cooling capacity; the main differences are in installation requirements, not operating cost.

Negatives of mini splits include higher initial costs, visible indoor units, need for regular maintenance, and reduced efficiency or performance in very cold climates.
