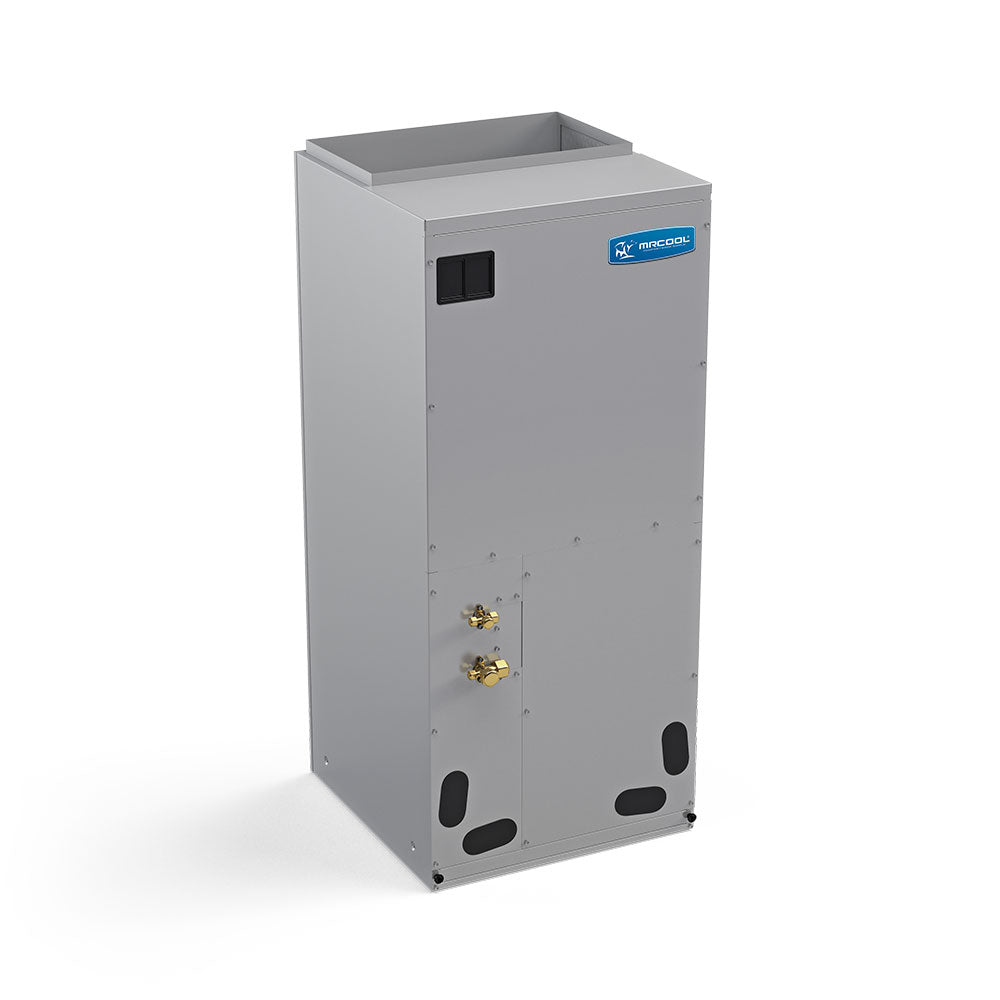

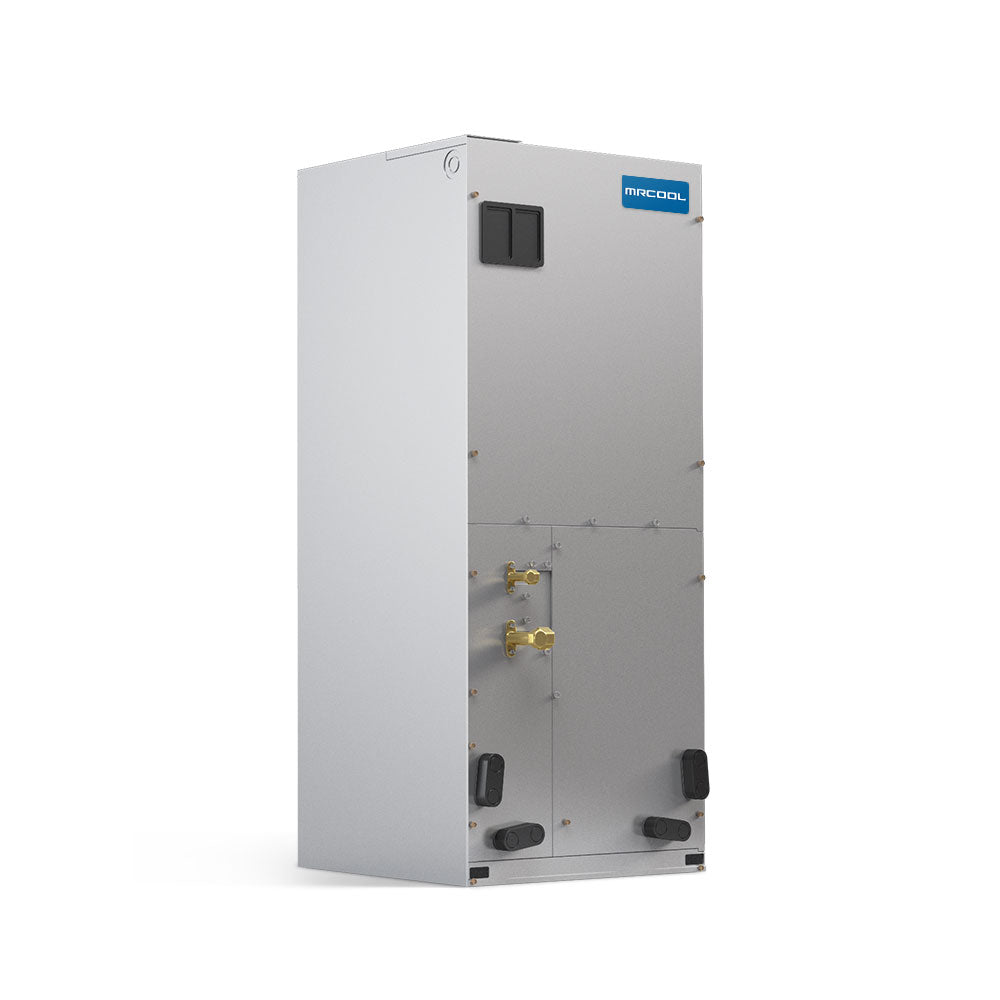

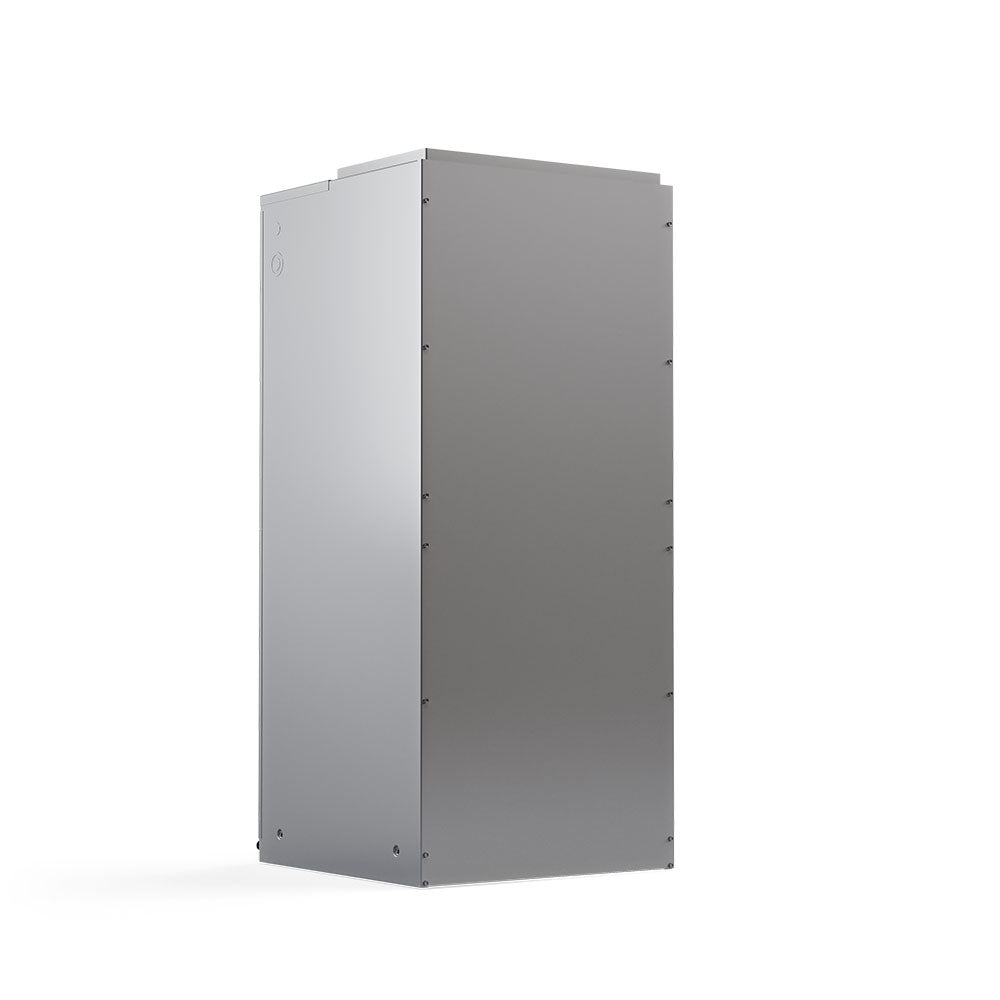

The MRCOOL Universal High-ESP Air Handler (MDUI18036E) represents a breakthrough solution for HVAC installations where conventional air handlers fail to perform. Engineered specifically for challenging environments like manufactured homes and complex ductwork systems, this specialized 3-ton (36,000 BTU) unit delivers exceptional performance where standard equipment simply can't compete.
With an industry-leading static pressure capacity of 250Pa, the Universal High-ESP Air Handler stands in a class of its own. This exceptional capability enables the system to overcome significant airflow restrictions found in:
Rather than compromising on comfort and efficiency when facing these demanding scenarios, this specialized air handler maintains optimal performance where standard equipment would struggle with inadequate airflow, excessive noise, and premature component failure.
At the heart of this remarkable system is an advanced DC motor that fundamentally outperforms the PSC motors found in typical air handlers. This sophisticated motor:
The precision-engineered fan blade design works in harmony with the advanced motor to deliver exceptional airflow while maintaining whisper-quiet operation – a critical advantage in the space-constrained environments of manufactured housing where equipment noise can significantly impact comfort.
Installation Flexibility for Challenging Spaces
The MDUI18036E offers exceptional installation versatility with multi-position capability for upflow or horizontal mounting orientations. This flexibility proves invaluable when working within the confined spaces and unique structural constraints of manufactured housing and retrofit applications.
The unit's thoughtfully engineered dimensions (21-1/4"W x 21-1/4"D x 48-1/4"H) strike the perfect balance between compact footprint and performance capability, allowing installation in restricted spaces without compromising airflow capacity or serviceability.

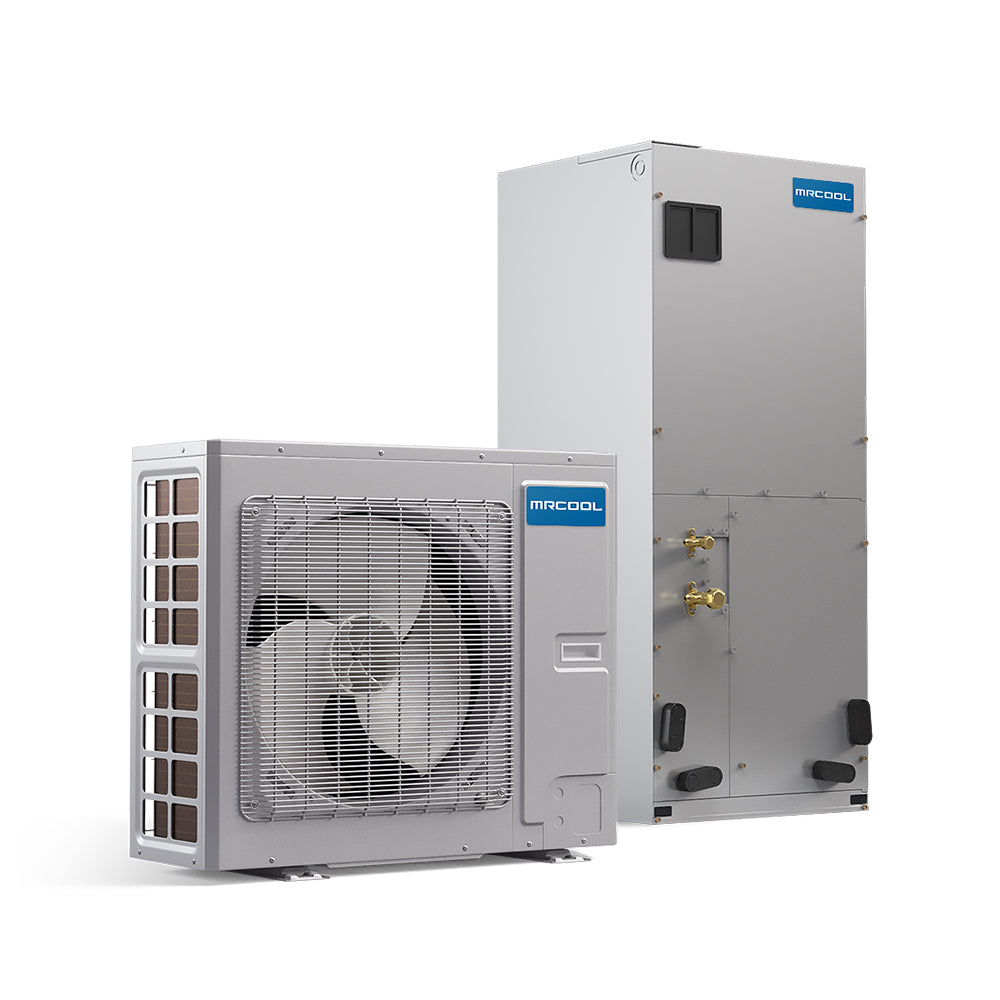

Unlike proprietary systems that lock you into specific equipment combinations, the Universal High-ESP Air Handler works seamlessly with any compatible third-party condenser, including both heat pumps and cooling-only systems. This compatibility extends to connection methods, offering three distinct options:
This connection flexibility eliminates the need for specialized tools in challenging installation environments and provides options when working within the unique constraints of manufactured housing.
The Universal High-ESP Air Handler incorporates numerous practical features that address the specific challenges of high static pressure installations:
The MDUI18036E excels in precisely the applications where conventional air handlers struggle:
With its exceptional 10-year registered limited warranty and certifications from ETL, Energy Star, and AHRI, the Universal High-ESP Air Handler delivers the reliability and performance assurance essential for these demanding applications.
The MRCOOL Universal High-ESP Air Handler represents the specialized solution needed when conventional equipment simply won't suffice. By providing superior performance in the most challenging installations, this innovative system ensures comfort and efficiency in applications where compromise was previously the only option.
Key Features
PRODUCT SPECIFICATIONS:
| Product Dimensions | 21-1/4"W x 21-1/4"D x 48-1/4"H |
| Product Weight | 156.5 lbs |
| SEER | 18 |
| EER | 10 |
| HSPF | 10 |
| CFM | 1000 |
| Tonnage | 2-3 Ton |
| Cooling Capacity | 36000 BTU |
| Heating Capacity | 36000 BTU |
| Electrical Requirements | Requires a minimum of 208V-230V/60HZ/15A (please check your home meets this electrical requirement prior to purchase) |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Fuse Breaker | 15 A |
| Min Circuit Ampacity | 4 AMP |
| Color | Gray |
| Max Coverage Area | |
| Refrigerant Type | R-410A |
| Decibel Rating | 47 dBA |
| Number of Speeds | 8 Speed |
| lnverter | DC |
| Min Ambient Cool | -5F - 129.2F |
| Min Ambient Heat | -22 F - 75.2F |
| Lineset Included | No |
| Liquid Line Size | 3/8 in |
| Suction Line Size | 3/4 in |
| Blower Motor HP | 1/2 |
| Filter Type | Washable |
| Filter Size | 19-5/16 X 20-5/16 X 5/8 |
| Auxiliary Heater Available | Yes |
| Auxiliary Heater Sizes | 5 KW / 8KW / 10KW |
| Overload Protection | Yes |
| Certifications | ETL Energy Star AHRI |
| Warranty | 10 Year Limited Warranty |
| Proposition 65 Warning | Yes |
