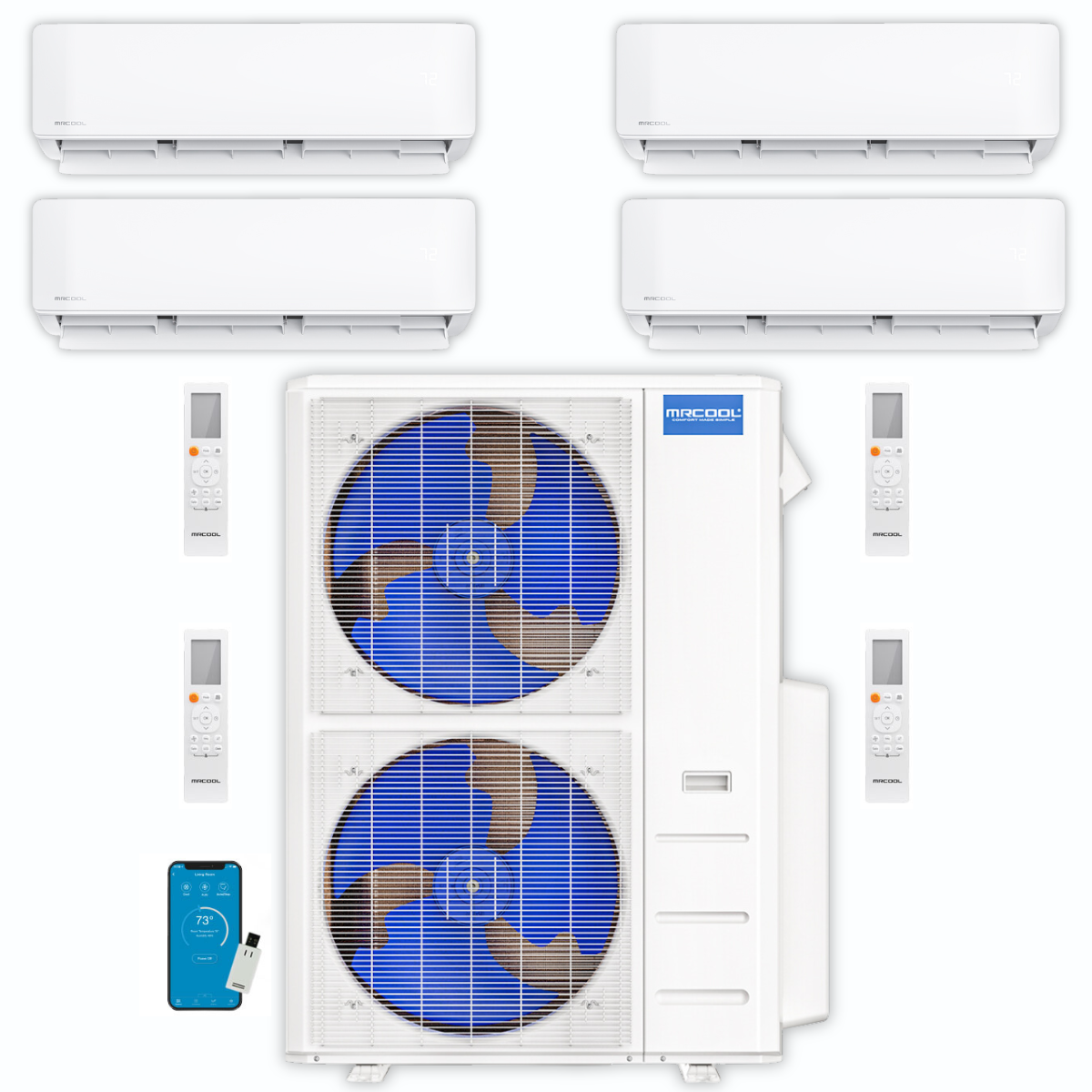

The MRCOOL DIY 4th Generation Multi-Zone Mini Split System offers a complete, flexible, and energy-efficient solution to heat and cool your home, office, or other spaces — all without the need to hire an HVAC technician. This 5-zone system includes one 48,000 BTU condenser and four wall-mounted air handlers of varying capacities, designed for easy self-installation with no special tools or vacuum equipment required.
48K BTU Multi-Zone Condenser
Model: DIY-MULTI5-48HP230C
Air Handlers:
Each air handler supports multiple operating modes: COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP for maximum comfort and energy savings.
DIY Installation:
Designed for easy self-installation without the need for expensive HVAC technicians or specialized equipment. The system uses pre-charged line sets (not included, must be purchased separately) that connect quickly and securely.
Flexible Multi-Zone Setup:
The combined BTU output of all air handlers will never exceed the 48K BTU rating of the condenser, ensuring balanced performance and efficiency.
Smart Control:
Each air handler can be controlled individually via the MRCOOL Smart HVAC app on Apple or Android devices, offering remote access and scheduling for convenience.
Energy Efficient:
The condenser’s high SEER2 rating of 20.5 qualifies for many energy or tax rebates, helping you save on operating costs.
Robust Performance in Extreme Weather:
The condenser maintains heating functionality even when outdoor temperatures drop to -5°F, suitable for colder climates.
Compact and Versatile Air Handlers:
Lightweight and easy to mount on most interior walls with included mounting plates.
Linesets and Communication Wires:
The system does not include the refrigerant linesets and communication wires for each air handler. These must be purchased separately to complete your installation.
Warranty:
Standard 7-year compressor and 5-year parts warranty included. Register with MRCOOL Care Program for lifetime compressor warranty.
The MRCOOL DIY 4th Generation 48K BTU Multi-Zone Mini Split System is a versatile, energy-efficient, and user-friendly HVAC solution for heating and cooling multiple rooms or zones. With four wall-mounted air handlers ranging from 9K to 18K BTU, this system provides flexible coverage for a variety of spaces. Its DIY design saves installation costs and hassle, while smart app control adds convenience and customization.
Experience the freedom and savings of a professional-grade mini split system you can install yourself!
PRODUCT SPECIFICATIONS:
Condenser
| Product Dimensions |
37.48"W x 16.34"D x 52.48"H |
| Cooling Capacity | 48,000 BTU |
| Heating Capacity | 48,000 BTU |
| Zone Capacity | 5 |
| Cool Mode - Outdoor Operating Temperature Range | 5°F ~ 122°F |
| Heat Mode - Outdoor Operating Temperature Range | 5°F ~ 75.2°F |
| SEER2 | 20.50 |
| EER2 | 11 |
| HSPF2 | 9.2 |
| Voltage | Requires a minimum of 208V-230V/60HZ/18-25A (please check your home meets this electrical requirement prior to purchase) |
| Registered Warranty | 7 Years Replacement on Compressor, 5 Years Parts |
Air Handler 9K BTU
| Product Dimensions | 31.57"W x 7.44"D x 11.69"H |
| Mount Type | Wall |
| Cooling Capacity | 9,000 BTU |
| Heating Capacity | 9,000 BTU |
| Registered Warranty | 5 Years Parts |
| Modes | Auto (Auto selects Cool, Heat or Fan-Only) Cool Heat Dry Fan Only Sleep |
Air Handler 12K BTU
| Product Dimensions | 31.57"W x 7.44"D x 11.69"H |
| Mount Type | Wall |
| Cooling Capacity | 12,000 BTU |
| Heating Capacity | 12,000 BTU |
| Registered Warranty | 5 Years Parts |
| Modes | Auto (Auto selects Cool, Heat or Fan-Only) Cool Heat Dry Fan Only Sleep |
Air Handler 18K BTU
| Product Dimensions | 34.61"W x 8.90"D x 13.19"H |
| Mount Type | Wall |
| Cooling Capacity | 18,000 BTU |
| Heating Capacity | 18,000 BTU |
| Registered Warranty | 5 Years Parts |
| Modes | Auto (Auto selects Cool, Heat or Fan-Only) Cool Heat Dry Fan Only Sleep |
