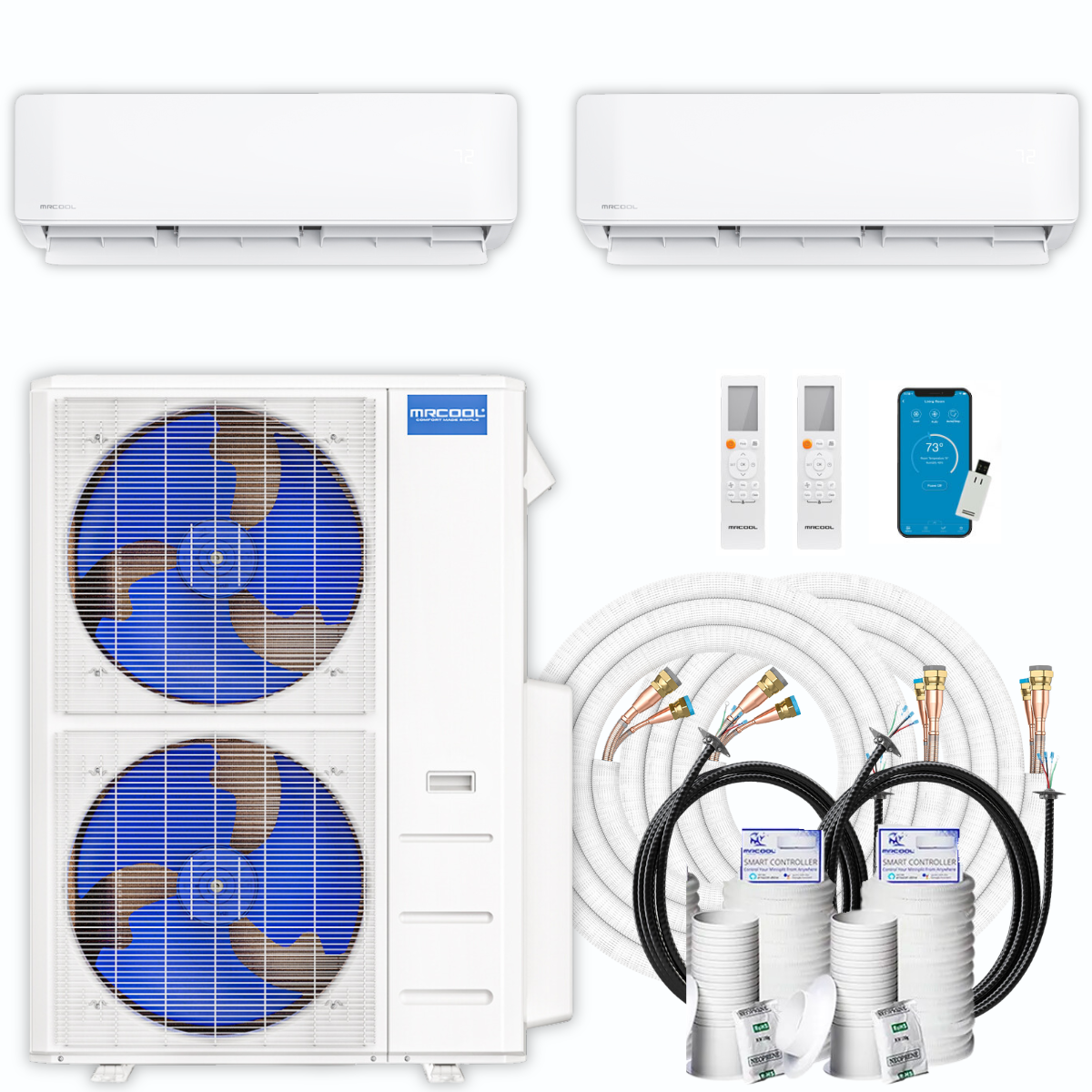

MRCOOL DIY Mini Split - 45,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 50 ft. Install Kit, DIYM248HPW02C32

Name: MRCOOL DIY Mini Split - 45,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 50 ft. Install Kit, DIYM248HPW02C32
Brand: MRCOOL
SKU: DIYM248HPW02C32
Price: 7730.8 USD
Availability: InStock

SKU DIYM248HPW02C32

by MRCOOL

Authorized Dealer Official

100% Authentic Guarantee

In stock, ready to ship

Fast shipping icon FREE EXPRESS SHIPPING: Process orders in 1 business day

Returns icon STRESS FREE RETURNS: 2 Year Returns

VIP icon PREMIUM QUALITY: Top Tier Products, Even Better Customer Care

Warranty icon 5 YEAR WARRANTY: We Believe In Our Products & Our Team

Professional installation icon PROFESSIONAL INSTALLATION: Get connected with certified, licensed installers in your area - Request installer quotes

$7,730.80

Quantity

Estimated Shipping Widget will be displayed here!

Sticky Add to Cart Button

Description
Efficient and Durable Condenser
Versatile Air Handlers for Different Room Sizes
Easy Installation with Extended 50 ft. Pre-Charged Quick Connect Line Sets
Key Features
Summary
Shipping and Return
COVERAGE AREA
HIVE WARRANTY
Contact US
Request an Installer

Description

MRCOOL DIY Mini Split - 45,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 50 ft. Install Kit, DIYM248HPW02C32

The MRCOOL DIY Mini Split 45,000 BTU 2 Zone system with a 50 ft. install kit offers a flexible, efficient, and easy-to-install heating and cooling solution for homes, garages, workshops, and more. This 4th Gen DIY system allows for reliable multi-zone climate control with extended line set length to accommodate larger or more complex installations.

Efficient and Durable Condenser

The 48,000 BTU condenser provides strong performance with a 20.5 SEER2 and 8.5 HSPF-5 rating, delivering energy-efficient operation that helps lower utility costs. The Gold Fin® condenser coating guards against corrosion and environmental damage, ensuring long-lasting durability. This unit maintains reliable heating even when outdoor temperatures drop to 5°F. The system includes a 7-year compressor warranty and a 5-year parts warranty for peace of mind.

Versatile Air Handlers for Different Room Sizes

This 2-zone system includes two air handlers designed for various space needs:

9,000 BTU Air Handler: Best suited for smaller rooms between 180 and 375 square feet, such as bedrooms or offices.
36,000 BTU Air Handler: Designed for large rooms from 1,001 to 1,500 square feet, ideal for open-concept or larger spaces.

Both air handlers offer multiple modes—COOL, HEAT, AUTO, DRY, and SLEEP—providing customizable comfort throughout the year. Their compact, lightweight design allows for quick and easy installation. The SmartHVAC app compatibility lets users control the system remotely for added convenience.

Easy Installation with Extended 50 ft. Pre-Charged Quick Connect Line Sets

MRCOOL’s patented Pre-Charged Quick Connect Line Sets simplify installation by removing the need for vacuum pumps or special tools. Each line set is pre-filled with R-410A refrigerant for fast, hassle-free setup. The 50 ft. install kit provides maximum reach, making it suitable for larger homes or buildings with greater distance between condenser and air handlers. Coupler kits are available to extend line sets further if needed. This design reduces labor time and installation costs.

Key Features

DIY-Friendly: Pre-charged quick connect line sets reduce installation complexity and labor expenses.
Energy Efficient: High SEER2 and HSPF ratings help lower operating costs.
Durable: Gold Fin® coating and solid warranties ensure long-term reliability.
Smart Control: Manage the system remotely via SmartHVAC app.
Flexible Coverage: Two air handlers cover a broad range of room sizes for tailored comfort.

Summary

The MRCOOL DIY Mini Split 45,000 BTU 2 Zone system with a 50 ft. install kit offers an efficient, reliable, and easy-to-install solution for multi-zone heating and cooling. Its extended line set length provides maximum installation flexibility without sacrificing performance or ease of use. This system is ideal for contractors and DIY users looking to deliver customized comfort with minimal installation effort.

Condenser (48K BTU)

Streamlined Installation: Take control with MRCOOL’s patented Pre-Charged Quick Connect Line Sets, making installation a breeze without the need for professional assistance.
Resilient Protection: Stay safeguarded against wear with the Gold Fin® condenser coating.
Unmatched Efficiency: Enjoy remarkable energy savings with a 20.5 SEER2 and 8.5 HSPF-5 rating.
Winter-Ready: Generate warmth reliably, even when outdoor temperatures reach as low as 5°F.
Comprehensive Warranty: Benefit from a 7-year compressor warranty and a 5-year parts warranty.

Air Handler (9K BTU)

Versatile Climate Control: Whether you're in the mood for COOL, HEAT, AUTO, DRY, or SLEEP, these Air Handlers ensure comfort year-round.
Perfect Room Coverage: Optimized for spaces ranging from 180 to 375 square feet, perfect for smaller spaces and cozy corners.
Smart Control Anywhere: Take command with SmartHVAC app compatibility, offering fingertip convenience from anywhere on the planet.
Effortless Installation: The compact and lightweight design makes mounting quick and simple, minimizing installation efforts.
Quick Connect System: With MRCOOL’s Pre-Charged Quick Connect Line Set, you can set up easily—no vacuuming or complex tools required!

Air Handler (36K BTU)

Versatile Climate Control: Whether it’s COOL, HEAT, AUTO, DRY, or SLEEP, this Air Handler adapts to deliver optimal performance all year long.
Perfect Room Coverage: Designed for large spaces of 1,001 to 1,500 square feet, making it ideal for open-concept or larger rooms.
Smart Control Anywhere: Stay in charge with SmartHVAC app compatibility and manage your comfort conveniently.
Effortless Installation: The compact and lightweight design minimizes hassle for a quick and smooth installation.
Quick Connect System: Say goodbye to complexity with MRCOOL’s Pre-Charged Quick Connect Line Set—installation made simple!

Line Set

Optimized System Performance: The advanced copper line set connects the MRCOOL Condenser to MRCOOL Air Handlers, enhancing performance for your Multi-Zone system. One line set per indoor unit ensures seamless operation.
Pre-Charged Convenience: Designed for simplicity, these line sets are pre-filled with R-410A refrigerant, making installation quick and hassle-free.
DIY and Cost Savings: Skip the expensive technician fees with our user-friendly design. Install confidently and save money without compromising quality.
Extended Flexibility: Need additional reach? Our coupler kit allows you to effortlessly connect two standard line sets, ensuring unlimited cooling and heating coverage.

ELECTRICAL REQUIREMENTS

Model	DIY-MULTI5-48HP230C
Type	48K BTU Condenser
BTU	48,000 BTU
Power Supply	208-230V/60 Hz/1ph
Minimum Circuit (Disconnect)	40.0 A
Maximum Fuse (Breaker)	60.0 A

SPECIFICATIONS & DIMENSIONS

Condenser Specifications
Product Dimensions	37.48"W x 16.34"D x 52.48"H
Cooling Capacity	48,000 BTU
Heating Capacity	48,000 BTU
Zone Capacity	5
Operating Temperature in Cool Mode	5F ~ 122F
Min Ambient Heat	5F ~ 75.2F
SEER	20.5
EER	11
Voltage	Requires a minimum of 208V-230V/60HZ/40-60A (please check your home meets this electrical requirement prior to purchase)
Registered Warranty	7 Years Replacement on Compressor, 5 Years Parts
Air Handler 9K BTU
Product Dimensions	31.57"W x 7.44"D x 11.69"H
Mount Type	Wall
Cooling Capacity	9,000 BTU
Heating Capacity	9,000 BTU
Registered Warranty	5 Years Parts
Modes	Auto - auto selects from Cool, Heat or Fan-Only Dry - dehumidify Cool Heat Fan Only Quiet Sleep
Air Handler 36K BTU
Product Dimensions	49.57"W x 11.10"D x 14.25"H
Mount Type	Wall
Cooling Capacity	36,000 BTU
Heating Capacity	36,000 BTU
Registered Warranty	5 Years Parts
Modes	Auto - auto selects from Cool, Heat or Fan-Only Dry - dehumidify Cool Heat Fan Only Quiet Sleep
Line Set
Length	50 Feet
Liquid Line Size	3/8"
Suction Line Size	5/8"
Line Set
Length	50 Feet
Liquid Line Size	1/4"
Suction Line Size	1/2"

INSTALLATION & GUIDES

Installation Manual
Product Brochure
Performance Specifications
Warranty
Energy Guide
AHRI Certificate
