MRCOOL DIY Mini Split - 30,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 50 ft. Install Kit, DIYM227HPW03C22

MRCOOL DIY 30,000 BTU 2-Zone Mini Split System with Extended-Length Line Sets (DIYM227HPW03C22)

The MRCOOL 4th Generation DIY Multi-Zone Mini Split system with extended 50-foot line sets represents an enhanced version of MRCOOL's revolutionary self-installation climate technology. This comprehensive 30,000 BTU dual-zone package delivers independent climate control for two separate areas with maximum installation flexibility, allowing for greater distances between indoor and outdoor units without sacrificing the true DIY installation capability that has made MRCOOL systems trusted by thousands of homeowners.

This innovative system transforms complex professional-only HVAC installation into an achievable DIY project even with challenging installation distances through several patented technologies:

• 50-Foot Pre-Charged Quick Connect Line Sets: Maximizes installation flexibility with factory-sealed, pre-charged connections that span greater distances between units
• Tool-Free Extended-Distance Refrigerant Connections: Patent-pending connection system maintains simple hand-tightening reliability even at maximum recommended distances
• Distance-Optimized Performance: Engineered specifically to maintain full capacity and efficiency even with maximum-length line sets
• Extended-Reach Electrical Components: Pre-wired components with sufficient cable lengths to accommodate the maximum installation distance
• Comprehensive Long-Distance Installation Kit: Includes all specialized components needed for complete system installation at extended distances

The system's breakthrough approach enables homeowners with basic DIY skills to successfully install a professional-grade multi-zone heating and cooling solution even when significant distances separate indoor and outdoor units—addressing complex architectural challenges without professional installation.

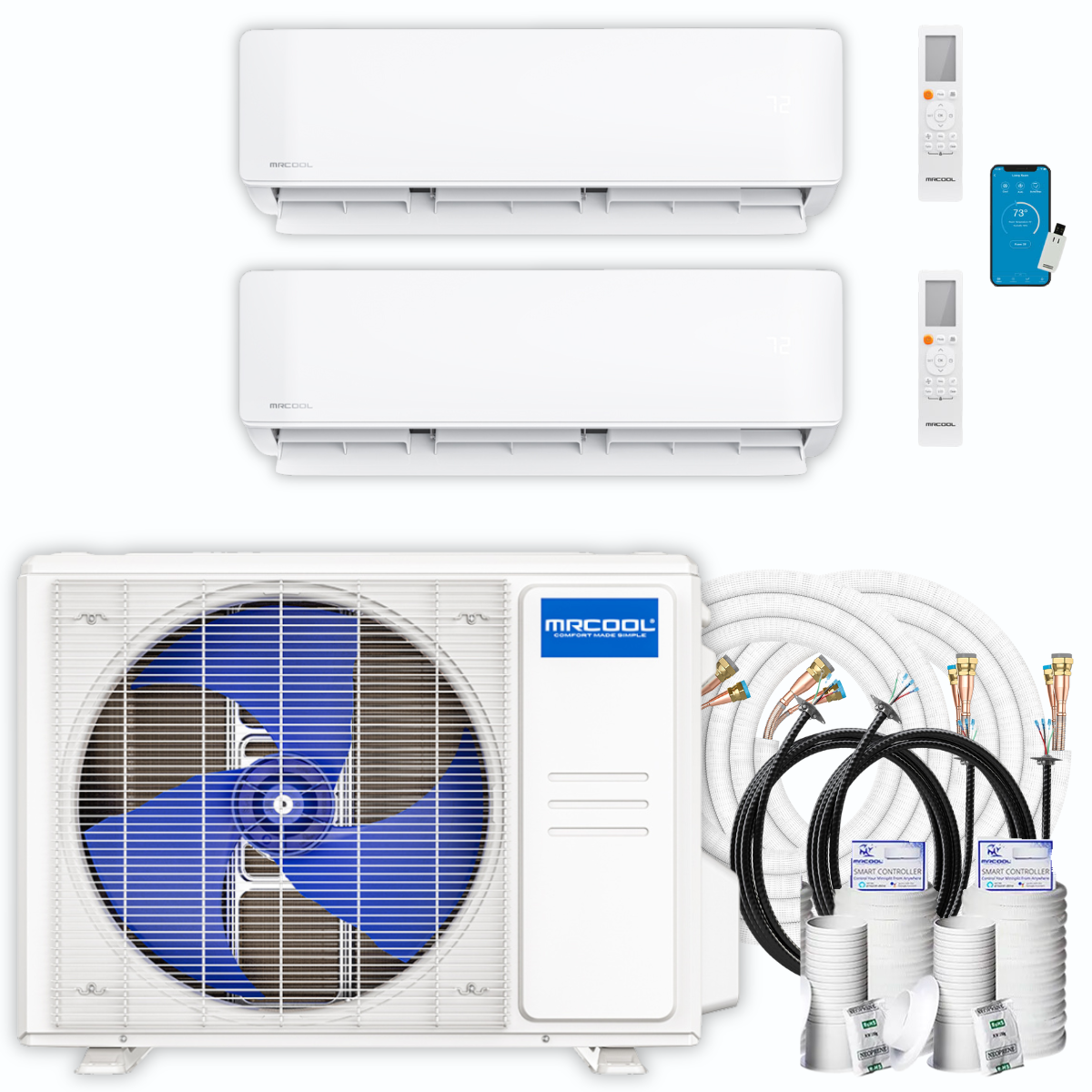

This dual-zone system provides independent temperature control for two separate areas with enhanced installation options:

• 27,000 BTU Multi-Zone Outdoor Compressor Unit: High-efficiency variable-speed inverter compressor with Gold Fin® corrosion protection
• 12,000 BTU Primary Zone Air Handler: Ideal for medium spaces (376-500 sq. ft.)
• 18,000 BTU Secondary Zone Air Handler: Designed for larger areas (501-750 sq. ft.)
• Two 50-Foot Pre-Charged Refrigerant Line Sets: Extended-length, pre-charged, leak-tested connections for maximum installation flexibility
• Complete Extended-Reach Mounting Kit: Includes concrete pad, wall brackets, and vibration isolation components
• Full Long-Distance Communication System: Integrated smart control components with extended-range capability

The 50-foot line sets represent a significant 43% increase in maximum installation distance compared to standard 35-foot kits, enabling installation in challenging architectural scenarios like multi-floor applications, detached structures, or complex routing requirements.

This system delivers professional-grade performance metrics even with maximum-length line set installations:

• Distance-Optimized Efficiency: Maintains 22 SEER2 and 8.2 HSPF-5 ratings even with extended line set lengths
• Cold-Climate Performance Preservation: Provides reliable heating in temperatures as low as -13°F regardless of installation distance
• Variable-Speed Compensation Technology: Automatically adjusts operation to overcome the minor effects of extended refrigerant paths
• Intelligent Flow Management: Advanced algorithms ensure proper refrigerant distribution across both zones even at maximum distances
• Wide Operating Range: Delivers rated capacity across an extended temperature spectrum regardless of line set length

These distance-optimized performance capabilities allow the system to serve as a primary heating and cooling solution even in challenging installations where standard-length systems would be inadequate, without sacrificing the energy efficiency that translates to significant operational cost savings.

This advanced system incorporates comprehensive control technologies that function flawlessly regardless of installation distance:

• Long-Range SmartHVAC Mobile Application: Provides complete system control from anywhere via Wi-Fi connectivity
• Extended Communication Protocols: Maintains reliable connection between all system components regardless of distance
• Independent Zone Scheduling: Allows separate programming for each zone to optimize comfort and efficiency
• Signal Integrity Protection: Enhanced communication design prevents data degradation over longer connection distances
• Energy Consumption Monitoring: Real-time and historical usage data helps optimize efficiency even with extended installations
• Distance-Compensating Algorithms: Adjusts system operation to maintain optimal performance regardless of line set length

The intelligent control system ensures responsive, reliable operation regardless of the distance between components, maintaining the same intuitive user experience as standard-length installations.

Each air handler is engineered for optimal performance even with maximum-length refrigerant lines:

12K BTU Primary Zone Air Handler:

• Distance-Optimized Operation: Specially designed to maintain full capacity even with 50-foot line sets
• Enhanced Refrigerant Management: Advanced expansion device compensates for extended refrigerant travel
• Quiet Operation: Ultra-low 24dB operation in sleep mode regardless of installation distance
• Five Operating Modes: COOL, HEAT, AUTO, DRY, and SLEEP modes function perfectly regardless of line set length
• Temperature Stability: Maintains precise temperature control even with extended refrigerant paths

18K BTU Secondary Zone Air Handler:

• Extended-Distance Performance: Maintains full 18K BTU capacity even at maximum 50-foot distance
• Compensating Technology: Automatically adjusts for the effects of extended refrigerant paths
• Turbo Function Preservation: Quick temperature adjustment capability maintained regardless of installation distance
• Installation Flexibility: Enables placement in distant zones like converted attics, additions, or basement areas
• Consistent User Experience: Maintains identical performance characteristics regardless of line set length

This thoughtful engineering ensures that extended installation distances don't compromise performance or comfort in either zone, preserving the full capability of the dual-zone system.

The system incorporates specific engineering elements designed to ensure reliability with maximum-length installations:

• Gold Fin® Condenser Coating: Special corrosion-resistant coating provides additional protection for systems often installed in more exposed locations
• Extended-Distance Compressor Protection: Enhanced safeguards account for longer refrigerant paths
• Long-Line Diagnostics: Specialized monitoring identifies potential issues specific to extended installations
• Distance-Compensating Pressure Protection: Automatic safety systems calibrated for maximum-length operation

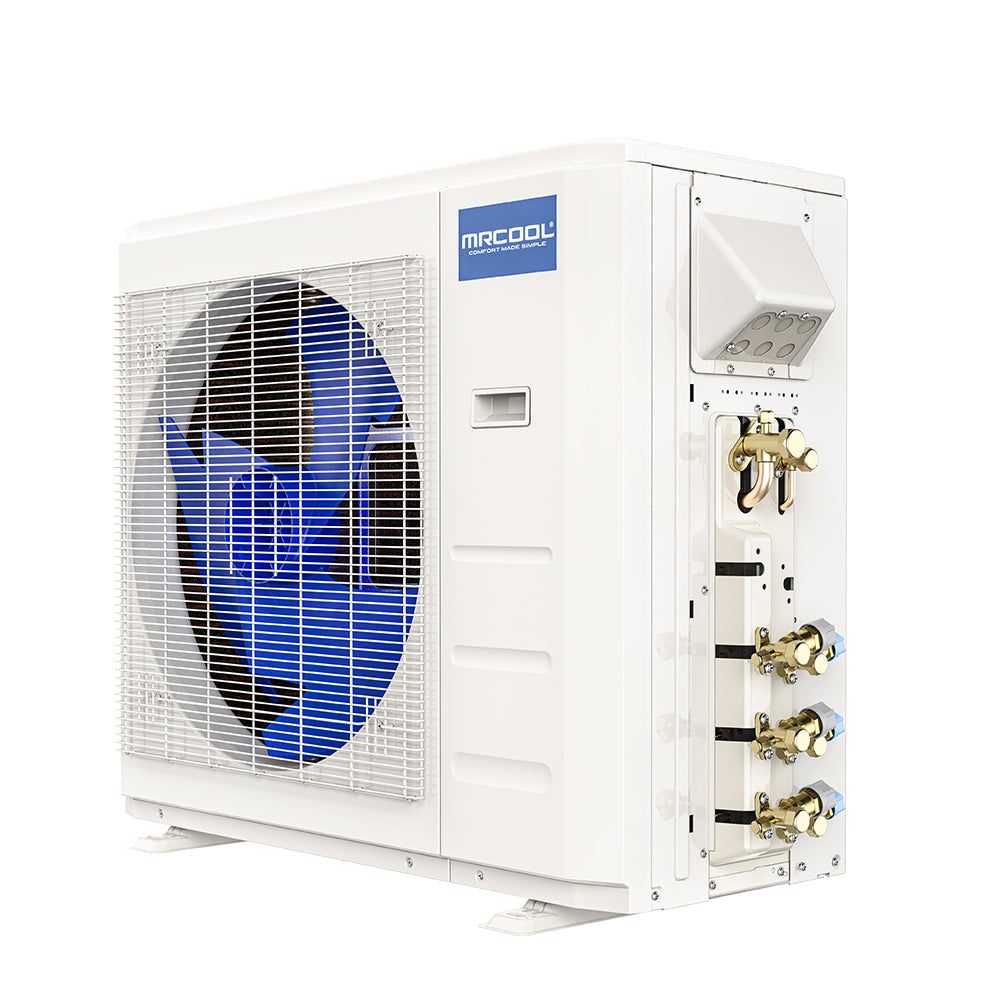

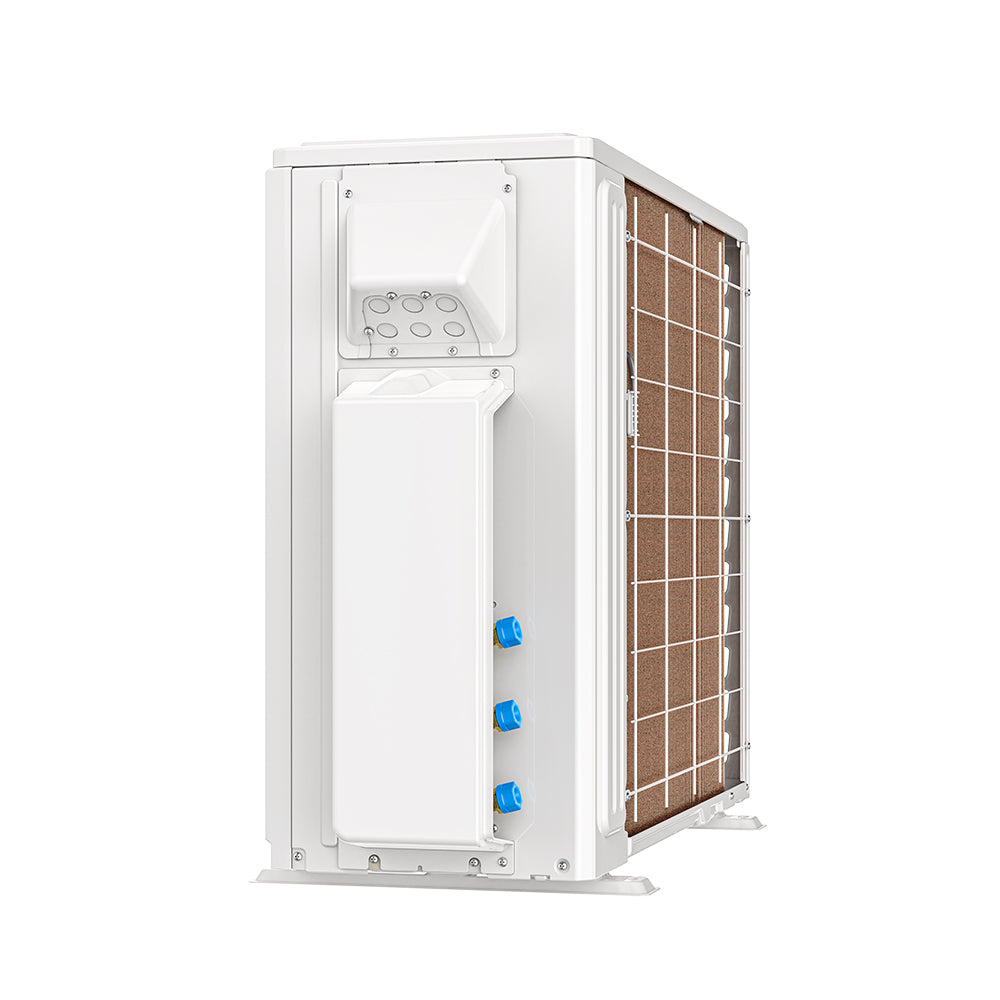

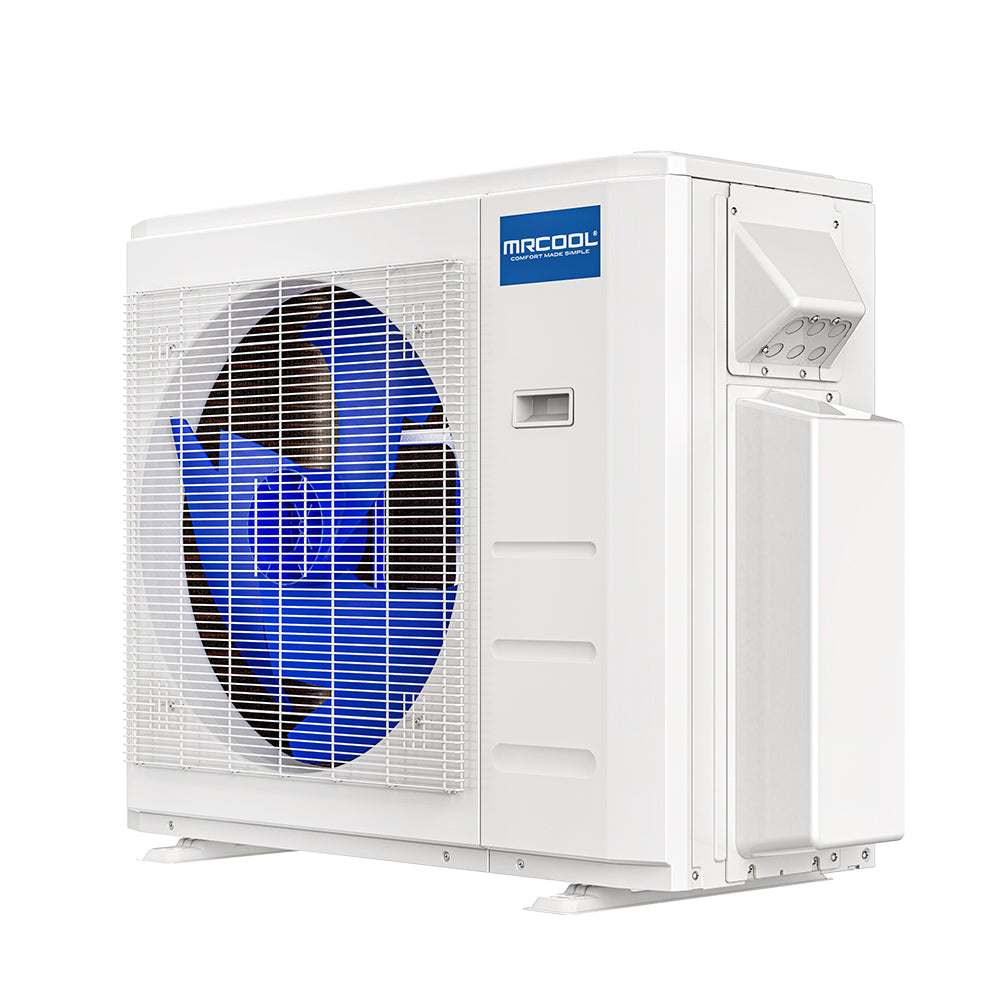

Condenser (27K BTU)

• Innovative Installation: Get ready for an unparalleled installation experience with MRCOOL’s patented Pre-Charged Quick Connect Line Sets, empowering you to install without needing a technician!
• Durability Redefined: Protect against corrosion with the robust Gold Fin® condenser coating, specially designed for coastal areas.
• Impressive Efficiency: Achieve incredible energy savings with a 22 SEER2 and 8.2 HSPF-5 rating.
• Year-Round Performance: Enjoy reliable heating even in extreme cold, down to -13°F.
• Peace of Mind: Benefit from a 7-year compressor warranty and a 5-year parts warranty.

Air Handler (12K BTU)

• Versatile Climate Control: Enjoy personalized comfort with COOL, HEAT, AUTO, DRY, or SLEEP modes to suit any season or preference.
• Perfect Room Coverage: Tailored for areas ranging from 376 to 500 square feet, ideal for medium-sized spaces.
• Smart Control Anywhere: Take advantage of SmartHVAC app compatibility, giving you complete control remotely.
• Effortless Installation: A compact and lightweight design allows for hassle-free mounting and setup.
• Quick Connect System: Thanks to the MRCOOL Pre-Charged Quick Connect Line Set, installation is incredibly simple—no professional vacuuming needed!

Air Handler (18K BTU)

• Versatile Climate Control: Easily adjust to COOL, HEAT, AUTO, DRY, or SLEEP modes for year-round comfort.
• Perfect Room Coverage: Designed to suit spaces between 501 to 750 square feet, perfect for larger rooms and open areas.
• Smart Control Anywhere: The SmartHVAC app compatibility lets you manage your system conveniently from anywhere.
• Effortless Installation: The compact and lightweight design simplifies the mounting process significantly.
• Quick Connect System: Simplify your setup with MRCOOL’s Pre-Charged Quick Connect Line Set—no extra tools required!

Line Set

• Optimized System Performance: The advanced copper line set connects the MRCOOL Condenser to MRCOOL Air Handlers, enhancing performance for your Multi-Zone system. One line set per indoor unit ensures seamless operation.
• Pre-Charged Convenience: Designed for simplicity, these line sets are pre-filled with R-410A refrigerant, making installation quick and hassle-free.
• DIY and Cost Savings: Skip the expensive technician fees with our user-friendly design. Install confidently and save money without compromising quality.
• Extended Flexibility: Need additional reach? Our coupler kit allows you to effortlessly connect two standard line sets, ensuring unlimited cooling and heating coverage.
