MRCOOL 5th Gen DIY Mini Split - 45,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump with 25 ft. Install Kits, DIY-B-348HP091818-25
SKU DIY-B-348HP091818-25
In stock, ready to ship
FREE EXPRESS SHIPPING: Process orders in 1 business day
STRESS FREE RETURNS: 2 Year Returns
PREMIUM QUALITY: Top Tier Products, Even Better Customer Care
5 YEAR WARRANTY: We Believe In Our Products & Our Team
$7,564.20
- Description
- System Overview:
- Mini Split System Components:
- Key Features:
- Why Choose MRCOOL DIY Mini Split?
- Shipping and Return
- COVERAGE AREA
Description
MRCOOL DIY Mini Split - 45,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump with 25 ft. Install Kits, DIY-B-348HP091818-25
The MRCOOL 4th Generation DIY Mini Split System offers a complete, flexible heating and cooling solution for your home, office, or other spaces — all designed for easy self-installation without the need for expensive HVAC technicians or specialized equipment.
System Overview:

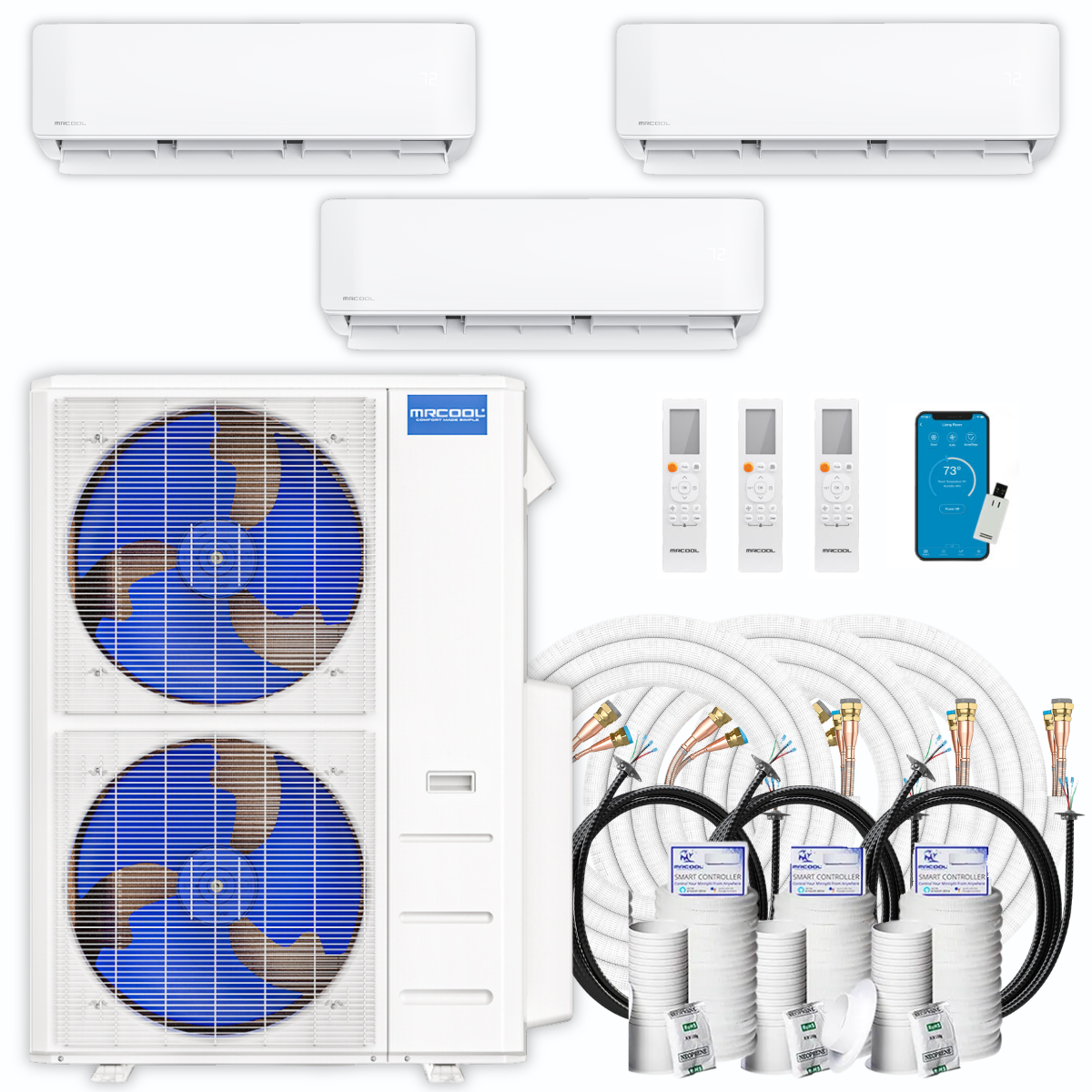

This kit includes a 48K BTU Multi-Zone Condenser paired with three air handlers: one 9K BTU wall-mounted unit and two 18K BTU wall-mounted units, plus three 25 ft. pre-charged installation kits.
Mini Split System Components:
- 48K BTU Multi-Zone Condenser (DIY-MULTI5-48HP230C, 4th Gen Series)
- 9K BTU Wall Mount Air Handler with Enhanced WiFi (DIY-09-HP-WMAH-230C25)
- Two 18K BTU Wall Mount Air Handlers with Enhanced WiFi (DIY-18-HP-WMAH-230C25 x2)
- Three 25 ft. Pre-Charged Line Sets (DIY25-1412 x 3)
Key Features:
Condenser (48K BTU)
- Energy Efficient: Up to 20.5 SEER2, qualifying for energy and tax rebates
- Extreme Temperature Operation: Heats efficiently even at temperatures as low as -5°F
- Warranty: 7-year compressor and 5-year parts warranty included; lifetime compressor warranty available with MRCOOL Care Program registration
Air Handlers (9K and 18K BTU)
-
Coverage Area:
- 9K BTU covers 180–375 sq. ft.
- 18K BTU covers 375–750 sq. ft.
- Versatile Operation Modes: COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP
- Smart Control: Compatible with Apple and Android smartphones via the Smart HVAC app
- Easy Installation: Lightweight, compact design with included mounting plate for simple wall installation
Installation Kits (Pre-Charged Line Sets)
- Pre-Charged with R-410A Refrigerant: Ready for quick installation without the need for vacuuming or refrigerant charging
- DIY Friendly: Enables self-installation, saving money on professional HVAC labor
Why Choose MRCOOL DIY Mini Split?
- Complete 3-Zone System: One condenser with three air handlers for flexible multi-zone climate control
- Self-Installation: Designed for easy DIY installation without specialized tools or technician fees
- High Efficiency & Performance: Energy-saving SEER2 rating and reliable heating in cold climates
- Smart Home Ready: Control your system remotely with enhanced WiFi and mobile app integration
- Comprehensive Warranty: Peace of mind with extended warranties and optional lifetime compressor coverage
The MRCOOL DIY Mini Split 45,000 BTU 3 Zone System is perfect for anyone looking to upgrade their HVAC system with a high-performance, energy-efficient, and easy-to-install ductless solution. Whether for a home or office, enjoy customizable comfort and control without the hassle or cost of professional installation.
PRODUCT SPECIFICATIONS:
Condenser
| Product Dimensions |
37.48"W x 16.34"D x 52.48"H |
| Cooling Capacity | 48,000 BTU |
| Heating Capacity | 48,000 BTU |
| Zone Capacity | 5 |
| Cool Mode - Outdoor Operating Temperature Range | 5°F ~ 122°F |
| Heat Mode - Outdoor Operating Temperature Range | 5°F ~ 75.2°F |
| SEER2 | 20.50 |
| EER2 | 11 |
| HSPF2 | 9.2 |
| Voltage | Requires a minimum of 208V-230V/60HZ/18-25A (please check your home meets this electrical requirement prior to purchase) |
| Registered Warranty | 7 Years Replacement on Compressor, 5 Years Parts |
Air Handler 9K BTU
| Product Dimensions | 31.57"W x 7.44"D x 11.69"H |
| Mount Type | Wall |
| Cooling Capacity | 9,000 BTU |
| Heating Capacity | 9,000 BTU |
| Registered Warranty | 5 Years Parts |
| Modes | Auto (Auto selects Cool, Heat or Fan-Only) Cool Heat Dry Fan Only Sleep |
Air Handler 18K BTU
| Product Dimensions | 34.61"W x 8.90"D x 13.19"H |
| Mount Type | Wall |
| Cooling Capacity | 18,000 BTU |
| Heating Capacity | 18,000 BTU |
| Registered Warranty | 5 Years Parts |
| Modes | Auto (Auto selects Cool, Heat or Fan-Only) Cool Heat Dry Fan Only Sleep |
Line Set
| Length | 25 Feet |
| Liquid Line Size | 1/4" |
| Suction Line Size | 1/2" |
Product Brochure
Performance Specifications
Warranty
Energy Guide
AHRI Certificate
Shipping and Return
For Shipping & return information visit here
COVERAGE AREA
