Description
MRCOOL DIY Mini Split - 45,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump with 16 ft. Install Kits, DIY-B-348HP091818-16
The MRCOOL 4th Generation DIY Mini Split offers a complete, energy-efficient heating and cooling system that you can install yourself without the need for costly HVAC professionals or specialized tools. This 3-zone system is designed for flexibility, making it ideal for homes, offices, or other spaces requiring zoned climate control.
System Includes:
- 48K BTU Multi-Zone Condenser (DIY-MULTI5-48HP230C, 4th Gen Series)
- 9K BTU Wall Mount Air Handler with Enhanced WiFi (DIY-09-HP-WMAH-230C25)
- Two 18K BTU Wall Mount Air Handlers with Enhanced WiFi (DIY-18-HP-WMAH-230C25 x2)
- Three 16 ft. Pre-Charged Line Sets (DIY16-1412 x 3)
Key Features:
Condenser (48K BTU)
- Energy Efficient: Up to 20.5 SEER2 rating, eligible for energy and tax rebates
- Extreme Temperature Operation: Heats effectively even at temperatures as low as -5°F
- Warranty: 7-year compressor and 5-year parts warranty included; lifetime compressor warranty available with MRCOOL Care Program registration
Air Handlers (9K and 18K BTU)
-
Coverage Area:
- 9K BTU covers 180–375 sq. ft.
- 18K BTU covers 375–750 sq. ft.
- Multiple Operating Modes: COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP
- Smart Control: Compatible with Apple and Android smartphones via the Smart HVAC app
- Easy Installation: Lightweight and compact with included mounting plates for simple wall installation
Line Sets
- Pre-Charged with R-410A Refrigerant: Ready for quick installation without vacuuming or refrigerant charging
- DIY Friendly: Designed for self-installation to save on professional labor costs
Why Choose This MRCOOL DIY Mini Split?
- Complete 3-Zone System: One condenser with three air handlers for customizable multi-zone climate control
- Self-Installation: No need for expensive HVAC technicians or specialized equipment
- High Efficiency & Performance: Energy-saving SEER2 rating and reliable heating in cold climates
- Smart Home Integration: Control your system remotely with enhanced WiFi and mobile app support
- Strong Warranty: Peace of mind with extended warranties and optional lifetime compressor coverage
This MRCOOL DIY Mini Split 45,000 BTU 3 Zone System with 16 ft. install kits is perfect for those who want a powerful, energy-efficient, and easy-to-install ductless HVAC system for versatile climate control in multiple zones.
For more details, you can view the product on the official site or trusted retailers.
PRODUCT SPECIFICATIONS:
Condenser
| Product Dimensions |
37.48"W x 16.34"D x 52.48"H |

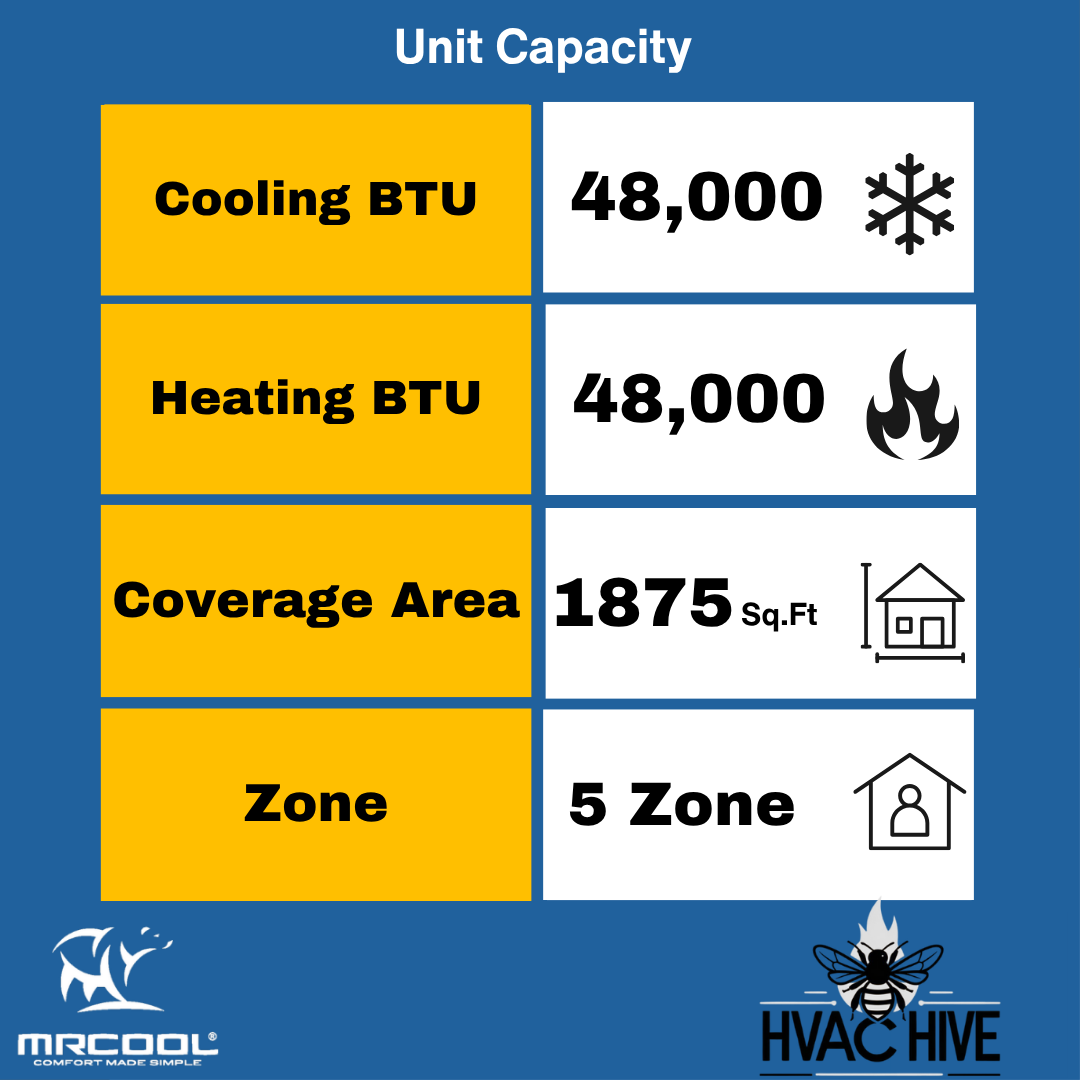

| Cooling Capacity | 48,000 BTU |
| Heating Capacity | 48,000 BTU |
| Zone Capacity | 5 |
| Cool Mode - Outdoor Operating Temperature Range | 5°F ~ 122°F |
| Heat Mode - Outdoor Operating Temperature Range | 5°F ~ 75.2°F |
| SEER2 | 20.50 |
| EER2 | 11 |
| HSPF2 | 9.2 |
| Voltage | Requires a minimum of 208V-230V/60HZ/18-25A (please check your home meets this electrical requirement prior to purchase) |
| Registered Warranty | 7 Years Replacement on Compressor, 5 Years Parts |
Air Handler 9K BTU
| Product Dimensions | 31.57"W x 7.44"D x 11.69"H |
| Mount Type | Wall |
| Cooling Capacity | 9,000 BTU |
| Heating Capacity | 9,000 BTU |
| Registered Warranty | 5 Years Parts |
| Modes | Auto (Auto selects Cool, Heat or Fan-Only) Cool Heat Dry Fan Only Sleep |
Air Handler 18K BTU
| Product Dimensions | 34.61"W x 8.90"D x 13.19"H |
| Mount Type | Wall |
| Cooling Capacity | 18,000 BTU |
| Heating Capacity | 18,000 BTU |
| Registered Warranty | 5 Years Parts |
| Modes | Auto (Auto selects Cool, Heat or Fan-Only) Cool Heat Dry Fan Only Sleep |
Line Set
| Length | 16 Feet |
| Liquid Line Size | 1/4" |
| Suction Line Size | 1/2" |
Product Brochure
Performance Specifications
Warranty
Energy Guide
AHRI Certificate
ELECTRICAL REQUIREMENTS
| Model | DIY-MULTI5-48HP230C |
|---|---|
| Type | 48K BTU Condenser |
| BTU | 48,000 BTU |
| Power Supply | 208-230V/60 Hz/1ph |
| Minimum Circuit (Disconnect) | 40.0 A |
| Maximum Fuse (Breaker) | 60.0 A |
