MRCOOL 5th Gen DIY Mini Split - 45,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump, DIY-B-348HP091818
SKU DIY-B-348HP091818
In stock, ready to ship
FREE EXPRESS SHIPPING: Process orders in 1 business day
STRESS FREE RETURNS: 2 Year Returns
PREMIUM QUALITY: Top Tier Products, Even Better Customer Care
5 YEAR WARRANTY: We Believe In Our Products & Our Team
$6,585.60
- Description
- Condenser (48K BTU)
- Air Handler (9K BTU)
- Air Handlers (18K BTU) x 2
- Summary
- Shipping and Return
- COVERAGE AREA
Description

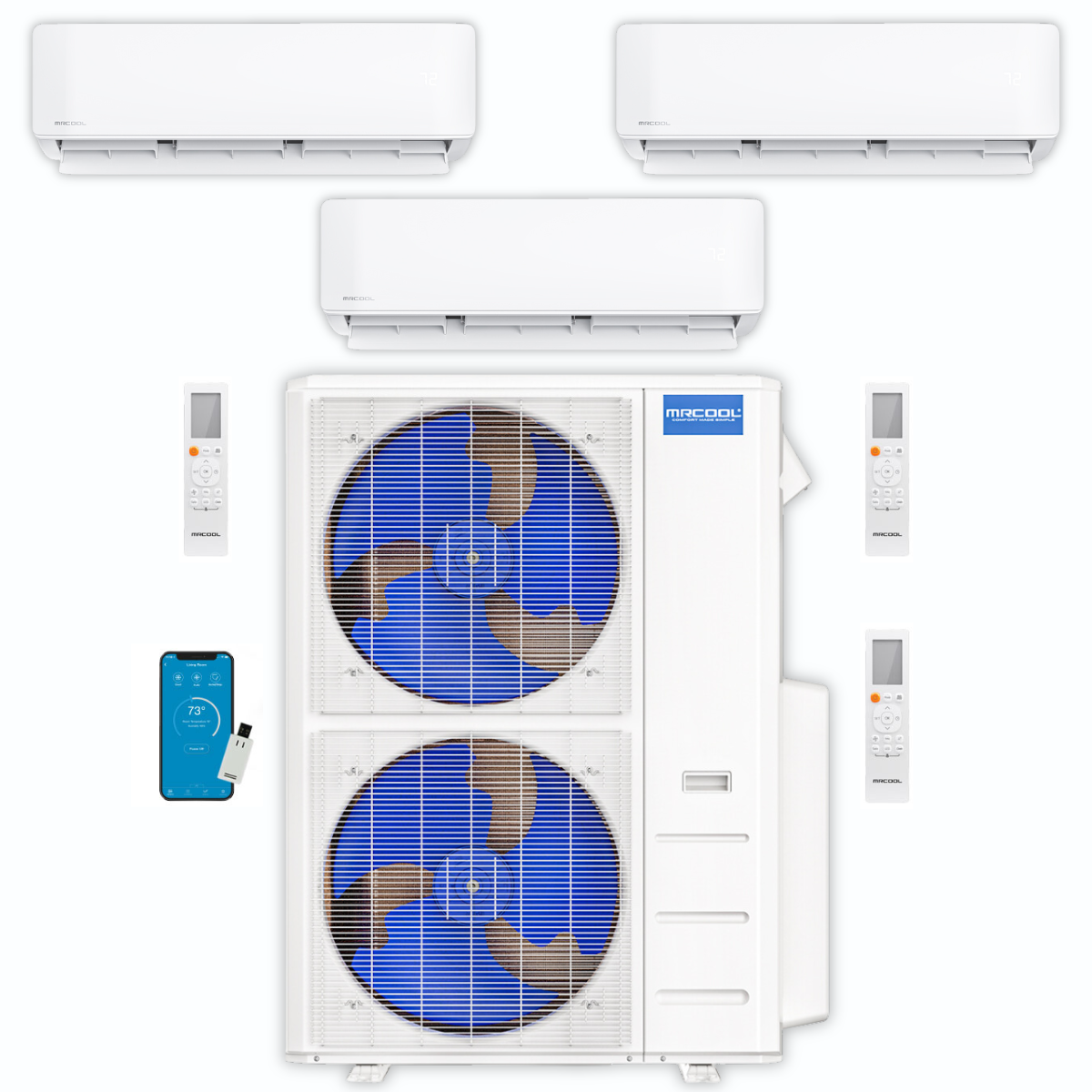

MRCOOL DIY Mini Split - 45,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump, DIY-B-348HP091818
The MRCOOL 4th Generation DIY Mini Split provides advanced, energy-efficient climate control for multiple zones in your home, garage, workshop, or other spaces—all designed for easy self-installation without professional help.
Condenser (48K BTU)
- Easy Installation: Features MRCOOL’s patented Pre-Charged Quick Connect Line Sets, allowing for simple, tool-free installation without vacuuming or specialized equipment
- Durability: Protected by Gold Fin® coating to resist corrosion and extend lifespan
- High Efficiency: 20.5 SEER2 and 8.5 HSPF-5 rating for excellent energy savings
- Cold Climate Performance: Reliable heating operation down to outdoor temperatures of 5°F
- Warranty: 7-year compressor warranty and 5-year parts warranty for peace of mind
Air Handler (9K BTU)
- Flexible Modes: COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP for year-round comfort
- Coverage Area: Ideal for rooms between 180 to 375 sq. ft., perfect for smaller spaces or cozy corners
- Smart Control: Compatible with the SmartHVAC app for remote control from anywhere
- Compact & Lightweight: Easy to mount on most interior walls with minimal effort
- Quick Connect: Uses the Pre-Charged Quick Connect Line Set for fast, hassle-free installation
Air Handlers (18K BTU) x 2
- Versatile Operation: Supports COOL, HEAT, AUTO, DRY, and SLEEP modes
- Coverage Area: Designed for larger rooms or open areas between 501 to 750 sq. ft.
- Smart Control: Full compatibility with the SmartHVAC app for remote management
- Effortless Installation: Lightweight and compact for quick mounting
- Quick Connect: Pre-Charged Quick Connect Line Sets simplify setup without extra tools
Summary
This MRCOOL DIY Mini Split 45,000 BTU 3 Zone system offers a powerful, flexible, and energy-efficient HVAC solution that you can install yourself. Its innovative quick connect technology, smart app control, and multi-zone design make it perfect for tailored comfort in various spaces without the need for professional installation.
For more information, you can explore product listings and detailed specs from MRCOOL sources.
ELECTRICAL REQUIREMENTS
| Model | DIY-MULTI5-48HP230C |
|---|---|
| Type | 48K BTU Condenser |
| BTU | 48,000 BTU |
| Power Supply | 208-230V/60 Hz/1ph |
| Minimum Circuit (Disconnect) | 40.0 A |
| Maximum Fuse (Breaker) | 60.0 A |

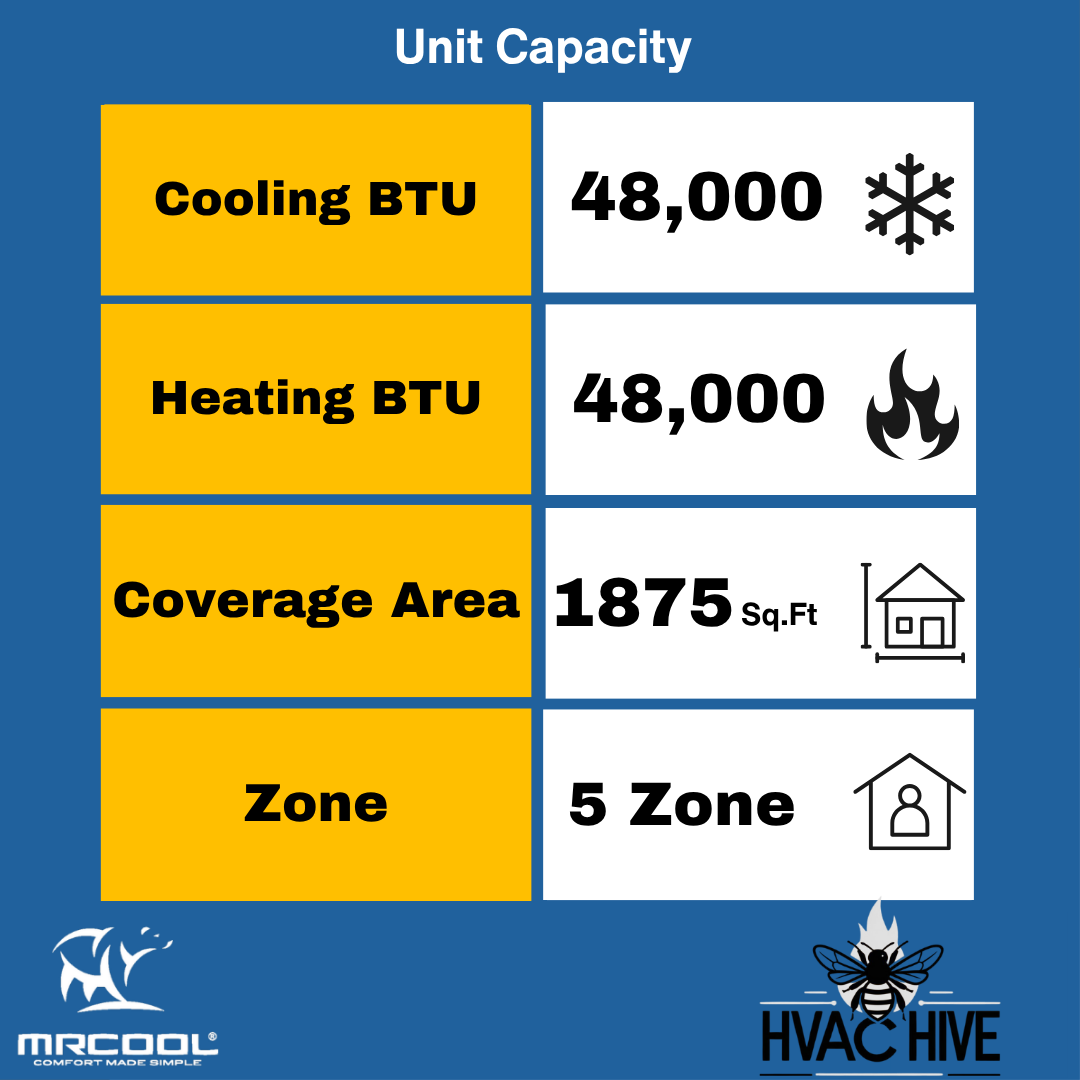

SPECIFICATIONS & DIMENSIONS
| Condenser | |
|---|---|
| Product Dimensions | 37.48"W x 16.34"D x 52.48"H |
| Cooling Capacity | 48,000 BTU |
| Heating Capacity | 48,000 BTU |
| Zone Capacity | 5 |
| Cool Mode - Outdoor Operating Temperature Range | 5°F ~ 122°F |
| Heat Mode - Outdoor Operating Temperature Range | 5°F ~ 75.2°F |
| SEER2 | 20.50 |
| EER2 | 11 |
| HSPF2 | 9.2 |
| Voltage | Requires a minimum of 208V-230V/60HZ/18-25A (please check your home meets this electrical requirement prior to purchase) |
| Registered Warranty | 7 Years Replacement on Compressor, 5 Years Parts |
| Air Handler 9K BTU | |
| Product Dimensions | 31.57"W x 7.44"D x 11.69"H |
| Mount Type | Wall |
| Cooling Capacity | 9,000 BTU |
| Heating Capacity | 9,000 BTU |
| Registered Warranty | 5 Years Parts |
| Modes | Auto (Auto selects Cool, Heat or Fan-Only) Cool Heat Dry Fan Only Sleep |
| Air Handler 18K BTU | |
| Product Dimensions | 34.61"W x 8.90"D x 13.19"H |
| Mount Type | Wall |
| Cooling Capacity | 18,000 BTU |
| Heating Capacity | 18,000 BTU |
| Registered Warranty | 5 Years Parts |
| Modes | Auto (Auto selects Cool, Heat or Fan-Only) Cool Heat Dry Fan Only Sleep |
INSTALLATION & GUIDES
Installation Manual
Product Brochure
Performance Specifications
Warranty
Energy Guide
AHRI Certificate
