MRCOOL 5th Gen DIY Mini Split - 42,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump, DIY-B-348HP090924
SKU DIY-B-348HP090924
In stock, ready to ship
FREE EXPRESS SHIPPING: Process orders in 1 business day
STRESS FREE RETURNS: 2 Year Returns
PREMIUM QUALITY: Top Tier Products, Even Better Customer Care
5 YEAR WARRANTY: We Believe In Our Products & Our Team
$6,330.80
- Description
- Why Choose the MRCOOL DIY Mini Split 3 Zone System?
- PRODUCT SPECIFICATIONS:Condenser
- ELECTRICAL REQUIREMENTS
- INSTALLATION & GUIDES
- Shipping and Return
- COVERAGE AREA
Description
MRCOOL DIY Mini Split - 42,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump, DIY-B-348HP090924
Step into the future of climate control with the MRCOOL DIY Mini Split 42,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump — a complete, powerful, and smart multi-zone HVAC solution designed for the savvy DIY installer. This 4th Generation system puts professional-grade heating and cooling power right in your hands, allowing you to customize comfort across three separate zones without the hassle or expense of professional installation.

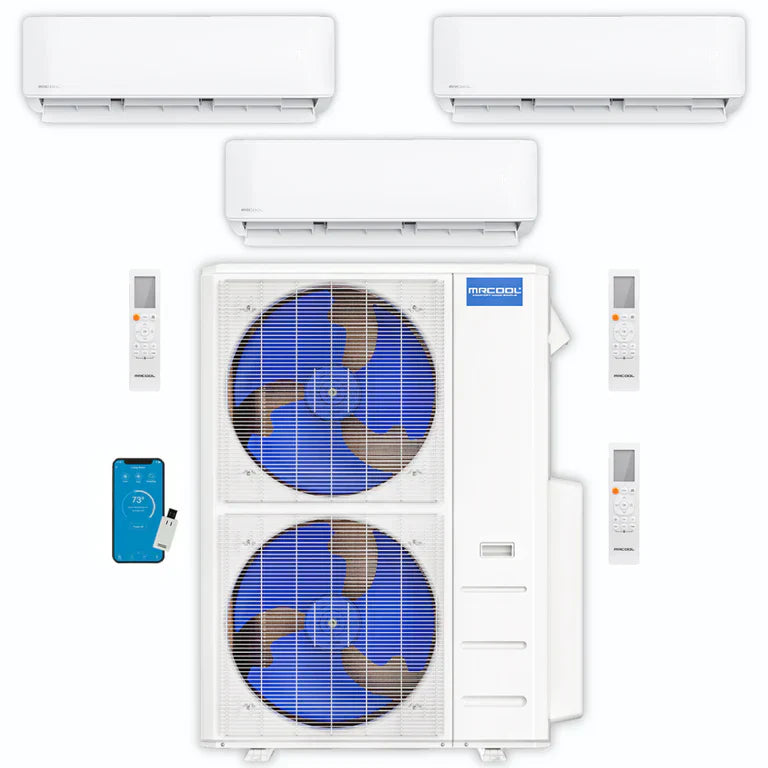

Inside this all-in-one package, you get a robust 48,000 BTU multi-zone condenser paired with three intelligent air handlers: two 9,000 BTU units perfect for bedrooms or smaller spaces, and one 24,000 BTU unit designed to efficiently manage larger rooms up to 1,000 sq. ft. Each air handler is lightweight, compact, and equipped with multiple operating modes — including COOL, HEAT, AUTO, DRY, and SLEEP — so you can tailor the environment to your exact needs.
What truly sets this system apart is its DIY-friendly design without compromising on performance. The condenser delivers an impressive 20.5 SEER efficiency rating, ensuring energy savings that translate into lower utility bills. It’s built to work reliably even when outdoor temperatures fall as low as 5°F, so your comfort never has to take a back seat, no matter the season.
Control is effortless thanks to the enhanced WiFi capabilities integrated into each air handler. Whether you prefer to adjust settings from your smartphone using the Smart HVAC app or through voice commands via Amazon Alexa or Google Assistant, this system adapts to your lifestyle seamlessly.
Plus, the peace of mind that comes with the industry’s only limited lifetime compressor warranty (when registered through the MRCOOL Care Program) means your investment is protected long-term.
Note: This package does not include linesets, so be sure to add those separately to complete your installation.
Why Choose the MRCOOL DIY Mini Split 3 Zone System?
- DIY installation with professional-grade performance
- Multi-zone control for three independent areas
- Energy-efficient 20.5 SEER rating
- Smart WiFi control via app and voice assistants
- Versatile air handlers with multiple modes and coverage areas
- Limited lifetime compressor warranty for peace of mind
Picture having full control over the comfort of multiple rooms from your smartphone — cooling bedrooms, heating living spaces, and dehumidifying basements — all powered by a system you installed yourself. No waiting for contractors, no hidden fees, just smart, efficient comfort tailored to your needs.
Upgrade your space with the MRCOOL DIY Mini Split 3 Zone system — where powerful performance meets DIY freedom.
PRODUCT SPECIFICATIONS:Condenser

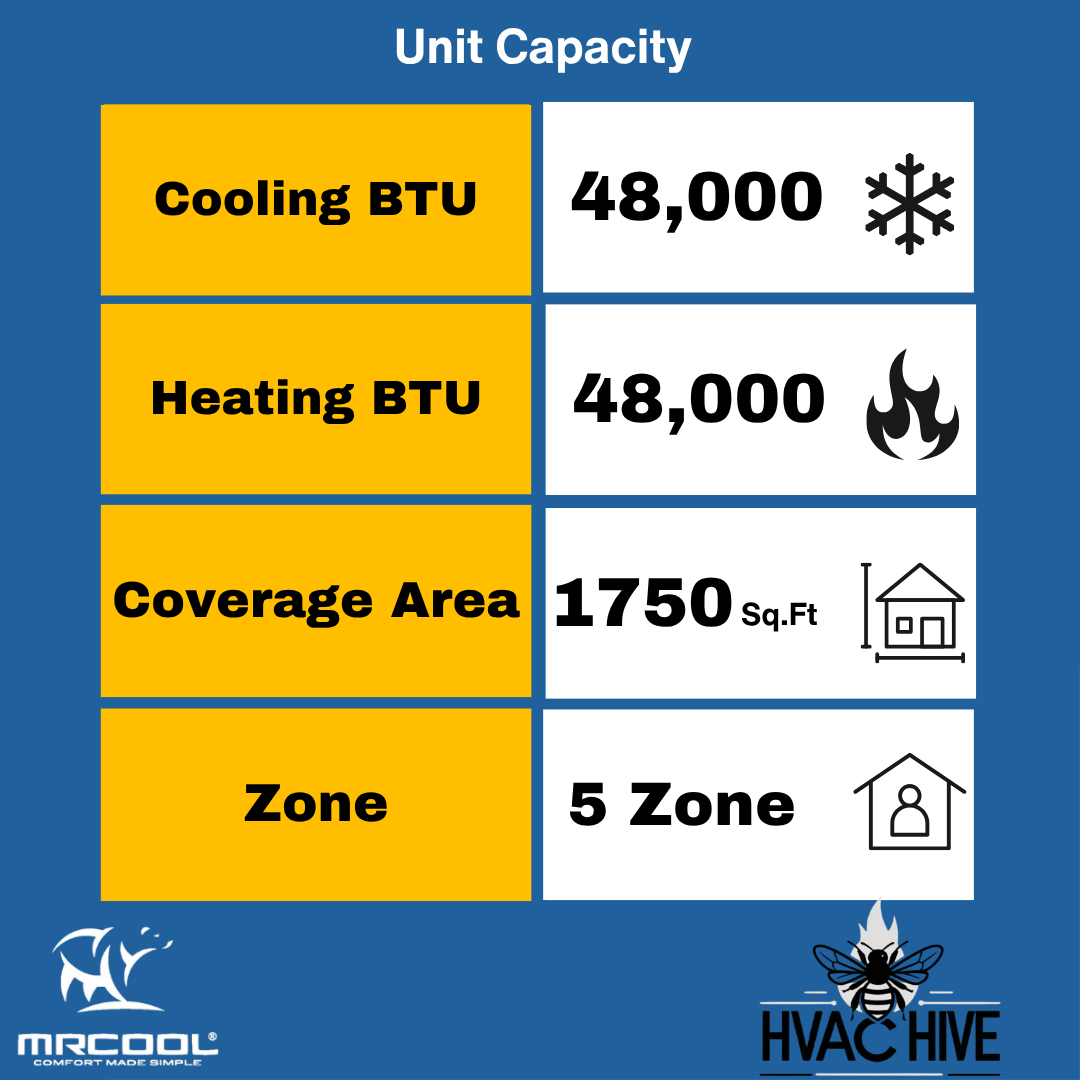

| Product Dimensions | 37.48"W x 16.34"D x 52.48"H |
| Cooling Capacity | 48,000 BTU |
| Heating Capacity | 48,000 BTU |
| Zone Capacity | 5 |
| Cool Mode - Outdoor Operating Temperature Range | 5F ~ 122F |
| Heat Mode - Outdoor Operating Temperature Range | 5F ~ 75.2F |
| SEER | 20.5 |
| EER | 11 |
| Voltage | Requires a minimum of 208V-230V/60HZ/40-60A (please check your home meets this electrical requirement prior to purchase) |
|
Registered Warranty |
7 Years Replacement on Compressor, 5 Years Parts |
Air Handler 9K BTU
| Product Dimensions | 31.57"W x 7.44"D x 11.69"H |
| Mount Type | Wall |
| Cooling Capacity | 9,000 BTU |
| Heating Capacity |
9,000 BTU |
|
Registered Warranty |
5 Years Parts |
| Modes | Auto - auto selects from Cool, Heat or Fan-Only Dry - dehumidify Cool Heat Fan Only Quiet Sleep |
Air Handler 24K BTU
| Product Dimensions | 42.52"W x 8.90"D x 13.19"H |
| Mount Type | Wall |
| Cooling Capacity | 23,000 BTU |
| Heating Capacity |
25,000 BTU |
| Registered Warranty |
5 Years Parts |
| Modes | Auto - auto selects from Cool, Heat or Fan-Only Dry - dehumidify Cool Heat Fan Only Quiet Sleep |
ELECTRICAL REQUIREMENTS
| Model | DIY-MULTI5-48HP230C |
|---|---|
| Type | 48K BTU Condenser |
| BTU | 48,000 BTU |
| Power Supply | 208-230V/60 Hz/1ph |
| Minimum Circuit (Disconnect) | 40.0 A |
| Maximum Fuse (Breaker) | 60.0 A |
INSTALLATION & GUIDES
Shipping and Return
For Shipping & return information visit here
COVERAGE AREA
