MRCOOL 5th Gen DIY Mini Split - 42,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 50 ft. Install Kit, DIYM248HPW00C32
SKU DIYM248HPW00C32
In stock, ready to ship
FREE EXPRESS SHIPPING: Process orders in 1 business day
STRESS FREE RETURNS: 2 Year Returns
PREMIUM QUALITY: Top Tier Products, Even Better Customer Care
5 YEAR WARRANTY: We Believe In Our Products & Our Team
$7,616.00
- Description
- Revolutionize Complex Commercial Projects with Unmatched Power and Extreme Reach
- Command the Specialized Commercial Market with Unrivaled Capabilities
- Transform Your Business Model with Exclusive Market Specialization
- Establish Your Brand as the Exclusive Solution for Impossible Projects
- Shipping and Return
- COVERAGE AREA
Description

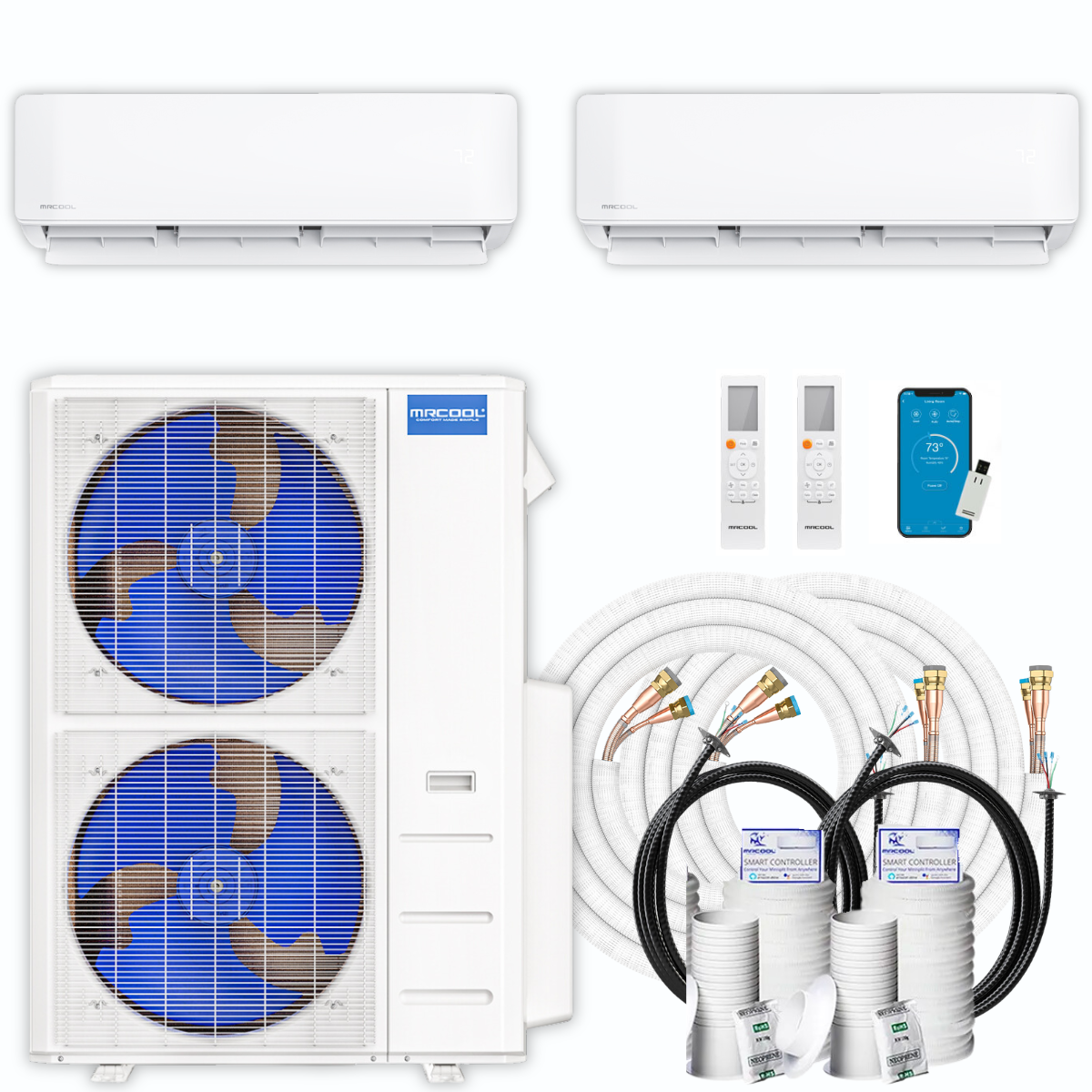

MRCOOL DIY 42,000 BTU 2-Zone Mini Split System with 50 ft. Install Kit
Revolutionize Complex Commercial Projects with Unmatched Power and Extreme Reach
Transform your contracting business with the ultimate solution for challenging commercial properties that demand both exceptional power and extreme installation flexibility. The MRCOOL DIY 42,000 BTU 2-Zone system with industry-leading 50-foot line sets delivers an unbeatable combination that converts even the most complex multi-building and architectural challenges into your highest-margin specialty. While competitors struggle with placement limitations and compromised performance, you'll offer a single integrated system that delivers perfect climate control across previously impossible installations.
This exclusive commercial-grade package combines MRCOOL's powerful 48K BTU commercial condenser with strategically balanced 18K and 24K BTU air handlers—specifically engineered for those ultra-premium projects requiring both substantial capacity and extreme installation reach across up to 1,750 combined square feet. Your installation teams gain an unprecedented market advantage with the extraordinary 50-foot pre-charged line sets that virtually eliminate all positioning constraints in challenging commercial environments, dramatically reducing system complexity while ensuring perfect temperature control despite severe structural limitations, distance requirements, or multi-building layouts.
Command the Specialized Commercial Market with Unrivaled Capabilities
The extraordinary combination of commercial-grade capacity and extreme installation reach positions your business to exclusively serve the most challenging and profitable commercial projects that competitors simply cannot address. With combined coverage exceeding 1,750 square feet and installation flexibility that overcomes even the most severe placement obstacles, you'll confidently bid on premium properties with complex architectural challenges, historic building limitations, or multi-structure requirements.
Your sophisticated commercial clients immediately recognize the substantial value when you demonstrate how this system delivers perfect comfort across their challenging spaces without compromising architectural integrity or requiring extensive modifications. The system's impressive 20.5 SEER2 efficiency rating and reliable 5°F heating threshold provide additional selling points that justify premium pricing while ensuring consistent performance in even the most demanding commercial applications.
Transform Your Business Model with Exclusive Market Specialization
Stop turning away lucrative complex commercial projects or resorting to expensive custom engineering. This revolutionary system with extreme reach and substantial capacity positions your company as the exclusive solution provider for the most challenging—and profitable—commercial applications. The patented pre-charged connection system with unprecedented 50-foot reach means your teams can complete installations that others cannot even attempt—creating a unique market position with virtually no direct competition.
The streamlined installation process eliminates the technical barriers typically associated with challenging commercial systems. This allows you to complete premium installations with significantly lower engineering costs than traditional approaches—dramatically improving your profit margins while establishing your business as the specialized solution provider for the most complex commercial applications in your market.
Establish Your Brand as the Exclusive Solution for Impossible Projects
The Gold Fin® corrosion-resistant coating ensures lasting performance even in demanding industrial environments, while the comprehensive 7-year compressor and 5-year parts warranty provides valuable assurance for discerning commercial clients investing in substantial property improvements. Smart business integration through the intuitive SmartHVAC app delivers the sophisticated monitoring capabilities that professional property managers expect.
Position your contracting business as the exclusive provider of specialized climate solutions for the most challenging commercial projects in your market. This ultimate-capacity extreme-reach system delivers installation capabilities that immediately elevate your company beyond all competitors, eliminates complexity in seemingly impossible applications, and provides the exceptional performance that allows you to confidently take on showcase properties others must decline—establishing your business as the premier specialized solution provider commanding premium rates for your unique expertise in the most complex commercial market segment.
Condenser (48K BTU)
- Streamlined Installation: Take control with MRCOOL’s patented Pre-Charged Quick Connect Line Sets, making installation a breeze without the need for professional assistance.
- Resilient Protection: Stay safeguarded against wear with the Gold Fin® condenser coating.
- Unmatched Efficiency: Enjoy remarkable energy savings with a 20.5 SEER2 and 8.5 HSPF-5 rating.
- Winter-Ready: Generate warmth reliably, even when outdoor temperatures reach as low as 5°F.
- Comprehensive Warranty: Benefit from a 7-year compressor warranty and a 5-year parts warranty.
Air Handler (18K BTU)
- Versatile Climate Control: Easily adjust to COOL, HEAT, AUTO, DRY, or SLEEP modes for year-round comfort.
- Perfect Room Coverage: Designed to suit spaces between 501 to 750 square feet, perfect for larger rooms and open areas.
- Smart Control Anywhere: The SmartHVAC app compatibility lets you manage your system conveniently from anywhere.
- Effortless Installation: The compact and lightweight design simplifies the mounting process significantly.
- Quick Connect System: Simplify your setup with MRCOOL’s Pre-Charged Quick Connect Line Set—no extra tools required!
Air Handler (24K BTU)
- Versatile Climate Control: Switch easily between COOL, HEAT, AUTO, DRY, or SLEEP modes for comfort that meets all seasons and conditions.
- Perfect Room Coverage: Ideal for spaces ranging from 751 to 1,000 square feet, making it a reliable choice for expansive rooms.
- Smart Control Anywhere: Manage your system effortlessly using the SmartHVAC app compatibility.
- Effortless Installation: Lightweight and compact, this design allows a streamlined installation process.
- Quick Connect System: With the MRCOOL Pre-Charged Quick Connect Line Set, install with ease—no technical expertise required!

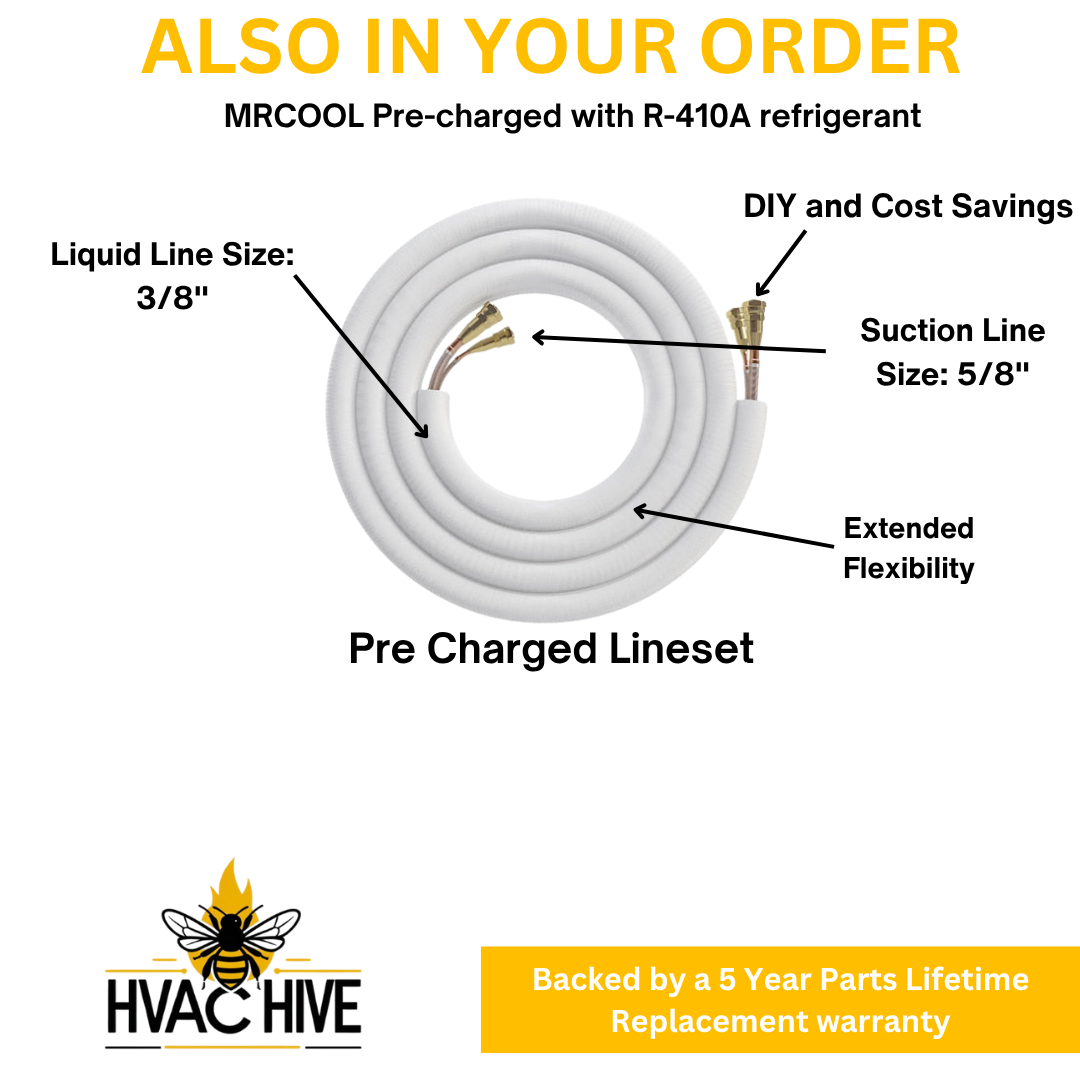

Line Set
- Optimized System Performance: The advanced copper line set connects the MRCOOL Condenser to MRCOOL Air Handlers, enhancing performance for your Multi-Zone system. One line set per indoor unit ensures seamless operation.
- Pre-Charged Convenience: Designed for simplicity, these line sets are pre-filled with R-410A refrigerant, making installation quick and hassle-free.
- DIY and Cost Savings: Skip the expensive technician fees with our user-friendly design. Install confidently and save money without compromising quality.
- Extended Flexibility: Need additional reach? Our coupler kit allows you to effortlessly connect two standard line sets, ensuring unlimited cooling and heating coverage.

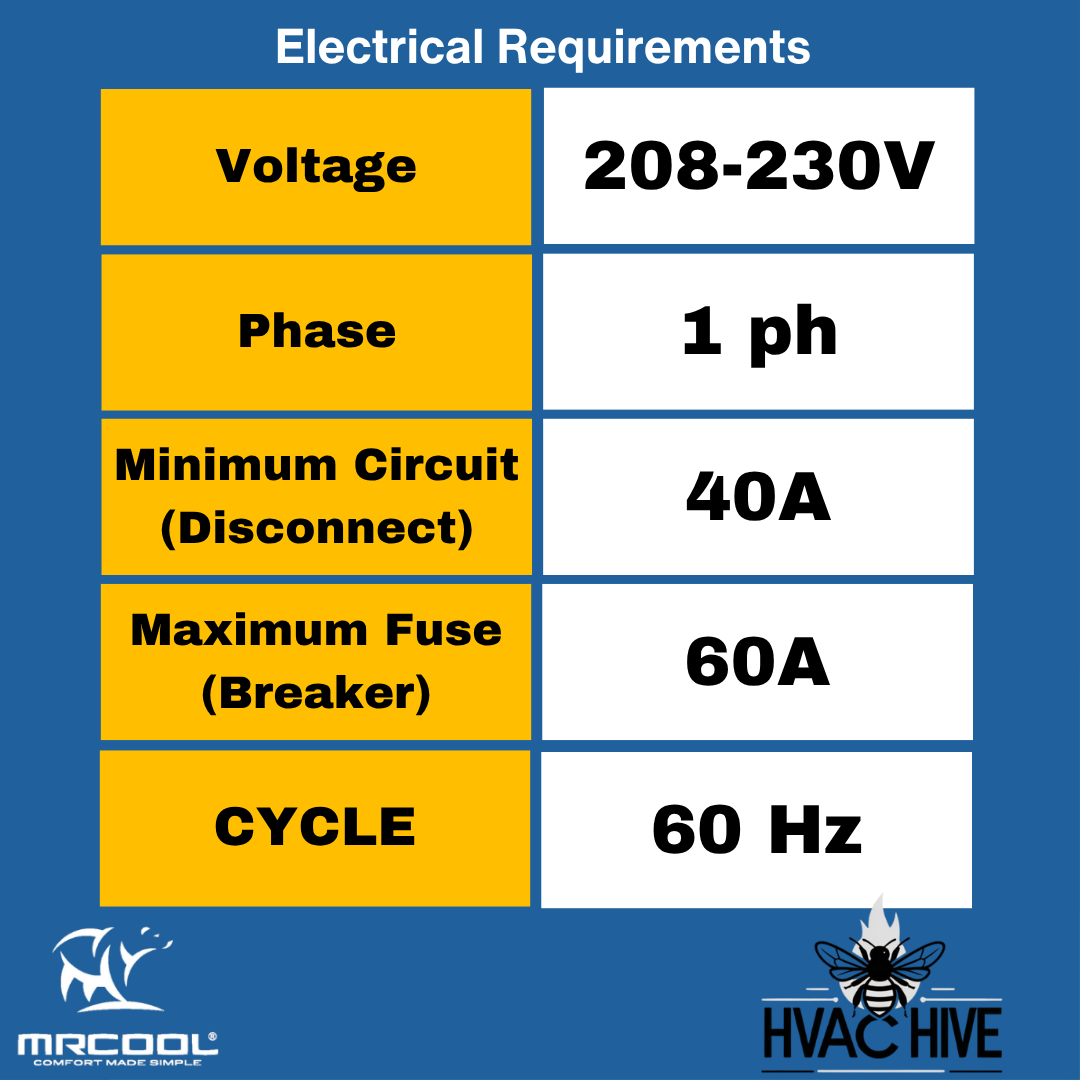

ELECTRICAL REQUIREMENTS
| Model | DIY-MULTI5-48HP230C |
|---|---|
| Type | 48K BTU Condenser |
| BTU | 48,000 BTU |
| Power Supply | 208-230V/60 Hz/1ph |
| Minimum Circuit (Disconnect) | 40.0 A |
| Maximum Fuse (Breaker) | 60.0 A |
SPECIFICATIONS & DIMENSIONS
| Condenser Specifications | |
|---|---|
| Product Dimensions | 37.48"W x 16.34"D x 52.48"H |
| Cooling Capacity | 48,000 BTU |
| Heating Capacity | 48,000 BTU |
| Zone Capacity | 5 |
| Cool Mode - Outdoor Operating Temperature Range | 5F ~ 122F |
| Heat Mode - Outdoor Operating Temperature Range | 5F ~ 75.2F |
| SEER | 20.5 |
| EER | 11 |
| Voltage | Requires a minimum of 208V-230V/60HZ/40-60A (please check your home meets this electrical requirement prior to purchase) |
| Registered Warranty | 7 Years Replacement on Compressor, 5 Years Parts |
| Air Handler 18K BTU | |
| Product Dimensions | 42.52"W x 8.90"D x 13.19"H |
| Mount Type | Wall |
| Cooling Capacity | 18,000 BTU |
| Heating Capacity | 18,000 BTU |
| Registered Warranty | 5 Years Parts |
| Modes | Auto - auto selects from Cool, Heat or Fan-Only Dry - dehumidify Cool Heat Fan Only Quiet Sleep |
| Air Handler 24K BTU | |
| Product Dimensions | 42.52"W x 8.90"D x 13.19"H |
| Mount Type | Wall |
| Cooling Capacity | 23,000 BTU |
| Heating Capacity | 25,000 BTU |
| Registered Warranty | 5 Years Parts |
| Modes | Auto - auto selects from Cool, Heat or Fan-Only Dry - dehumidify Cool Heat Fan Only Quiet Sleep |
| Line Set | |
| Length | 50 Feet |
| Liquid Line Size | 3/8" |
| Suction Line Size | 5/8" |
| Line Set | |
| Length | 50 Feet |
| Liquid Line Size | 1/4" |
| Suction Line Size | 1/2" |
INSTALLATION & GUIDES
Installation Manual
Product Brochure
Performance Specifications
Warranty
Energy Guide
AHRI Certificate
Shipping and Return
For Shipping & return information visit here
COVERAGE AREA
